Project
Control cabinet
assembly
Location
Mounting
=9014734
+CP01
Title
Emmie w. heater
Revised date
06 12
13
Next page
Page
2015-03-24

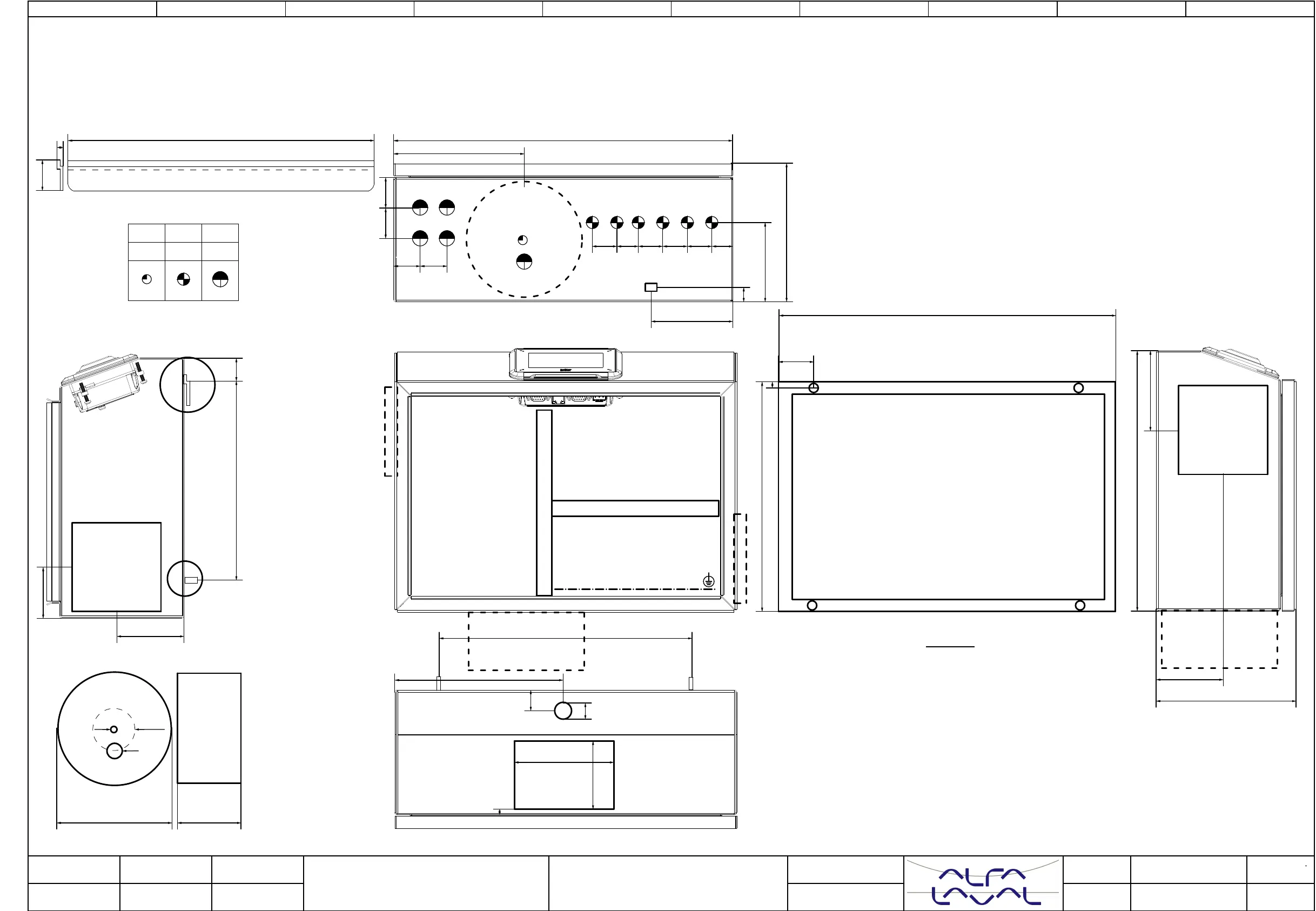

Mounting bracket
for hanging cabinet on toolbox.
Hatch
107
35 35
40 40
40
6
400
32 32 32 32 32 30
180
20
105
440
340
88
70
220
27
22
130 +-1
8
89 +-1
105
440
300
180
88
170
Welded studs 2xM4 + Wingnuts
for locking cabinet to frame
All meassurements in mm
260 30
330
151 83
OPTIONAL
R 10
R 4
R 27,5
Ø16 Ø20
4 5
Ø12
1
45
10
