9
Never touch the valve or the pipelines
when processing hot liquids or when
sterilizing.
1
2
3
Always observe the technical data (see
page 20).
5
4
6

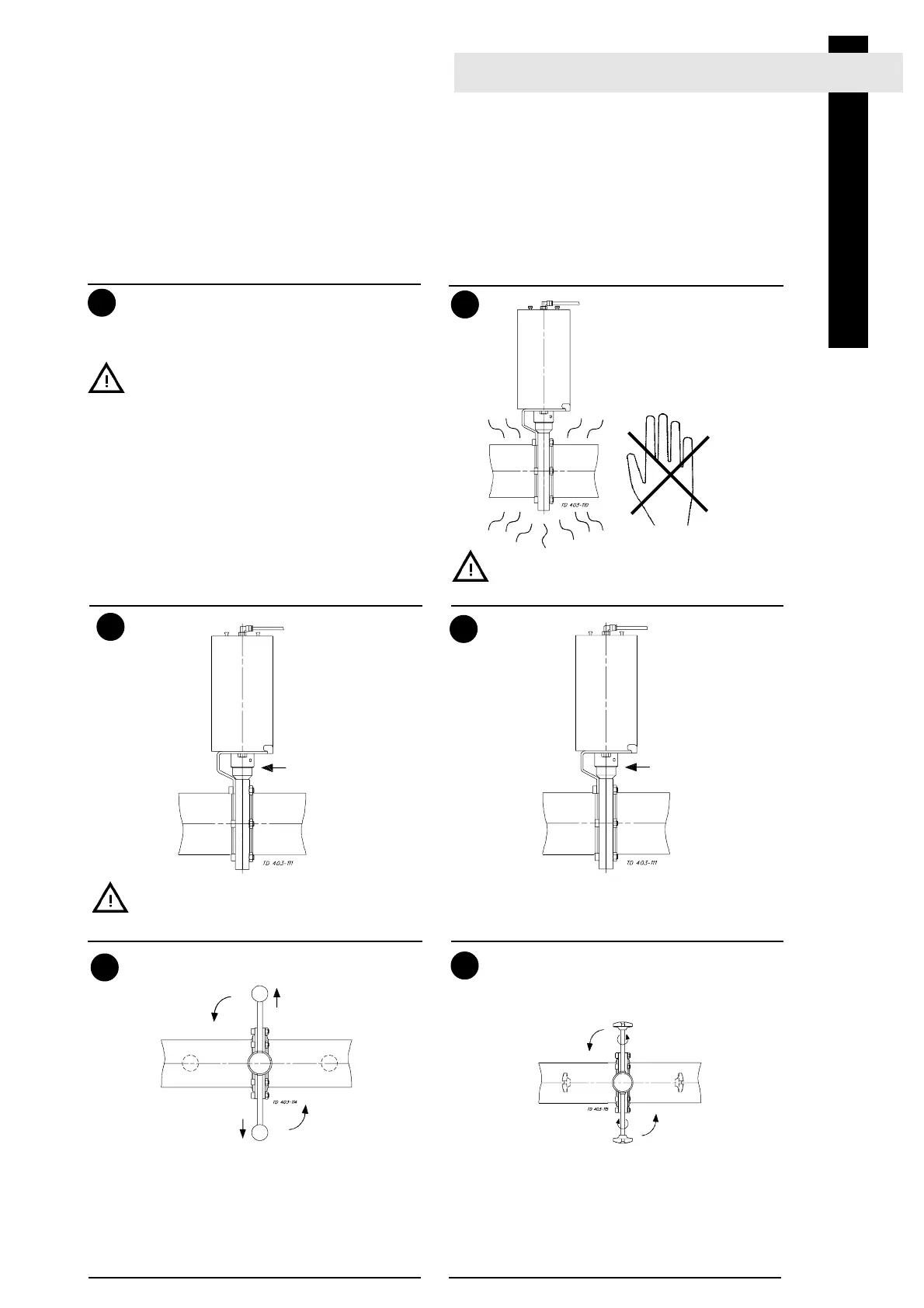

Operation
Study the instructions carefully and pay special
attention to the warnings!
1. Operation
The valve is automatically or manually operated by
means of an actuator or a handle.
NOTE!
We cannot be held responsible for incorrect
operation.
Air
Rotating parts!
Never touch the coupling between the
valve body and the actuator if compressed
air is supplied to the actuator.
Closed valve
Closed valve
Open valve
Open valve
Operation by means of standard handle:
1. Manual on/off operation.
2. Pull the handle outwards while rotating it.
NOTE!
This also applies for the Lockable Multiposition
Handle.
Air
Operation by means of actuator:
Automatic on/off operation by means of com-
pressed air.
Closed valve
Closed valve
Open valve
Open valve
Operation by means of regulating handle:
1. Manual flow regulation because of infinite
locking positions.
2. Loosen the handle, rotate it and tighten
again.
Burning
danger!
Rotating parts!
