5 Maintenance
Study the instructions carefully. The items refer to the parts list and service kits section.
Handle scrap correctly.
: Relates to the shaft seal.
5.3 Dismantling of pump/shaft seals

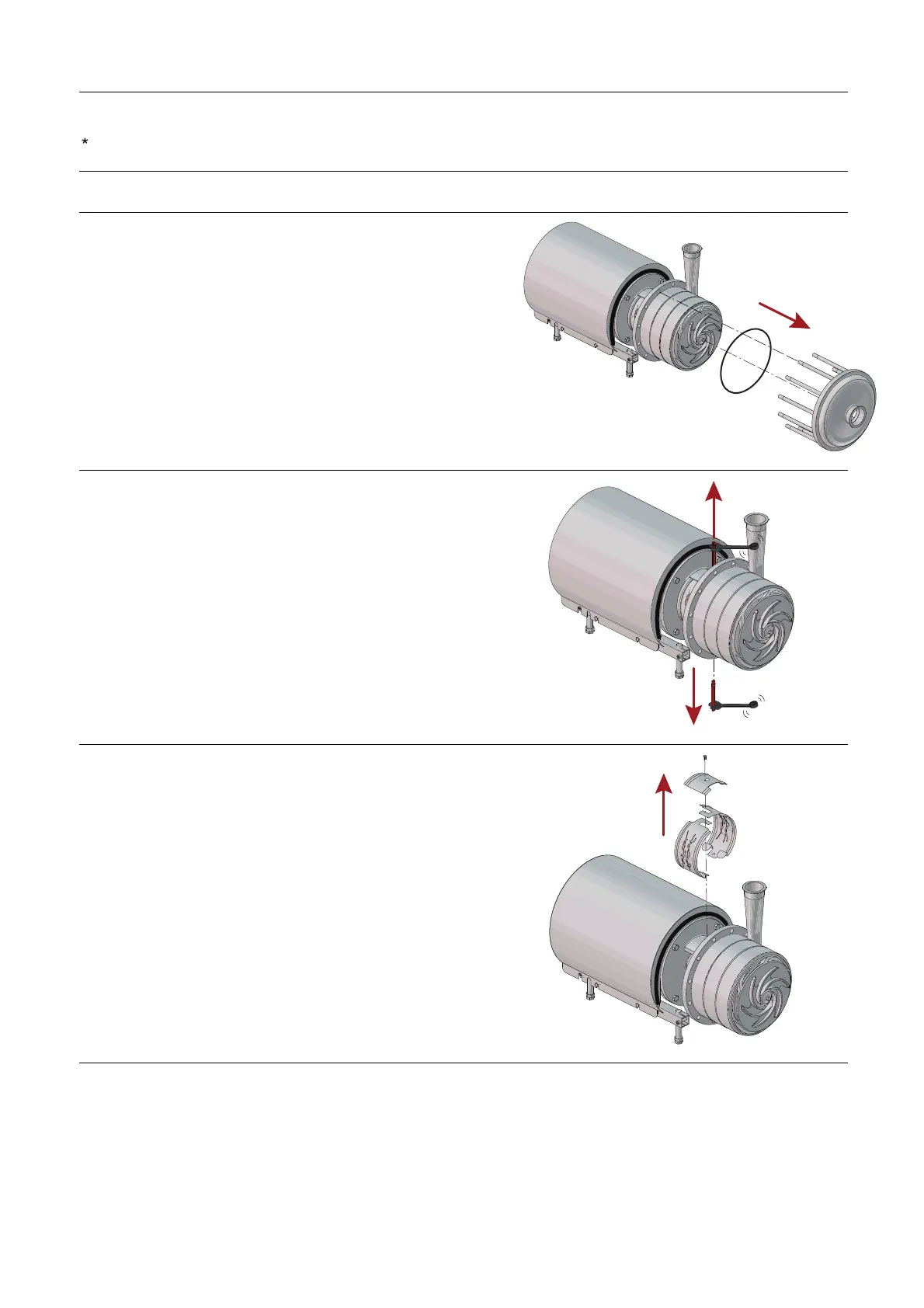

Step 1
Remove the cap nuts (29), washer(30),pumpcover(49)and
O-ring (32).
3003-0107
Step 2
Flushed shaft seal:
Unscrew tubes (25) using a spanner..
3003-0108
Step 3
Remove screw (16) and adaptor guard (17).
3003-0109
