5 Maintenance
Study the instructions carefully. The items refer to the parts list and service kits section.
Handle scrap correctly.
: Relates to the shaft seal.

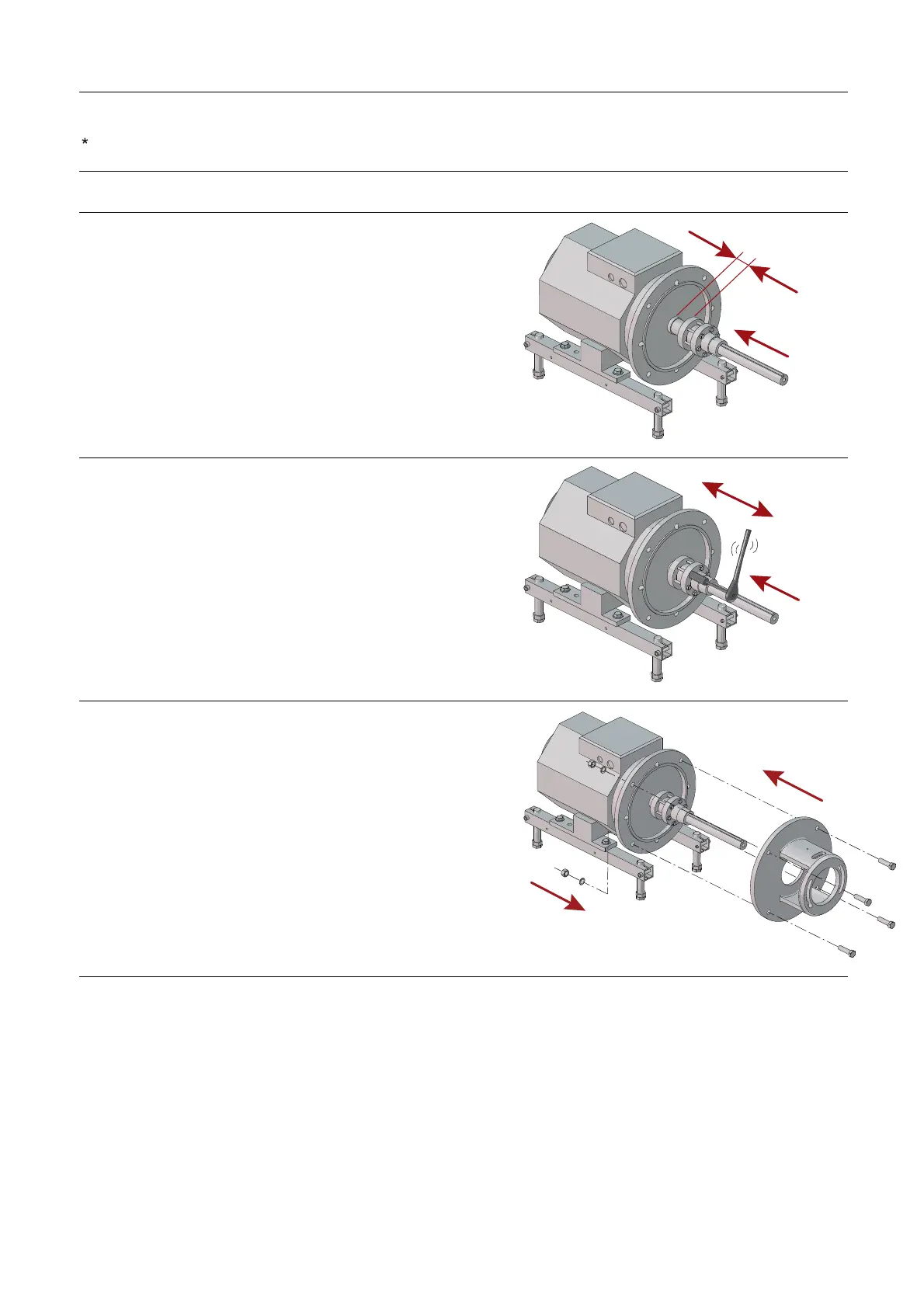

5.4 Assembly of Pump/Assembly of Shaft Seal - LKH-110
Step 1
1. Fit the compression rings (9,13), washers (15a) and the screws
(15) on stub shaft (11).
2. Fit the stub shaft on the motor shaft.
3. Check the clearance between the end of the stub shaft and
the motor flange.
* 10-20 mm
(0.394-0.787 inch)
3003-0123
*
Step 2
1. Tighten the screws (15) evenly.
2. Ensure that stub shaft (11) can be moved on the motor shaft.
3003-0124
Step 3
Fit adaptor (18), screws (19), washers (8) and nuts (7).
3003-0125
31
