5 Maintenance
Study the instructions carefully. The items refer to the parts list and service kits section.
Handle scrap correctly.
: Relates to the shaft seal.

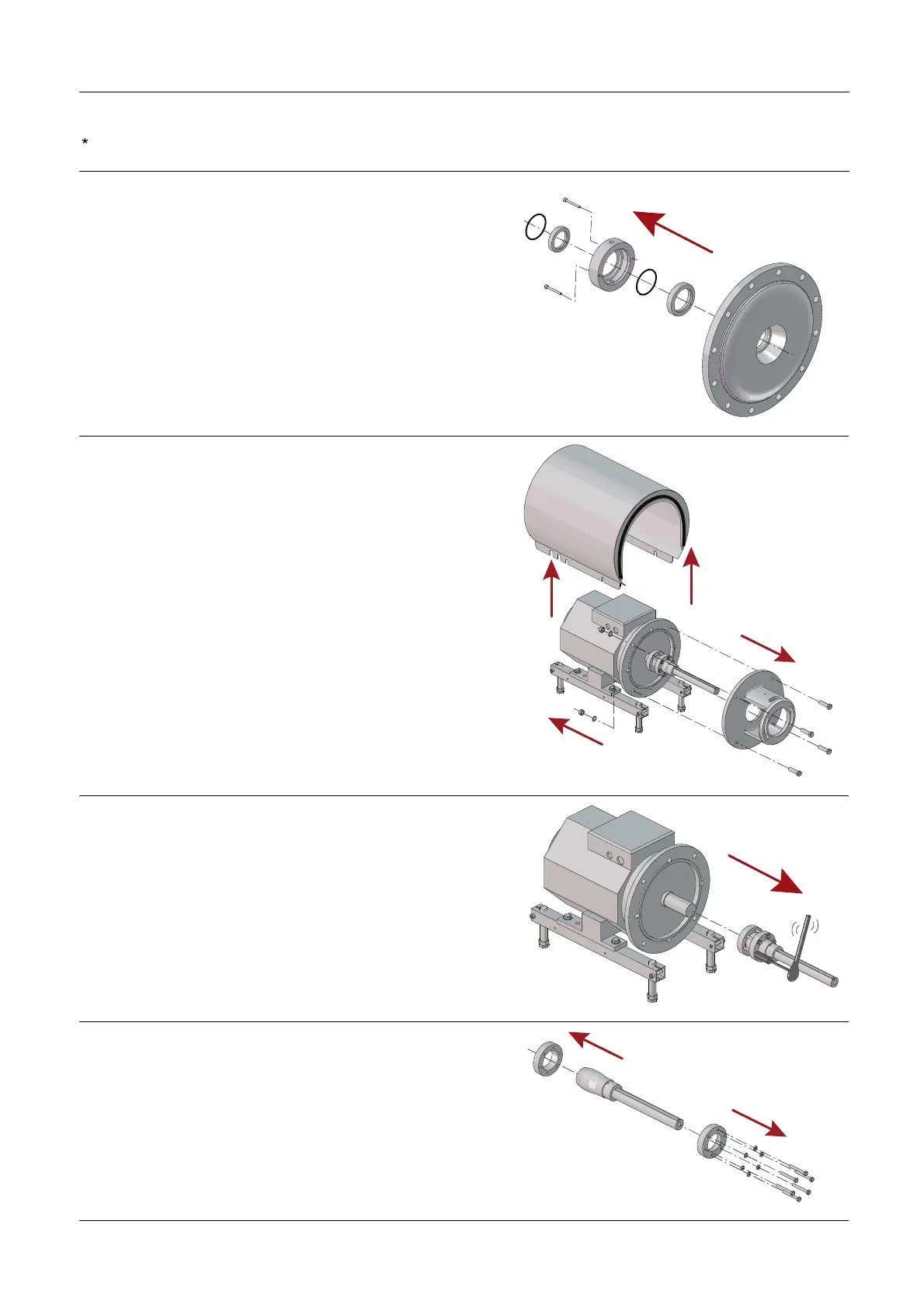

Step 12
Flushed shaft seal:
1. Remove the screws (24) and seal housing (26).
2. Remove lip seal (28) and O-ring (27) from the seal housing.
3. Remove seal ring (23) from stub shaft (11).
4. Remove O-ring (22) from the seal ring.
3003-0119
Step 13
1. Remove scroud (2).
2. Remove nuts (7), washers (8), screws (19) and adaptor (18).
3003-0120
Step 14
1. Loosen the screws (15).
2. Remove stub shaft (11) and the compression rings (9,13).
3003-0121
Step 15
Remov
e the screws (15), washers (15a) and the compression
rings (9,13).
3103-0122
30
