5 Maintenance
Study the instructions carefully. The items refer to the parts list and service kits section.
Lubricate the rubber seals before fitting them.
: Relates to the shaft seal.

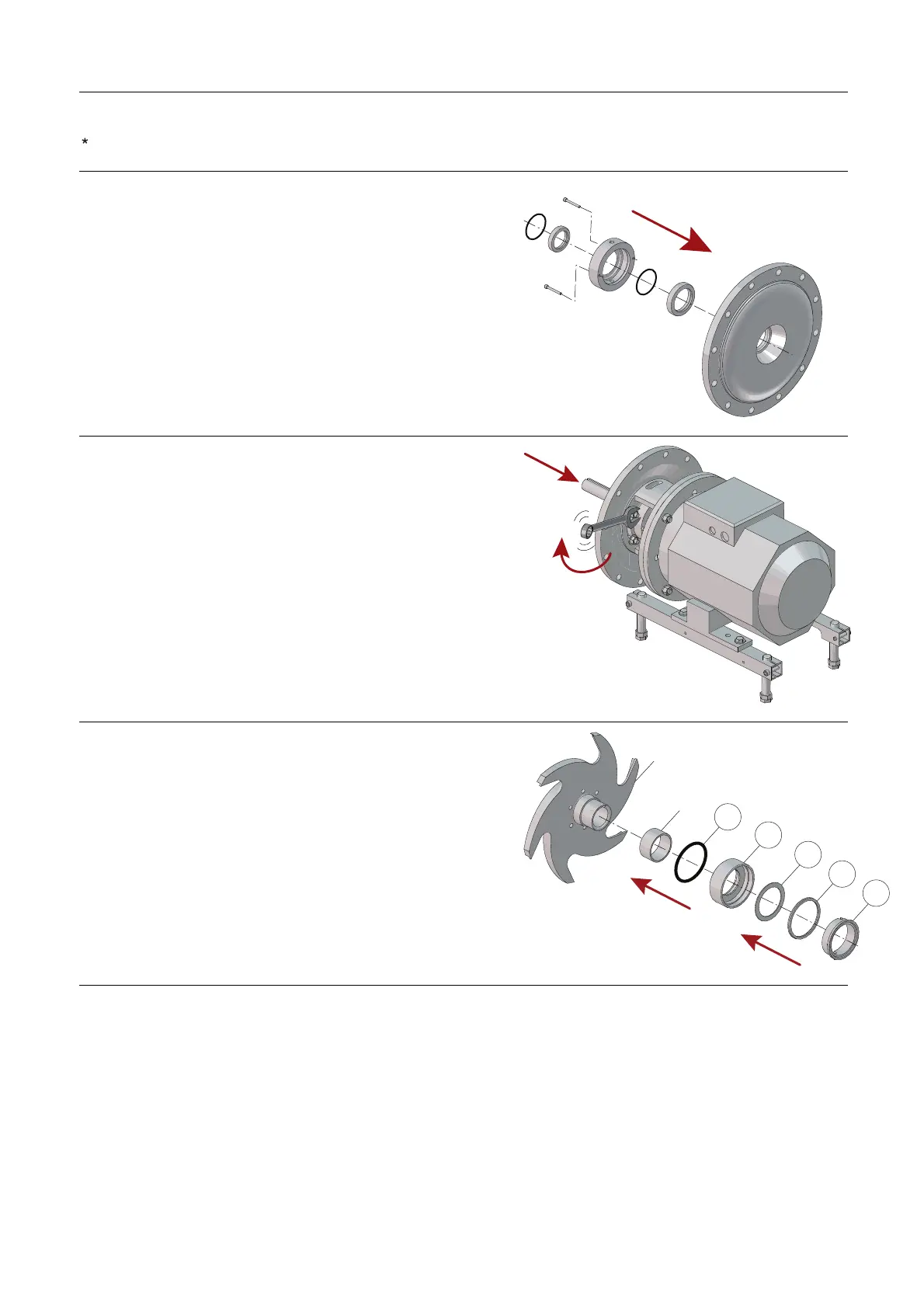

Step 5
Flushed shaft seal:
1. Fit lip seal (28) in seal housing (26).
2. Fit O-ring (27) in the seal housing.
3. Fit the housing on back plate (31) and tighten the screws (24).
4. Fit seal ring (23) with O-ring (22) on stub shaft (11).
3003-0131
Step 6
Fit back plate (31), washers (21) and nuts (20).
3003-0126
Step 7
1. Assemble the rotating part of the shaft seal.
2. Fit the seal part and the space ring on impeller (40).
CAUTION!
Ensure that the driver in the rotating seal housing enters the notch
in the rotating seal ring.
3003-0127
35
40
36
37
38a
38
39
37
