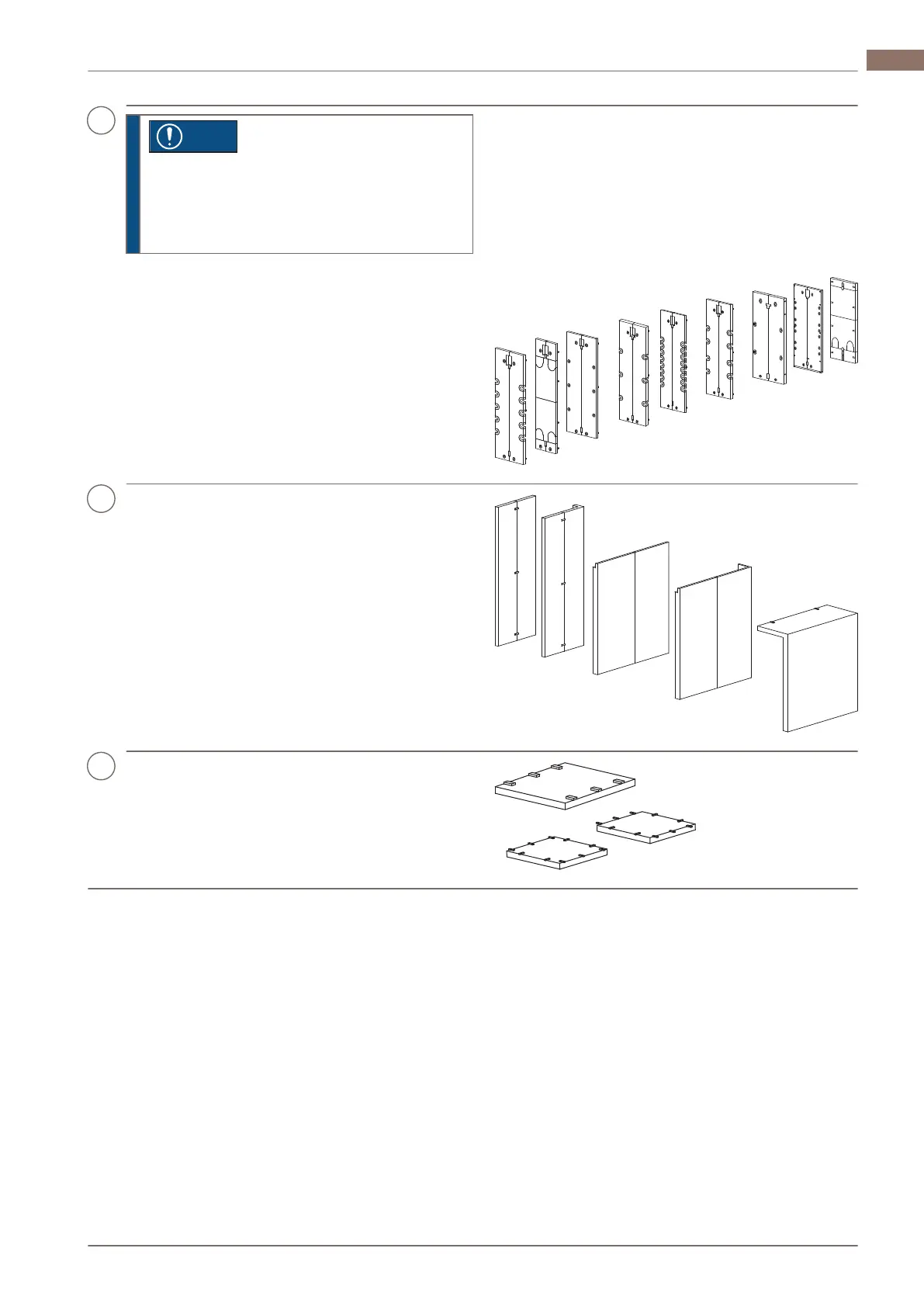

NOTE
This step is only valid for insulation
designs with rear insulation panel parts.
Go to the next step if you do not have these
parts for your gasketed plate heat exchanger.
Assemble the rear insulation panel parts
starting from the bottom.
5
Assemble the right hand side insulation
panel.
6
Assemble the top insulation panel.
200003991-1-EN-GB 27
