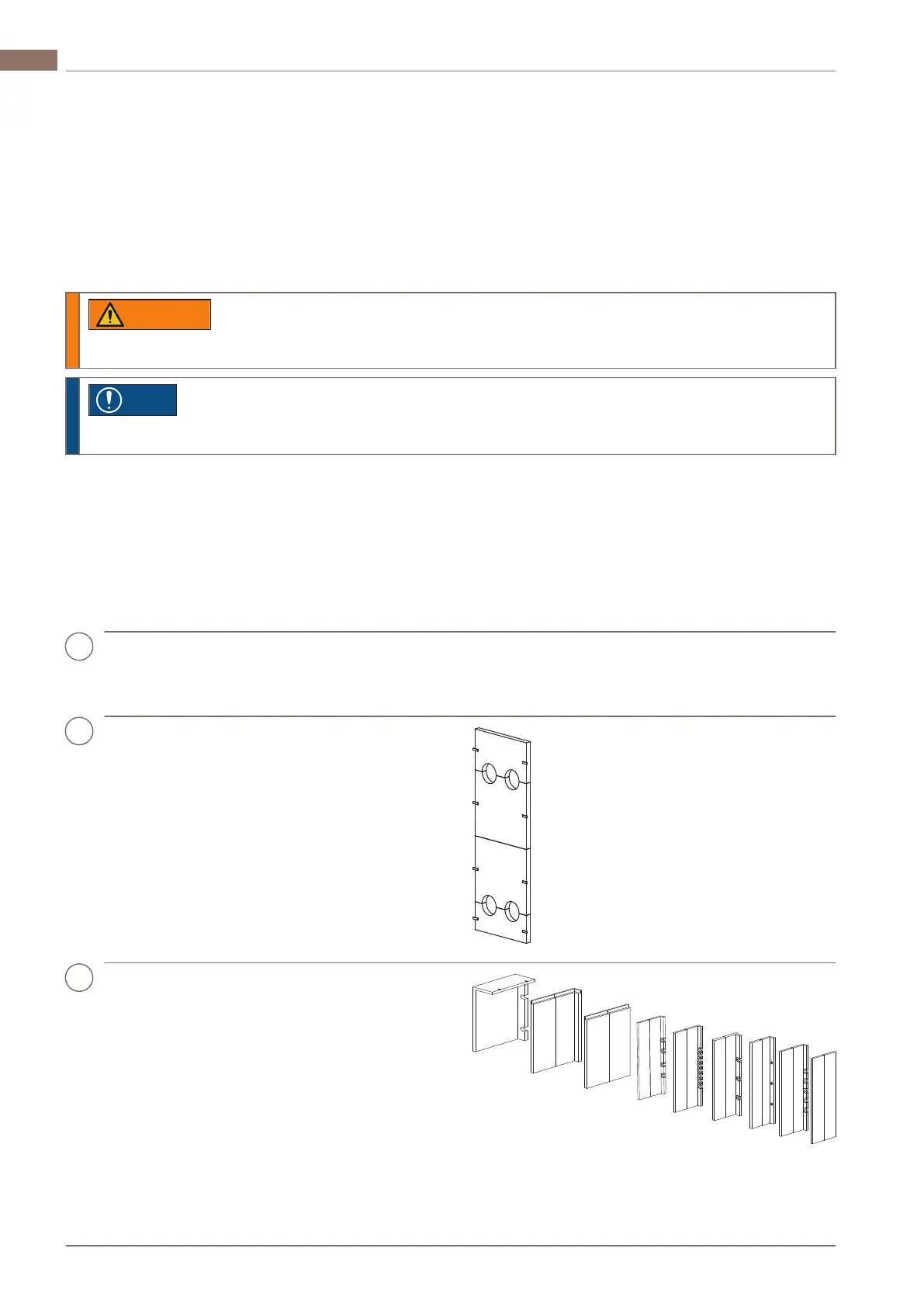

7.3 Insulation for large units
This section is only valid for insulation intended for large units. See Chapter
Introduction for sizing. On the rear insulation panel of large sized insulations,
cut out holes for tightening bolts and carrying bar.
On the rear insulation panel of medium/large sized insulations, cut out holes
for tightening bolts and carrying bar.
7.3.1
Installation
WARNING Risk of personal injury.
Wear personal protective equipment when handling the insulation boards.
NOTE
It is recommended to be two persons when assemble the insulation.
The gasketed plate heat exchanger shown in the illustrations is just an example of a product where
the large insulation is used.
The piping is not shown in the illustrations.
The latches are not shown in the illustrations because the amount and position varies between the
different gasketed plate heat exchanger models.
Lock the latches between the boards when it is suitable in the assemble sequence.
1
Install the plate heat exchanger and connect
all piping according to separate
documentation and publications.
2
Assemble the front insulation panel parts
starting from the bottom.
3
Assemble the left hand side insulation panel.
200003991-1-EN-GB26
7 InstallationEN
