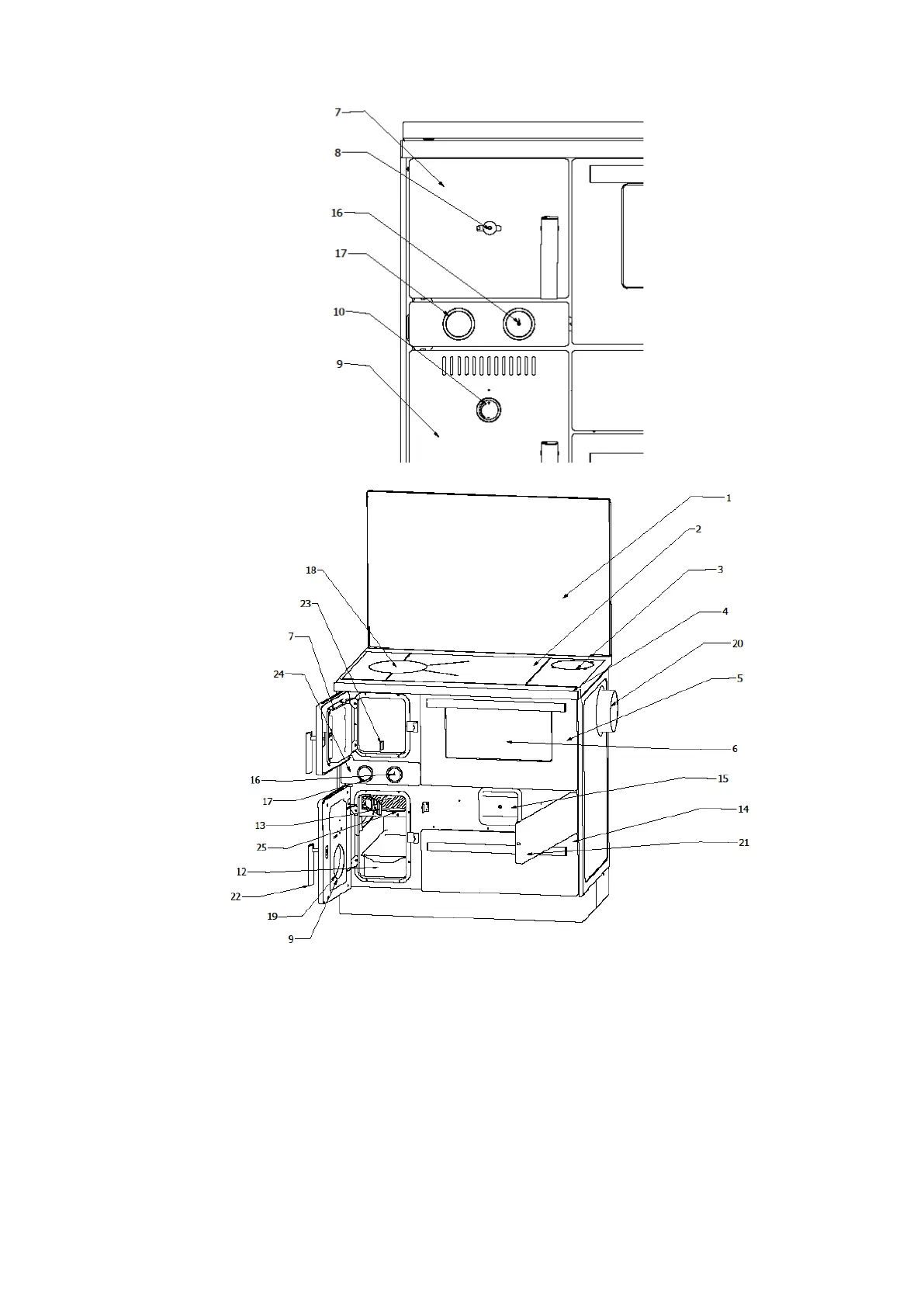

3. APPEARANCE AND STRUCTURE OF A SOLID FUEL WITH A FLOOR
HEATING BOILER (fig.1)
Figure 1
1. Solid fuel cover
2. Cooking panel (hob)
3. Cooking panel extension
4. Butterfly knob for opening and closing
5. Oven door (oven)
6. Oven thermometer
7. Firebox door
8. Secondary air regulator knob
9. Ashtray door
10. Thermostat knob (combustion regulator)
11. Rod for shaking ash
12. Ashtray (ash box)
13. Ember holder
14. Draving for wood
15. Cover for cleaning
16. Manometer
17. Thermometer
18. Hob cover
19. Thermostat flap
20. Flue extension
21. Cover of opening for cleaning
22. Handrail
23. Grate carrier
24. Additional cover
25. Rod bracke
