TIMY3 - General
Page 29

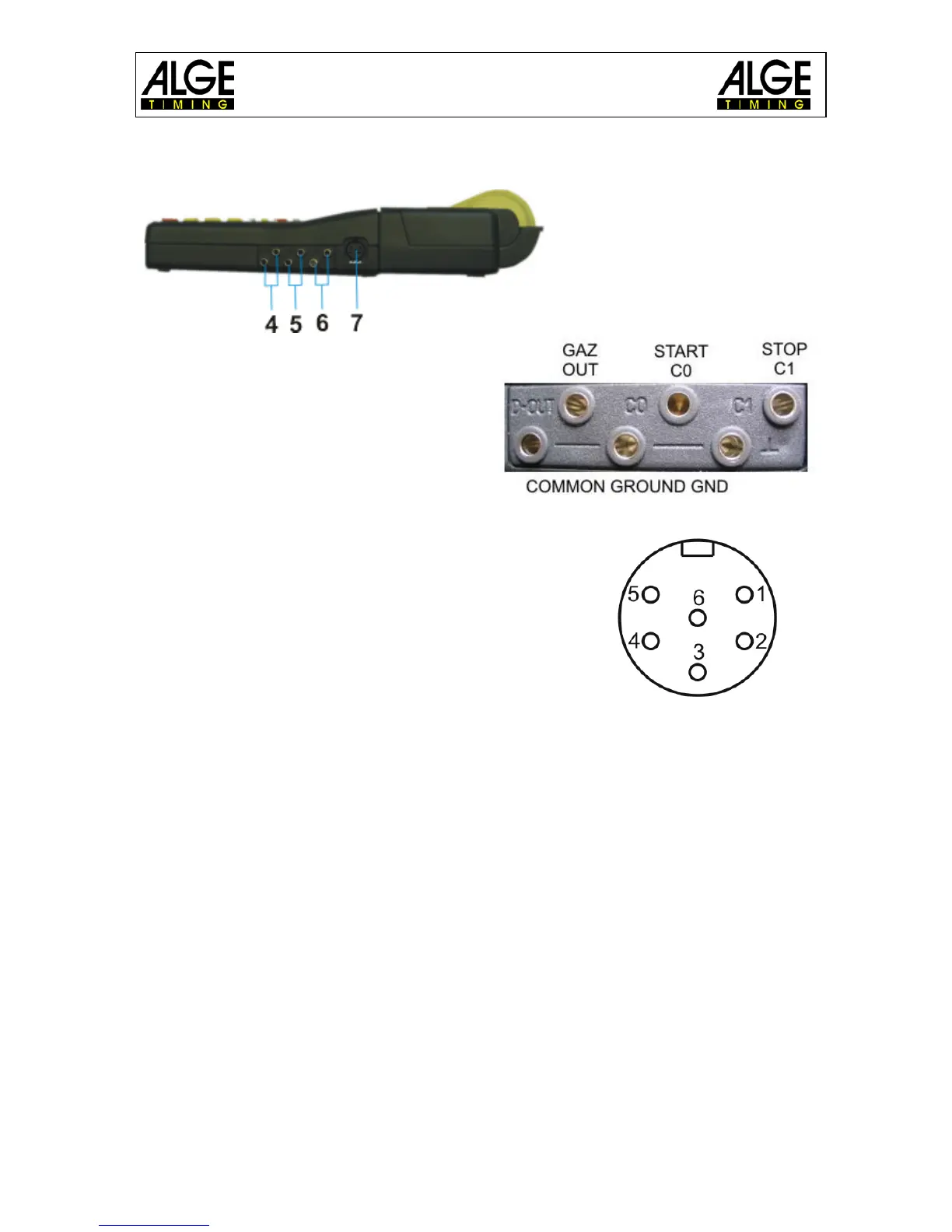

Banana plugs for display board (4)
Banana plugs for start channel C0 (5)
Banana plugs for stop channel C1 (6)
Photocell socket (7)
Pin assignment:
1 ............ c0 .......... start channel
2 ............ c1 .......... stop channel
3 ............ GND...... common ground
4 ............ +Ua ...... power supply out 8-22 VDC
5 ............ +5V ...... stabilized voltage out (+5 VDC)
6 ............ c2 .......... intermediate time channel
