Algo 8198 - Multicast Zone Paging Methods; DTMF Selectable Zone Paging; Direct Zone Paging via Speed Dial

8198 SIP Ceiling Speaker PoE+
Document 90-00109 Algo Communication Products Ltd (604) 454-3792
2020-09-21 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com
Page 30 www.algosolutions.com

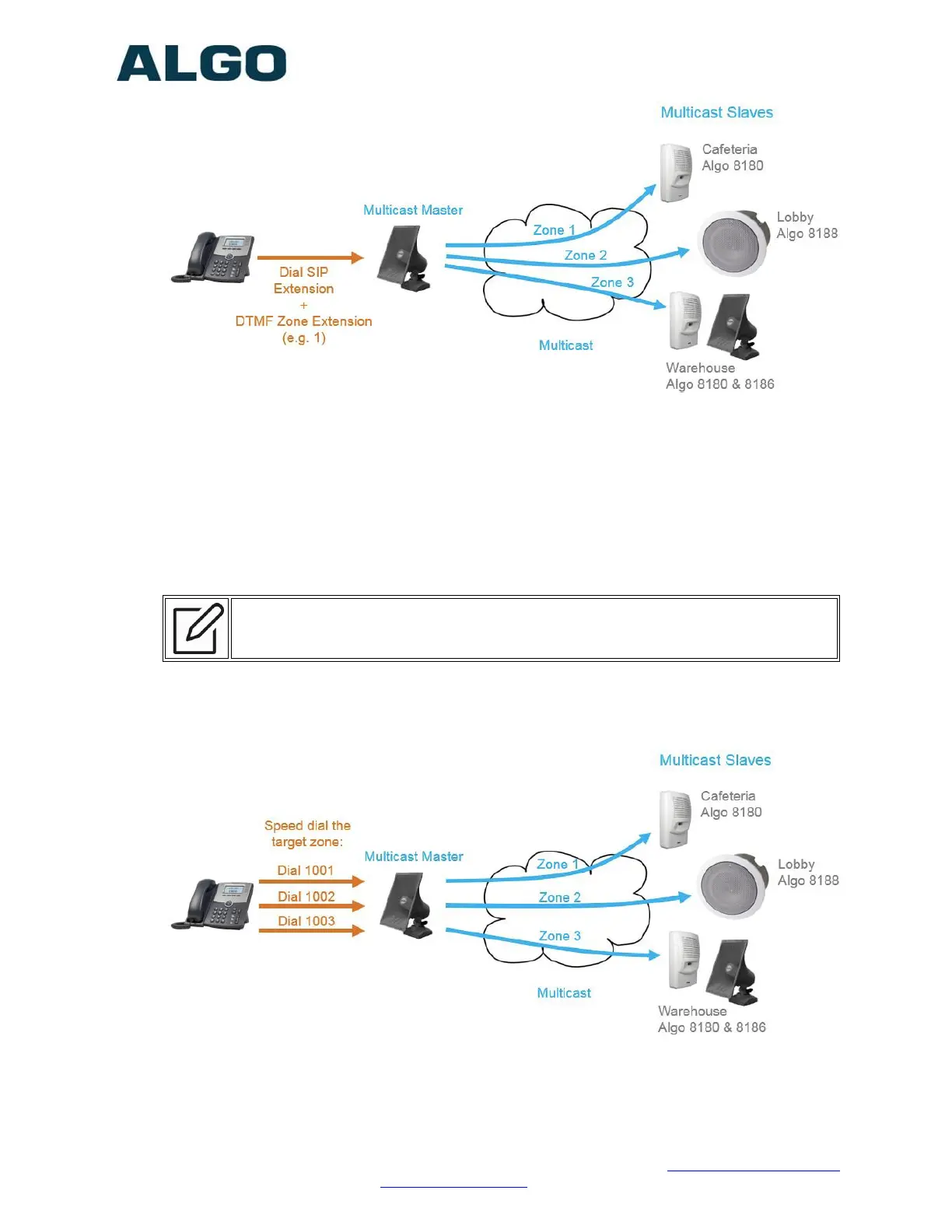

In ‘DTMF Selectable Mode’, to page, dial the SIP extension of the master device: ####,
then dial the desired DTMF page zone (e.g. 1, 2, etc.) on the keypad when prompted.
1. Press DTMF Extension 9 for Priority Call
2. Press DTMF Extension 0 (or 8) for All Call
3. Press DTMF Extension 1 for Zone 1…
4. Press DTMF Extension *10 for Zone 10
5. Press DTMF Extension *11 for Zone 11…
Note: DTMF codes for zones 10 and higher start with an “*”
Alternatively, multiple SIP extensions can be registered on the Master device. Each
extension is mapped to a unique zone, allowing zones to be called directly (for instance
from speed-dial keys) without the use of DTMF. See Additional Features > More Page
Extensions tab.
Zone Selection Tone
Only visible when ‘Zone Selection Mode’ is set to ‘DTMF Selectable Zone’. The tone
played over the phone to prompt the user to select a zone to multicast to.
