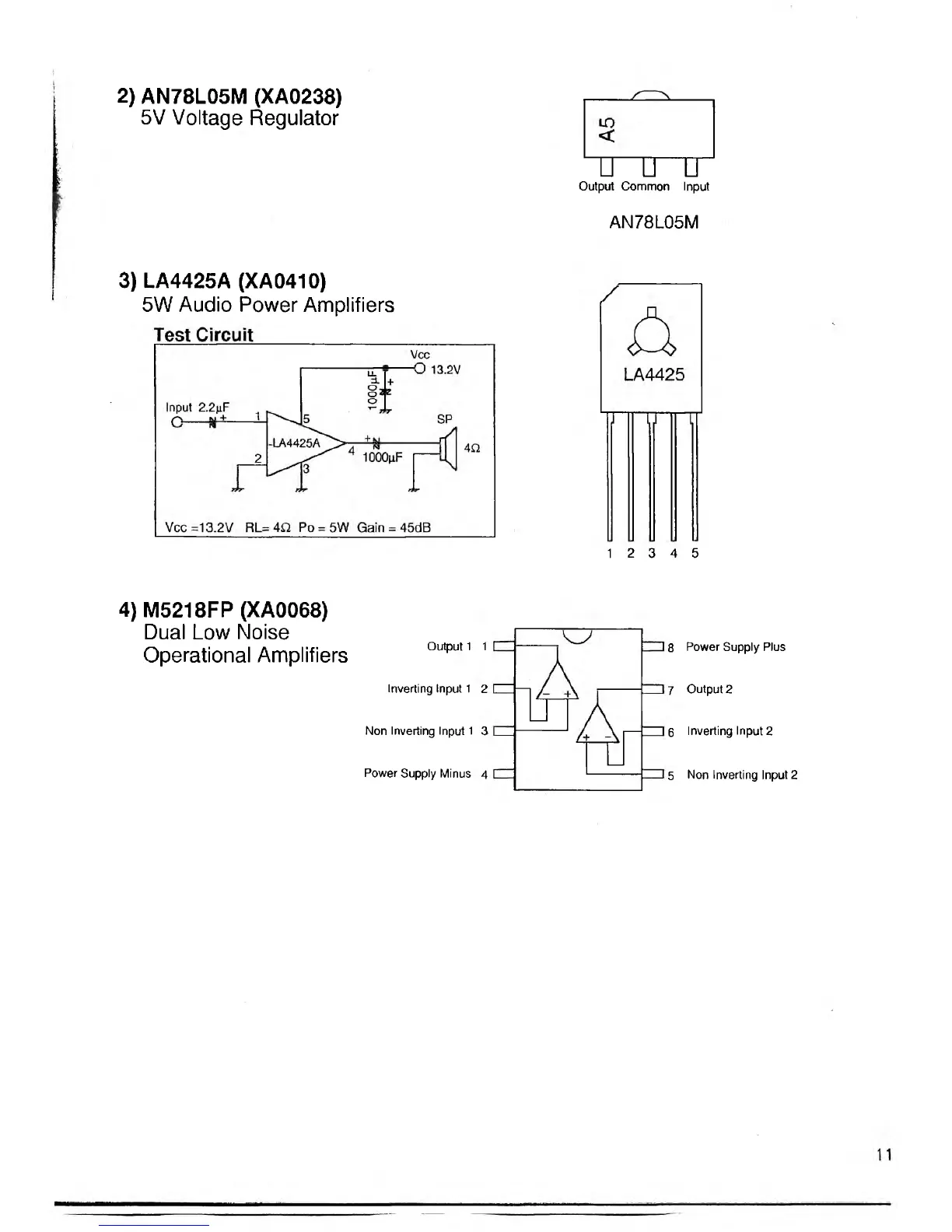

Alinco DR-140TE2 - AN78 L05 M 5 V Voltage Regulator Data; LA4425 A 5 W Audio Power Amplifier Data; M5218 FP Dual Low Noise Op-Amp Data

2 ) AN78L05M (XA0238)
5V Voltage Regulator
u u u
Output Common Input
AN78L05M
3) LA4425A (XA0410)
5W Audio Power Amplifiers
1 2 3 4 5
4) M5218FP (XA0068)
Dual Low Noise
Operational Amplifiers
Output 1 1
Inverting Input 1 2
Non Inverting Input 1 3
Power Supply Minus 4
8 Power Supply Plus
7 Output 2
6 Inverting Input 2
5 Non Inverting Input 2
