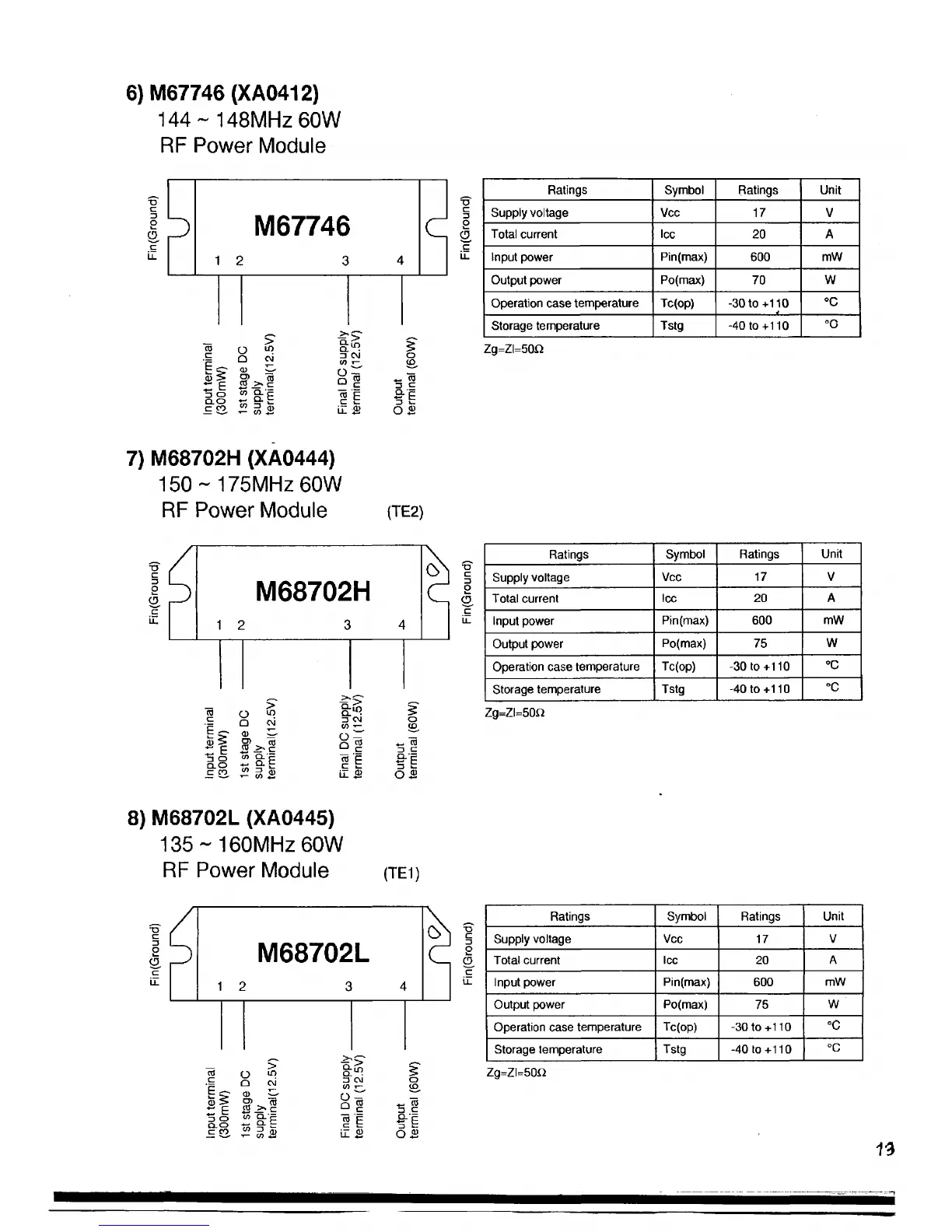

Alinco DR-140TE2 - M67746 RF Power Module Data; M68702 H RF Power Module Data; M68702 L RF Power Module Data

6) M67746 (XA0412)
144- 148MHz 60W
RF Power Module
*o
c
3
D
M67746
12 3 4
C
>
CO
o
uq
c
□
cvi
I ?
a>
O)
Z E
3 O
«
to
c
R-e
CLO
4-*
Q. ^
C CO
CO
— * >
9-in
Q ^
s !
il £
~o
c
3
$
o
C O
ro
D C
f i
o .£
Ratings
Symbol
Ratings
Unit
Supply voltage Vcc 17
V
Total current
Icc 20
A
Input power
Pin (max)
600
mW
Output power
Po(max)
70
W
Operation case temperature
Tc(op)
-30 t o +110
°C
Storage temperature Tstg
-40 t o +110
°0
Zg=ZI=50Q
7) M68702H (XA0444)
150- 175MHz 60W
RF Power Module
(TE2)
Ratings
Symbol Ratings
Unit
Supply voltage
Vcc
17
V
Total current
Icc
20 A
Input power
Pin (max)
600
mW
Output power
Po(max)
75
W
Operation case temperature Tc(op)
-30 to +110
°C
Storage temperature
Tstg -40 t o +110
°C
Zg=Z I=50ii
8) M68702L (XA0445)
135- 160MHz 60W
RF Power Module
(TE1)
Ratings
Symbol
Ratings
Unit
Supply voltage
Vcc
17
V
Total current Icc 20
A
Input power
Pin (max) 600
mW
Output power Po(max) 75
W
Operation case temperature
Tc(op) -30 t o +110
°C
Storage temperature Tstg
-40 t o +110
°C
Zg=ZI=50i2
