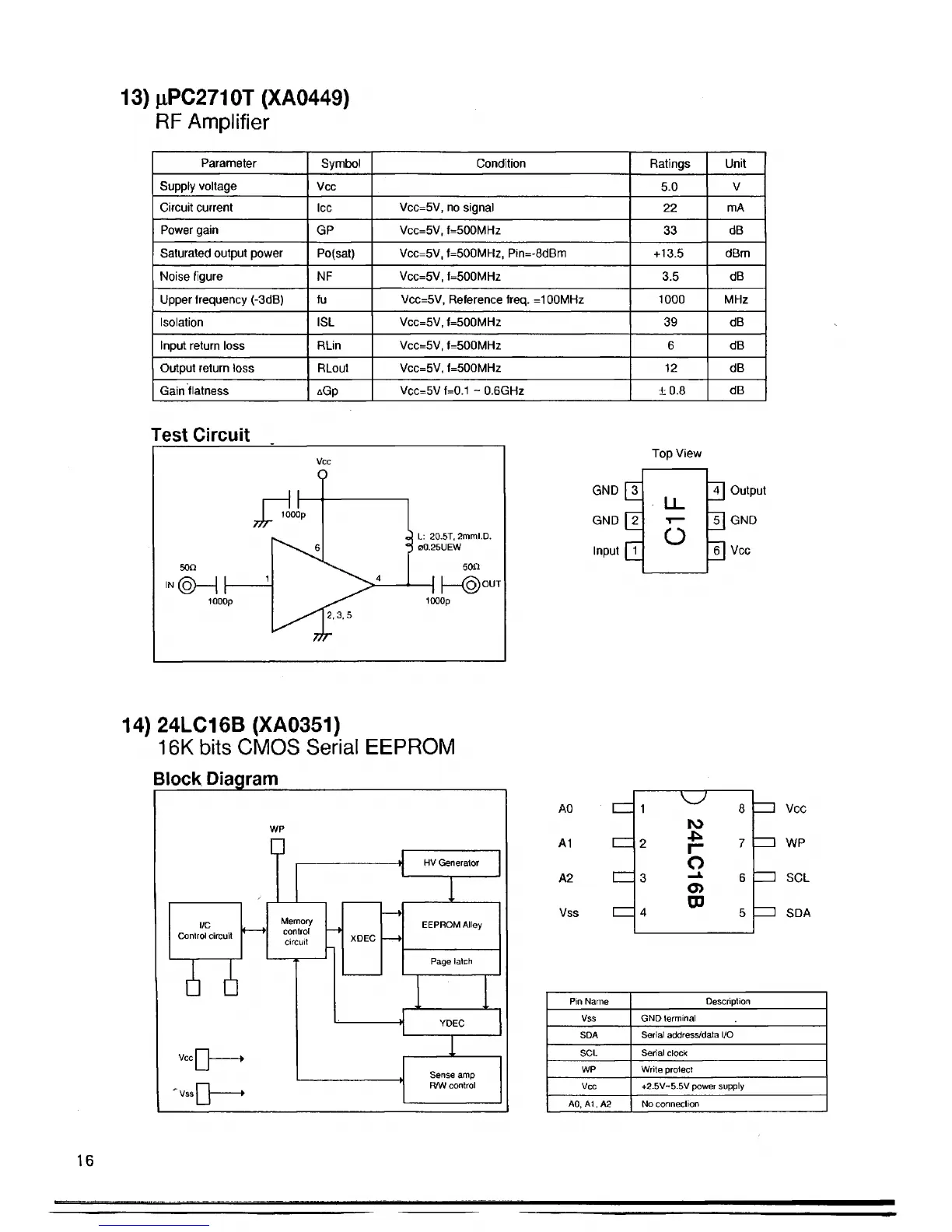

13) nPC2710T (XA0449)
RF Amplifier
Parameter
Symbol
Condition
Ratings
Unit
Supply voltage
Vcc
5.0
V
Circuit current
Icc
Vcc=5V, no signal
22
mA
Power gain
GP
Vcc=5V, f=500MHz
33
dB
Saturated output power
Po(sat)
Vcc=5V, f=500MHz, Pin=-8dBm
+13.5
dBm
Noise figure
NF Vcc=5V, f=500MHz
3.5
dB
Upper frequency (-3dB)
fu
Vcc=5V, Reference freq. =100MHz
1000
MHz
Isolation ISL
Vcc=5V, f=500MHz
39
dB
Input return loss
RLin
Vcc=5V, f=500MHz 6 dB
Output return loss RLout Vcc=5V, f=500MHz
12
dB
Gain flatness aGp
Vcc=5V f=0.1 ~ 0.6GHz ± 0 .8
dB
Test Circuit ______
Vcc
Top View
GND
GND Q T
Input
O
Output
1F| GND
Vcc
14) 24LC16B (XA0351)
16K bits CMOS Serial EEPROM
Block Diagram __________________
WP
AO
n z
1
IO
8
H3
Vcc
A1 \z z
2
-1^
1“
7
z n
WP
A2
n z 3
O
o>
6
Z Z ]
SCL
Vss
4
CD
5
Z Z i
SDA
Pin Name
Description
Vss
GND terminal
SDA
Serial address/data I/O
SCL Serial clock
WP W rite protect
Vcc
+2.5V-5.5V power supply
A0, A1, A2
No connection
