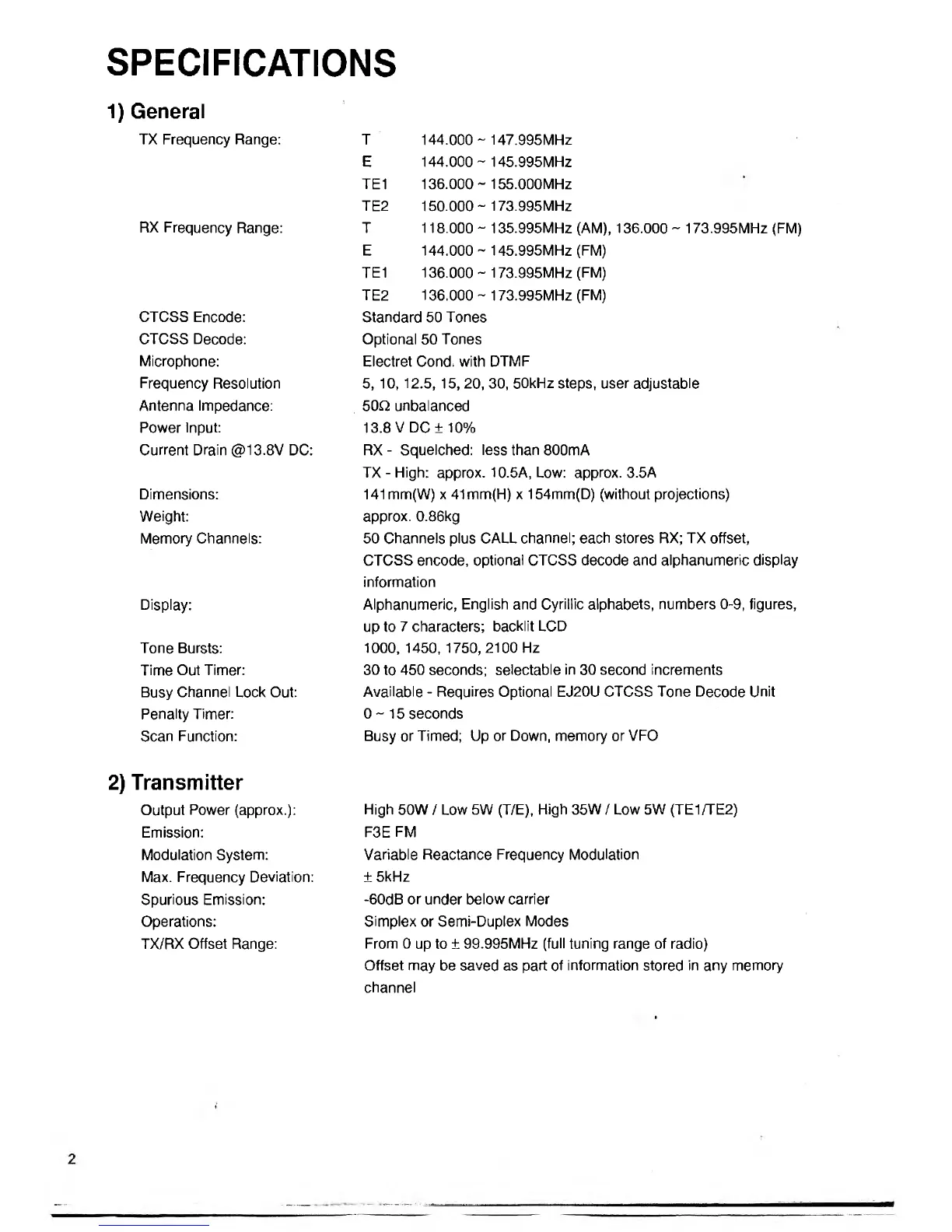

SPECIFICATIONS
1) General
TX Frequency Range:
RX Frequency Range:
CTCSS Encode:
CTCSS Decode:
Microphone:
Frequency Resolution
Antenna Impedance:
Power Input:
Current Drain @13.8V DC:
Dimensions:
Weight:
Memory Channels:
Display:
Tone Bursts:
Time Out Timer:
Busy Channel Lock Out:
Penalty Timer:
Scan Function:
2) Transmitter
Output Power (approx.):
Emission:
Modulation System:
Max. Frequency Deviation:
Spurious Emission:
Operations:
TX/RX Offset Range:
T 144.000- 147.995MHz
E 144.000- 145.995MHz
TE1 136.000- 155.000MHz
TE2 150.000- 173.995MHz
T 118.000 - 135.995MHz (AM), 136.000 - 173.995MHz (FM)
E 144.000 - 145.995MHz (FM)
TE1 136.000 - 173.995MHz (FM)
TE2 136.000 - 173.995MHz (FM)
Standard 50 Tones
Optional 50 Tones
Electret Cond* with DTMF
5, 10, 12.5, 15, 20, 30, 50kHz steps, user adjustable
50Q unbalanced
13.8 V DC ± 10%
RX - Squelched: less than 800mA
TX - High: approx. 10.5A, Low: approx. 3.5A
141mm(W) x 41mm(H) x 154mm(D) (without projections)
approx. 0.86kg
50 Channels plus CALL channel; each stores RX; TX offset,
CTCSS encode, optional CTCSS decode and alphanumeric display
information
Alphanumeric, English and Cyrillic alphabets, numbers 0-9, figures,
up to 7 characters; backlit LCD
1000, 1450, 1750, 2100 Hz
30 to 450 seconds; selectable in 30 second increments
Available - Requires Optional EJ20U CTCSS Tone Decode Unit
0-15 seconds
Busy or Timed; Up or Down, memory or VFO
High 50W / Low 5W (T/E), High 35W / Low 5W (TE1/TE2)
F3E FM
Variable Reactance Frequency Modulation
± 5kHz
-60dB or under below carrier
Simplex or Semi-Duplex Modes
From 0 up to ± 99.995MHz (full tuning range of radio)
Offset may be saved as part of information stored in any memory
channel
