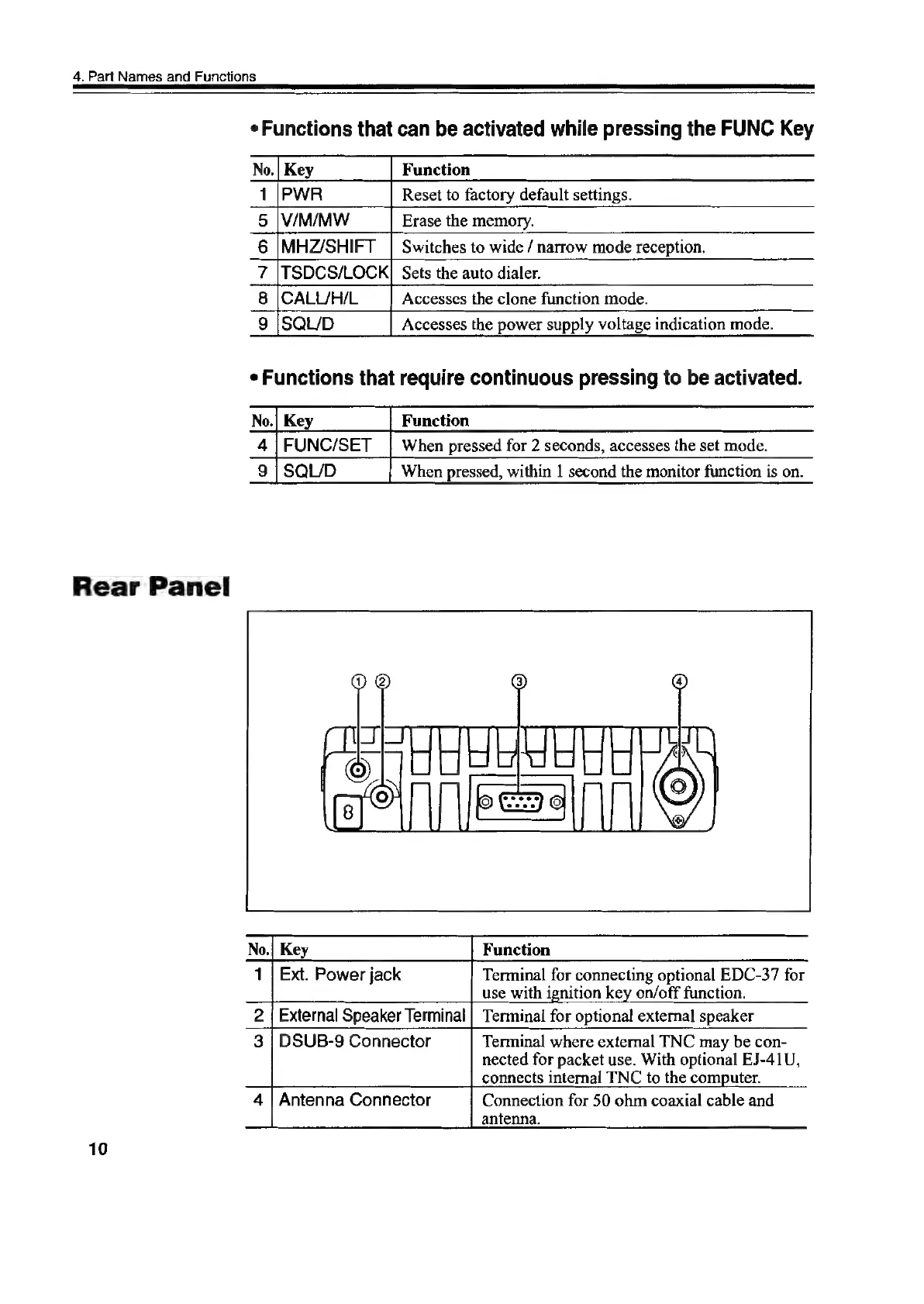

4. Part Names and Functions
Rear Panel
10
«Functions that can be activated while pressing the FUNC Key
Function
Reset to factory default settings.
V/M/MW
MHZ/SHIFT
TSDCS/LOCK
CALU/H/L
SQL/D
Erase the memory.
Switches to wide / narrow mode reception.
Sets the auto dialer.
Accesses the clone function mode.
Accesses the power supply voltage indication mode.
When pressed for 2 seconds, accesses the set mode.
TFUNGISET_|
TsauD__
When pressed, within 1 second the monitor function is on.
Function
Terminal for connecting optional EDC-37 for
use with ignition key on/off function.
Terminal for optional external speaker
1 | Ext. Power jack
2 | External Speaker Terminal
3 | DSUB-9 Connector
Antenna Connector
Terminal where external TNC may be con-
nected for packet use. With optional EJ-41U,
connects internal TNC to the computer.
Connection for 50 ohm coaxial cable and
antenna.
4
