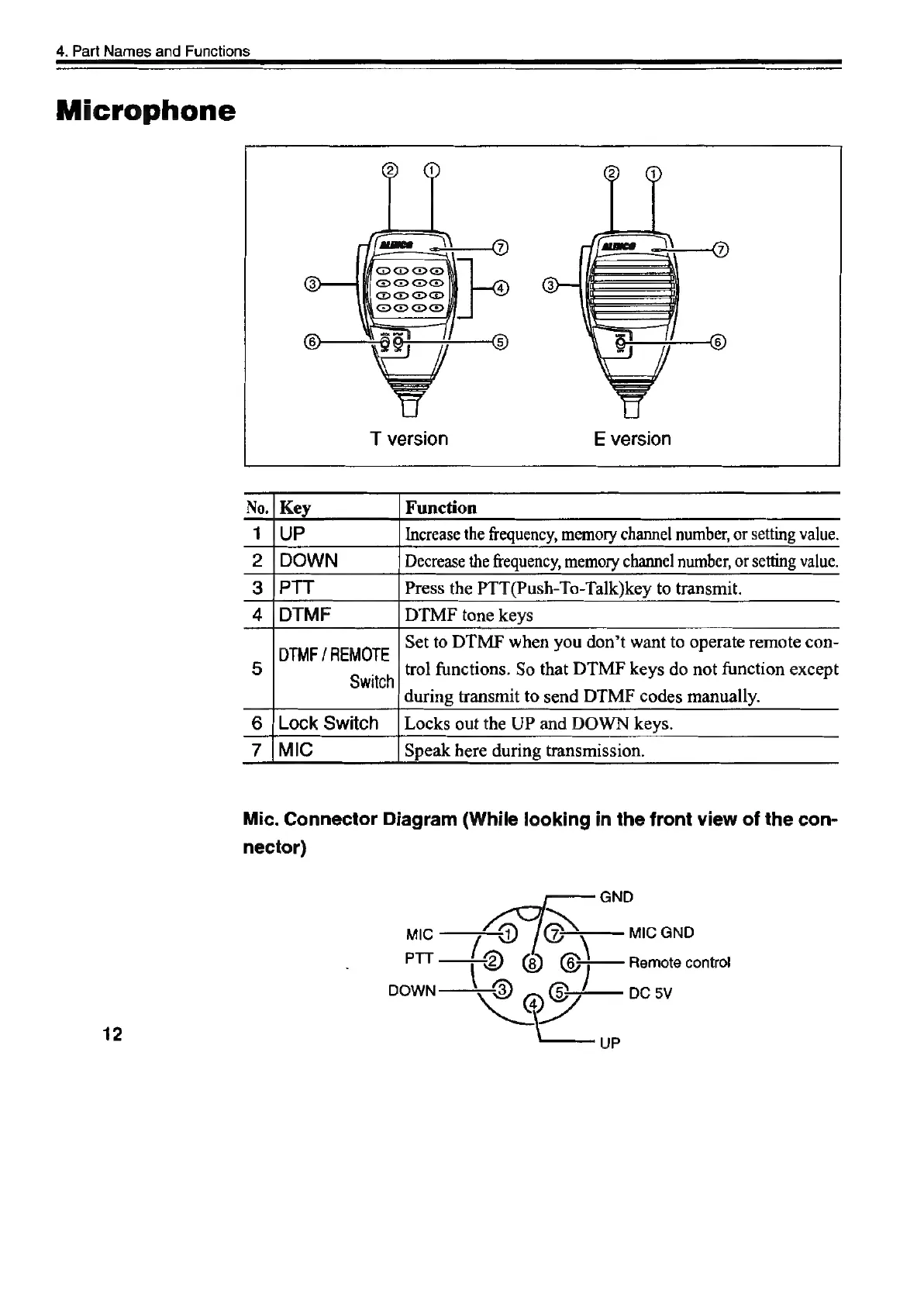

4. Part Names and Functions
Microphone
12
T version E version
Function
Increase the frequency, memory channel number, or setting value.
Decrease the frequency, memory channel number, or setting value.
PTT Press the PTT(Push-To-Talk)key to transmit.
DTMF tone keys
Set to DIMF when you don’t want to operate remote con-
trol functions. So that DTMF keys do not function except
during transmit to send DTMF codes manually.
Locks out the UP and DOWN keys.
Speak here during transmission.
DTMF / REMOTE
Switch
Lock Switch
Mic. Connector Diagram (While looking in the front view of the con-
nector)
GND
MIC 7 £4) @ MIC GND
PTT
(
2)
®@®
G6
Remote
controt
/
DOWN
@-~—
oc
5v
S77
ee UP
