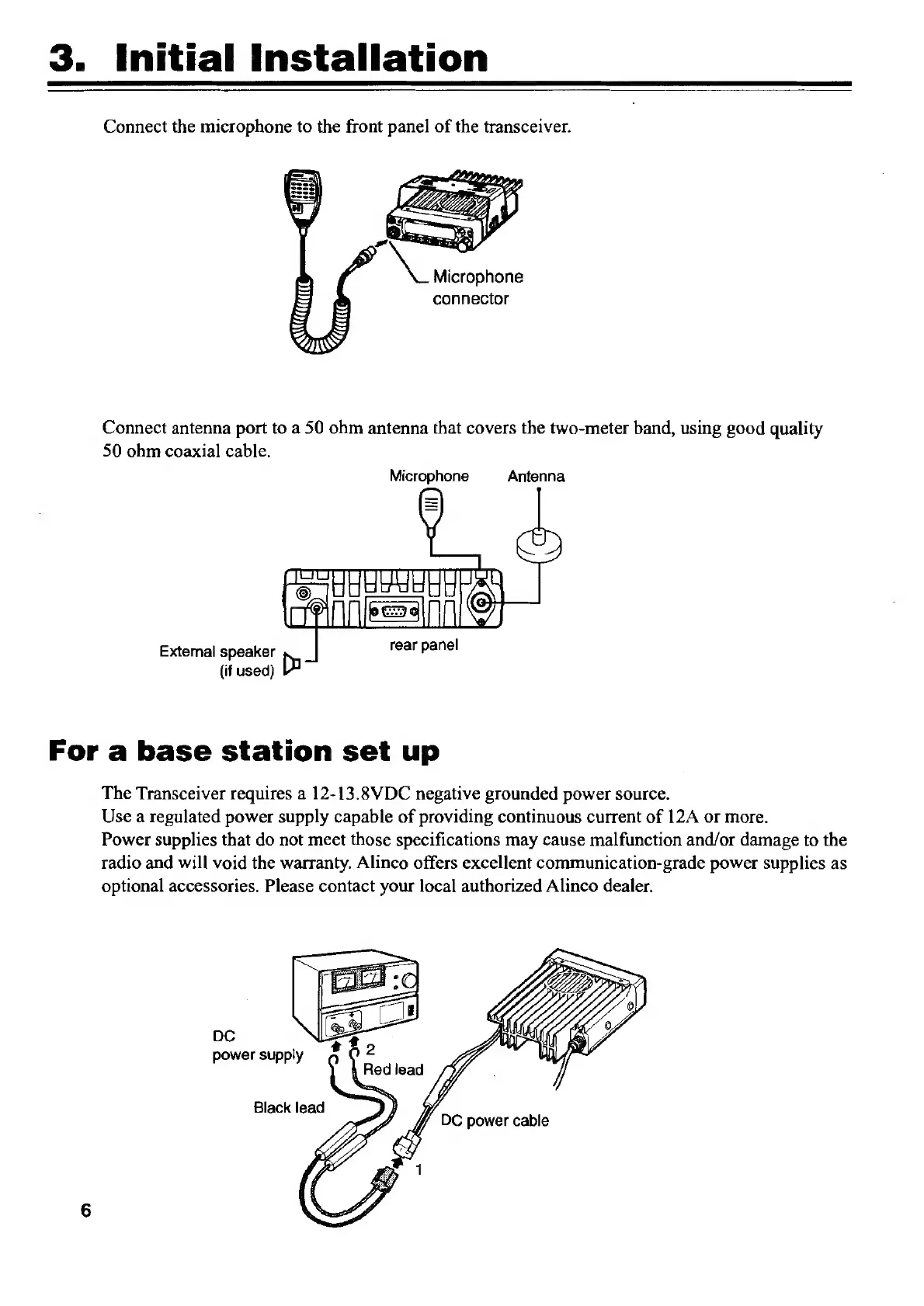

3. Initial Installation
Connect the microphone to the front panel of the transceiver.
Microphone
connector
Connect antenna port to a 50 ohm antenna that covers the two-meter band, using good quality
50 ohm coaxial cable.
Microphone Antenna
External speaker bu rear panel
(if used)
For a base station set up
The Transceiver requires a 12-13.8VDC negative grounded power source.
Use a regulated power supply capable of providing continuous current of 12A or more.
Power supplies that do not meet those specifications may cause malfunction and/or damage to the
radio and will void the warranty. Alinco offers excellent communication-grade power supplies as
optional accessories. Please contact your local authorized Alinco dealer.
