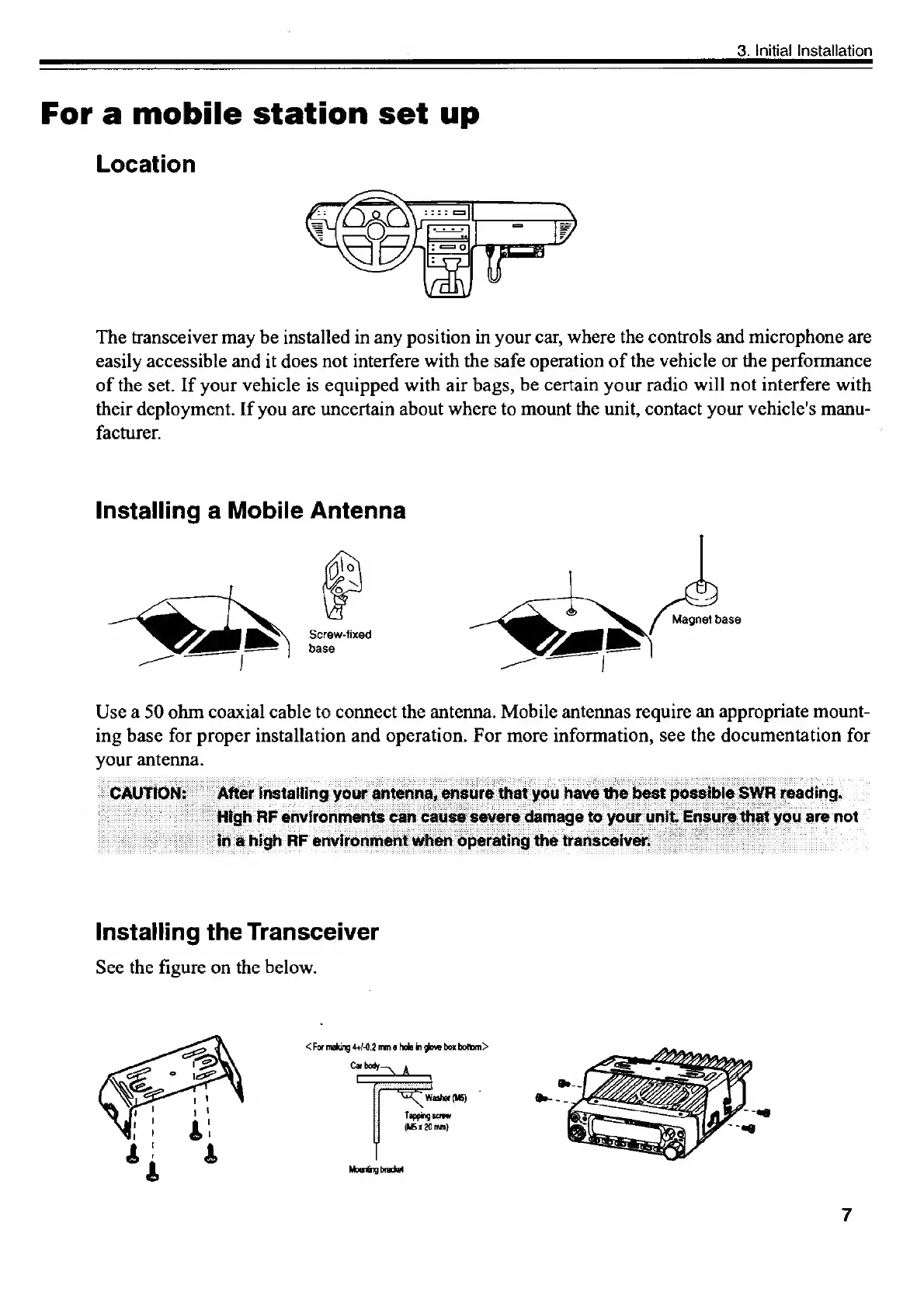

3. Initial Installation
For a mobile station set up
Location
The transceiver may be installed in any position in your car, where the controls and microphone are
easily accessible and it does not interfere with the safe operation of the vehicle or the performance
of the set. If your vehicle is equipped with air bags, be certain your radio will not interfere with
their deployment. If you are uncertain about where to mount the unit, contact your vehicle's manu-
facturer.
Installing a Mobile Antenna
“Dar
ee ra
Use a 50 ohm coaxial cable to connect the antenna. Mobile antennas require an appropriate mount-
ing base for proper installation and operation. For more information, see the documentation for
your antenna.
Magnet base
Screw-fixed
base
CAUTION: After installing your antenna, ensure that you have the best possible SWR reading.
_ High RF environments can cause severe damage to your unit. Ensure that you are not
_in. a high AF environment when operating the transceiver. :
Installing the Transceiver
See the figure on the below.
Cat body
‘Washer (MS)
Tapping screw
(M5 x 20 mm)
Mounting bracket
