ALLEN & HEATH GL4000 Service Manual

ALLEN & HEATH
Section A - 4
L4DSM2

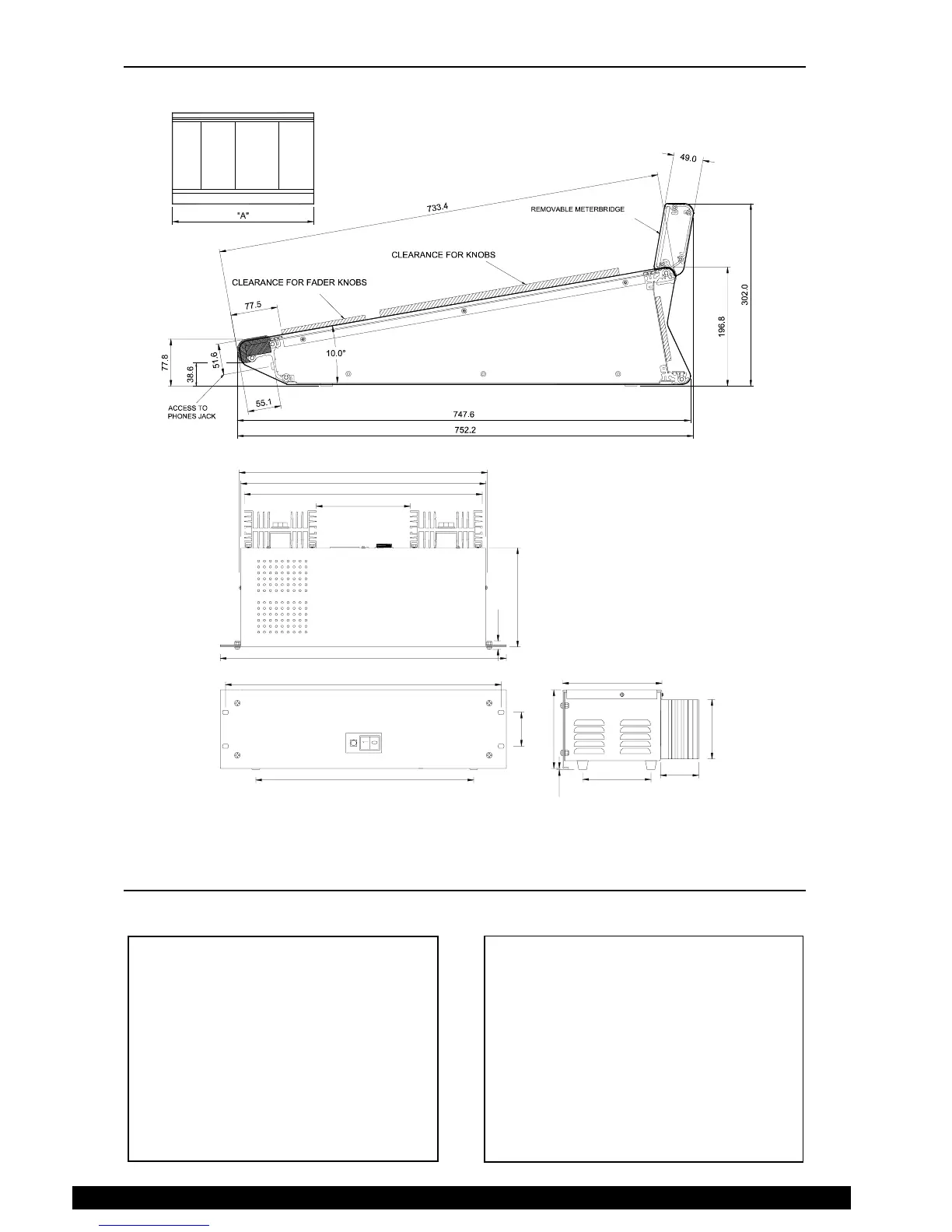

GL4000 DIMENSIONS (consoles up to serial number 403420)
The diagrams below give the dimensions for flightcasing the console and power supply unit.
UNPACKED Width Depth Height Wt
GL4000-824 1166 748 197 43 kg
GL4000-832 1421 748 197 52 kg
GL4000-840 1676 748 197 61 kg
GL4000-848 1931 748 197 70 kg
GL4000-8M 255 748 197 9 kg
Meterpod 1154-1664 +56 +106
RPS11 483 (19") 232 135 (3U) 10 kg
RPSD2 483 (19") 180 45 (1U) 4.5kg
PACKED Width Depth Height Wt
GL4000-824 1702 900 390 76 kg
GL4000-832 1702 900 390 84 kg
GL4000-840 1950 900 390 92 kg
GL4000-848 2205 900 390 120 kg
GL4000-8M 480 830 260 12 kg
Meterpod 1290-1800 130 230 6-8 kg
RPS11 575 295 175 11 kg
RPSD2 570 340 75 6 kg
The RPS11 is supplied with a 2m mains lead with a moulded mains plug and IEC socket. A3m DC output cable is also
supplied to connect the RPS11 to the GL4000.
MECHANICAL DETAILS
465.1
418.7
413.4
401.3
482.6
367.6
158.3
57.2
100.0
132.5
64.7
2.0
115.2
167.1
167.1
14.2

ALLEN & HEATH GL4000 Specifications

General

Type	Analog Mixing Console
Groups	8
Faders	100mm
Frequency Response	20Hz - 20kHz
Channels	40
Mic/Line Inputs	40
EQ	4-band with 2 sweepable mids
Direct Outputs	Yes
Phantom Power	Yes
Metering	LED
Total Harmonic Distortion	< 0.005% at 1kHz
Noise (EIN)	-128dB
Dimensions	Varies depending on frame size. e.g., 40 channel: 1367mm (W) x 724mm (D) x 223mm (H)
