GLD User Guide 25 AP8561 iss.3
The Fader Banks
The GLD-80 mixer has 2 independent Fader Banks, one with 12 fader strips, the other with 8 fader strips.
The GLD-112 has 3 Fader banks with 12, 8 and 8 faders. Each Bank has 4 Layers. This means that the
GLD-80 can work with up to 80 fader control strips and the GLD-112 with up to 112 strips.
Any strip can be assigned as an Input channel, Mix master, FX send master, FX Return, engineer’s
Wedge or IEM master, or DCA master in any combination. Strips can be left blank (unassigned). The
Template Shows provide a logical assignment of the fader strips to give you a familiar starting point.
To change the fader strip assignment use the Setup / Control / Strip Assignment screen. You can drag-
and-drop to quickly reassign the strips.
The Fader Strip keys

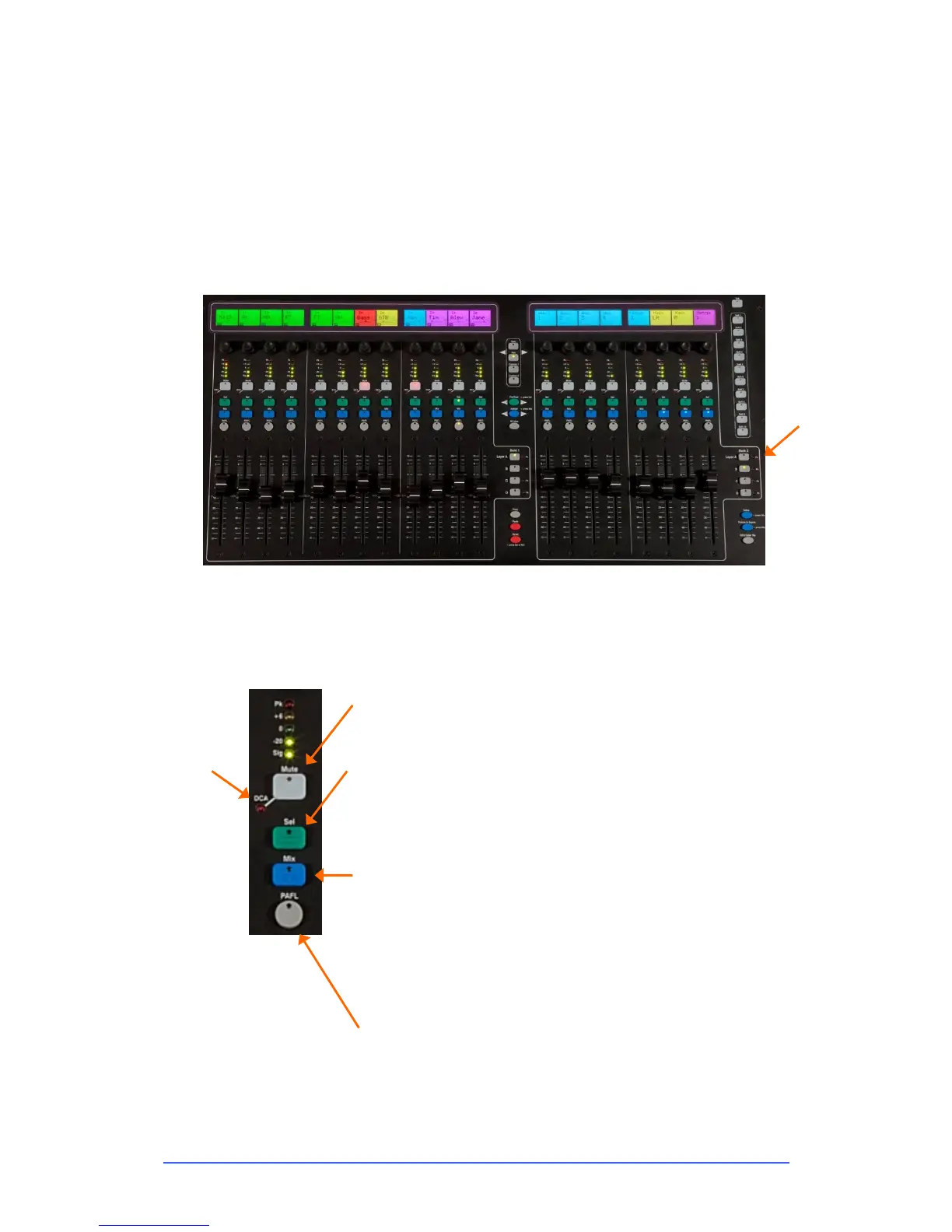

4 keys per strip provide quick access to important live mixing functions:
Layer select
keys A, B, C, D
Mute Turns off the channel signal. Affects the main mix and pre-fade and post-
fade sends. This is important in live mixing, for example to mute an acoustic
guitar in both the FOH mix and monitors when the musician unplugs it.
Sel Instantly selects the processing for the channel. The rotary control section
to the left of the touch screen becomes active to control the Preamp, HPF, PEQ,
Gate and Compressor for that channel.
To see and adjust the processing using the touch screen make sure the
screen Processing key is selected.
Lights when
the channel is
muted by a
DCA
Mix Puts the send levels and assignments of the associated channel or master
onto the fader strips. For example you can work with all the sends to one Aux
shown on the input faders by selecting its master strip Mix key. Or work with the
sends from one channel to all the Auxes shown on the master faders by
selecting the channel Mix key.
Be aware of which Mix is currently selected. For example, when you have
finished adjusting an Aux send, press its Mix key again to turn it off and return to
the main mix. The currently selected mix is displayed in the lower left screen
toolbar.
PAFL Sends the channel PFL (pre-fade listen) or AFL (after-fade listen) signal
to the GLD headphones and monitoring system. Preferences for the PAFL
system are set using the Setup / Audio / PAFL screen.
Input PAFL overrides mix master PAFL.
