Allen & Heath 17 GS_R24 User Guide

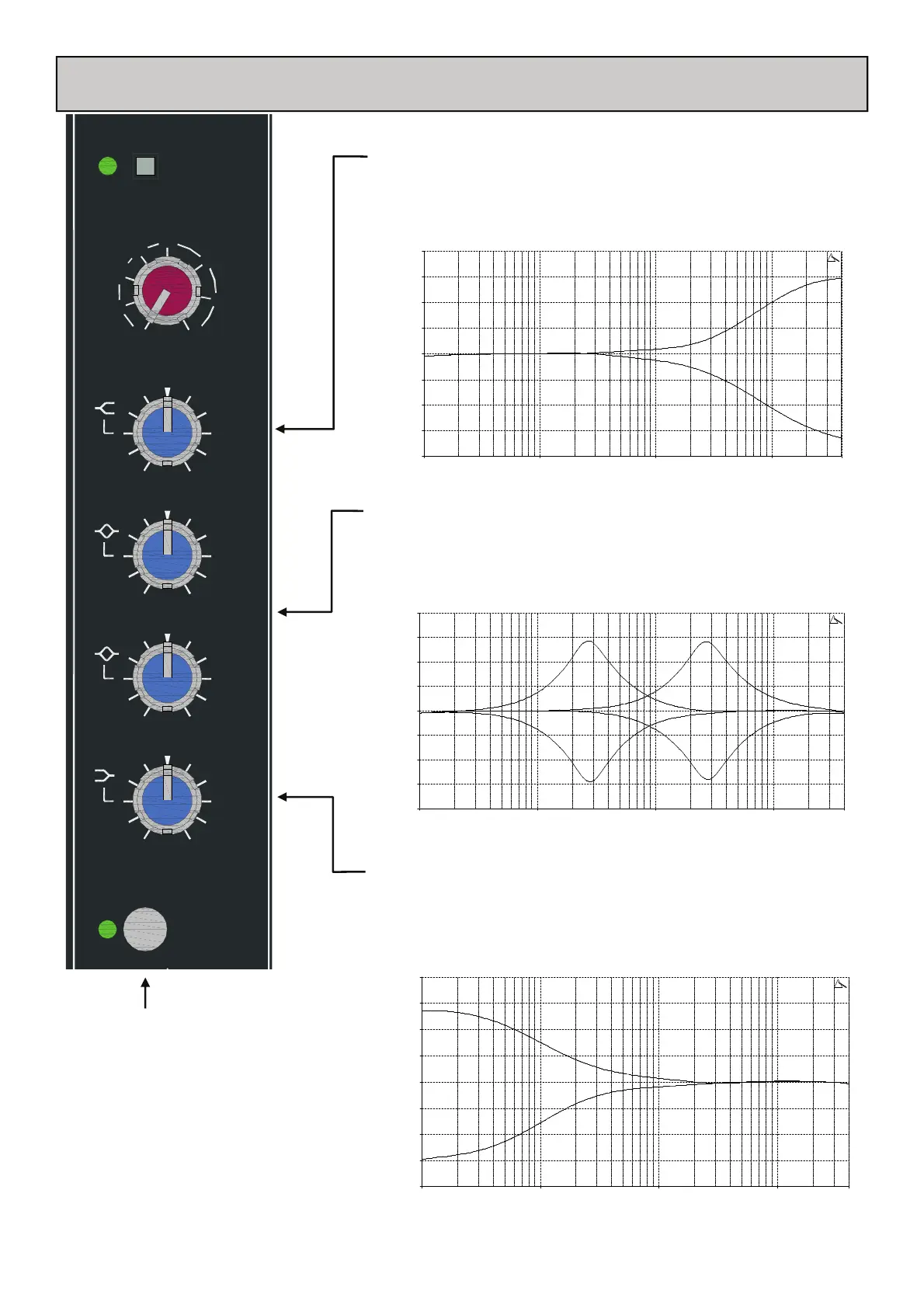

STEREO INPUT CHANNEL
Stereo HF EQ
With a 3dB corner frequency of 12kHz and maximum cut & boost of 15dB,
the HF EQ is tuned to the upper range of the audio spectrum.
EQ IN
10
-30
-20
-5
0
5
-10
OO
ST2
LEV
-15 +15
HF
12k
-15
HM
+15
2k5
-15
LM
+15
250Hz
-15
LF
+15
80Hz
SIP SAFE
10.00 Hz 100.00 1000.00 10000.00 40000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
10.00 Hz 100.00 1000.00 10000.00 40000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
Stereo HM & LM EQ
Fixed bandpass equaliser sections set at 2.5kHz and 250Hz and with a maxi-
mum cut & boost of 15dB.
Stereo LF EQ
A shelving equaliser with a 3dB corner frequency of 60Hz and with a maxi-
mum cut & boost of 15dB.
10.00 Hz 100.00 1000.00 10000.00 40000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
EQ IN
The EQ IN switch enables the equaliser
when pushed in. The EQ is bypassed
when the switch is in its up position.
