GS3000
U
SER
G
UIDE
20
C
ONTROL
R
OOM
S
ELECTION

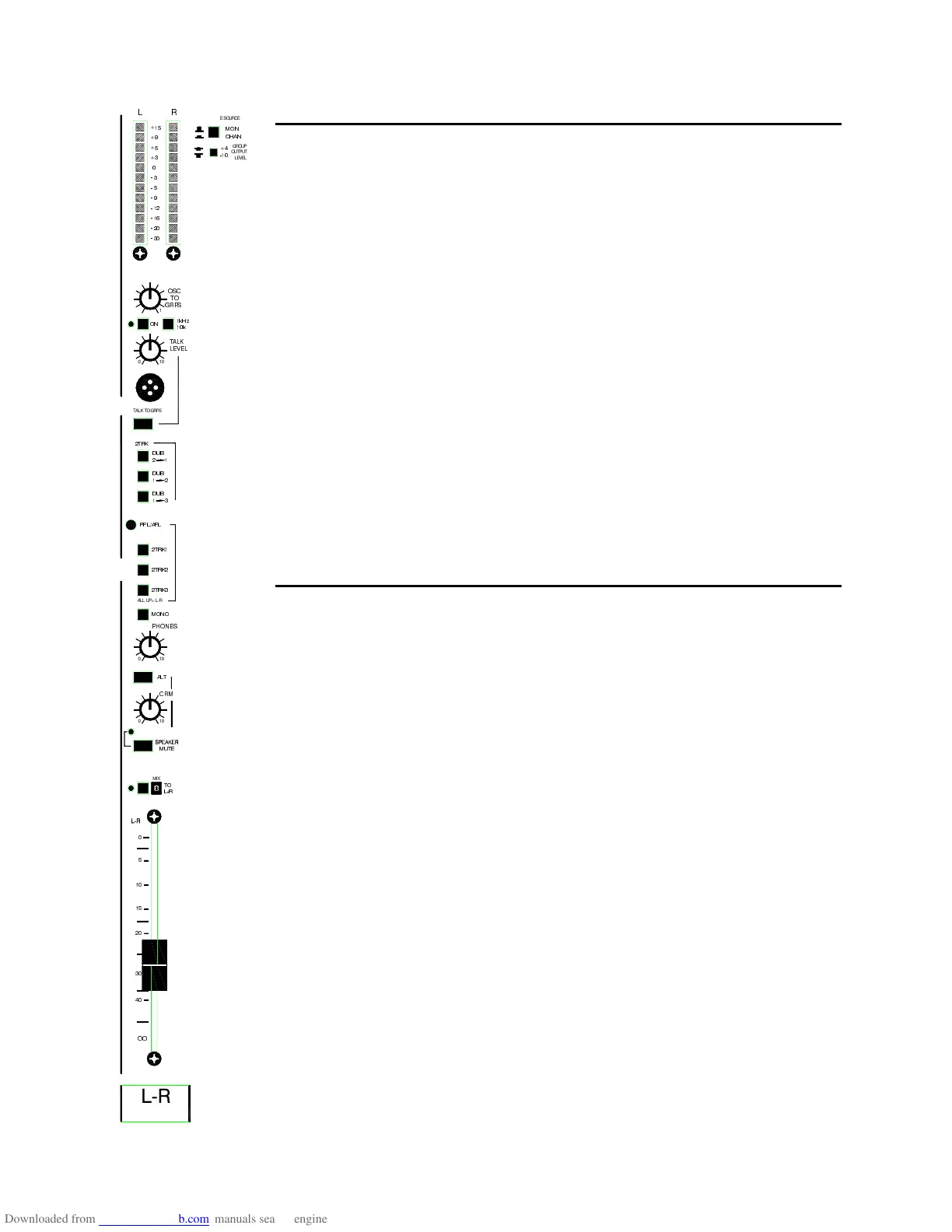

Three switches enable playback monitoring from each of the 3 tape machines.
With the switches in the up position the L-R mix output is the source.
2TRK1
– press this switch to listen to the playback from Tape machine 1.
2TRK2
– press this switch to listen to the playback from Tape machine 2.
2TRK3
– press this switch to listen to the playback from Tape machine 3.
The switch priority is 2TRK3 overrides 2TRK2 which overrides 2TRK1 which overrides
the L-R mix output to the control room. Pressing any
AFL/PFL
button on the console
will override the monitor with the selected AFL/PFL signal.
MONO
– press this switch to combine the left and right signal. This is useful for
checking mono compatibility. This does not affect the outputs to the tape machines or
studio feeds.
PHONES
- The headphone socket is located below the front armrest. Use stereo
headphones with a nominal impedance of 30 to 600 ohms and adjust the
PHONES
control for a comfortable listening level.
ALT
– switches between the main (reference) and alternate (domestic) monitor
speakers. Useful to compare the mix between high quality studio monitor speakers
and domestic Hi-Fi speakers.
CRM
– controls the level of the selected control room speakers.
SPEAKER MUTE -
switches off the signal to the selected control room speakers. This
does not affect the headphone signal.
M
AIN
L-R O
UTPUTS
MIX B TO L-R –
combines the mix on the stereo MIX B busses with the main L-R mix.
This can be used during mixdown to expand the number of inputs to the mix by routing
channel path inputs to mix B.
L-R FADER
– a single 100mm fader adjusts the main L-R mix level. For best
performance the faders should be operated around the ‘0’ position for normal ‘loud’
level. If you find yourself operating significantly below ‘0’ then the recorder or amplifier
input is too sensitive for the console outputs. Simply turn down the recorder or
amplifier level trim. If none is available then insert an attenuator pad between the
console and connected equipment.
!
TALK TO GRPS
!
!
!
ALL UP= L-R
0 10
100
"
GROU P
100
100
#
#
METERBRIDGE SOURCE
!
OUTPUT
LEVEL
MIX
