GS3000
U
SER
G
UIDE
8
D
IMENSIONS

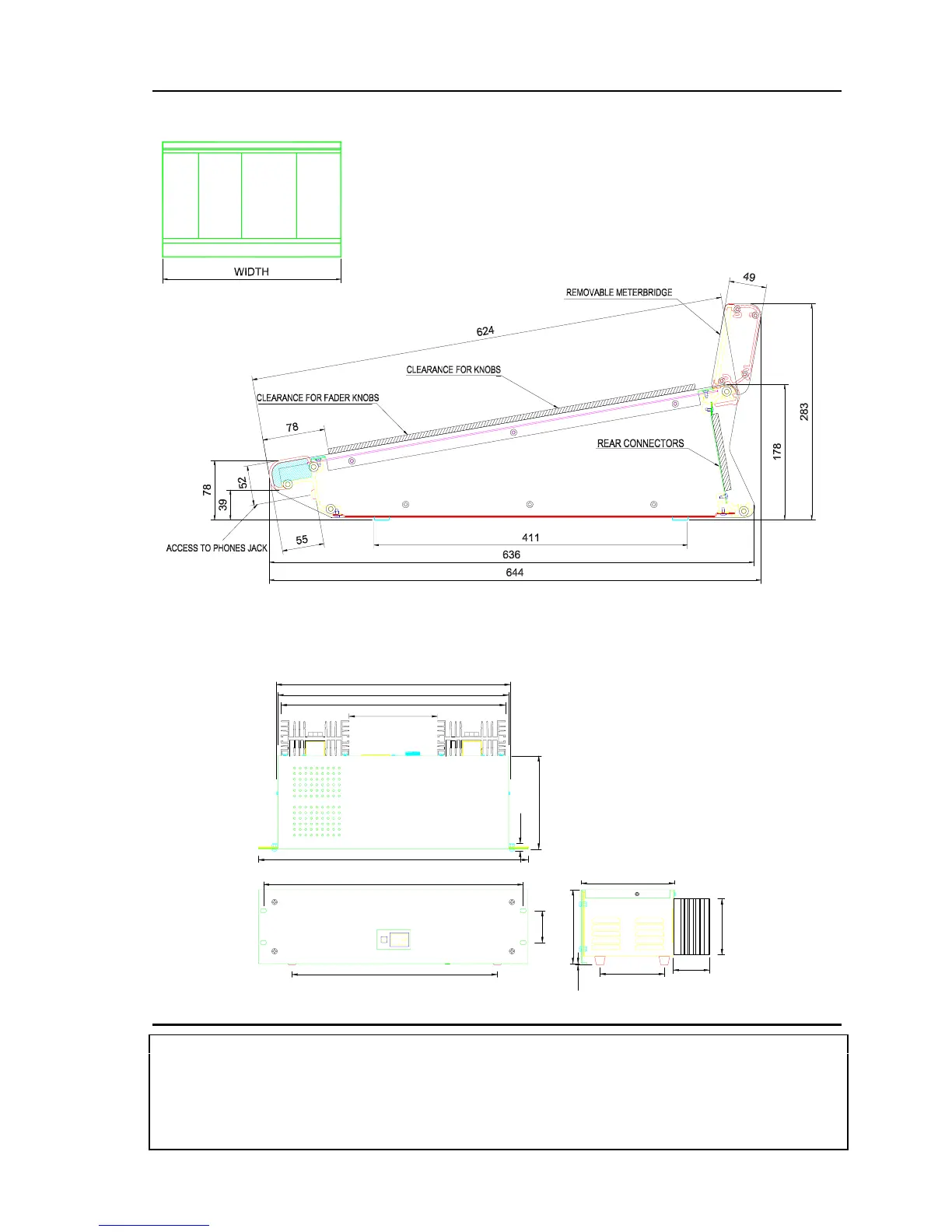

Dimensions for installing the console and power supply unit are shown below:
D
IMENSIONS
Unpacked Packed
Width depth height weight(kg) Width depth height weight(kg)
GS3000-824.............................1186 ..........634 ........... 176............29.......................... 1995 ..........830 ........... 330............38
GS3000-832.............................1481 ..........634 ........... 176............37.......................... 1995 ..........830 ........... 330............38
GS3000-M24 meterbridge........1174 ..........56 ............. 106............4............................1300 ..........130 ........... 280............6
GS3000-M32 meterbridge........1469 ..........56 ............. 106............5............................1600 ..........130 ........... 280............7
RPS11 power supply................483 ............232 ........... 135............10.......................... 575............270 ........... 170............ 11
482.6
158.3
401.3
413.4
418.7
132.5
100.0
64.7
2.0
167.1
14.2
167.1
367.6
465.1
57.2
115.2
RPS11 Power Supply
To Next Page
