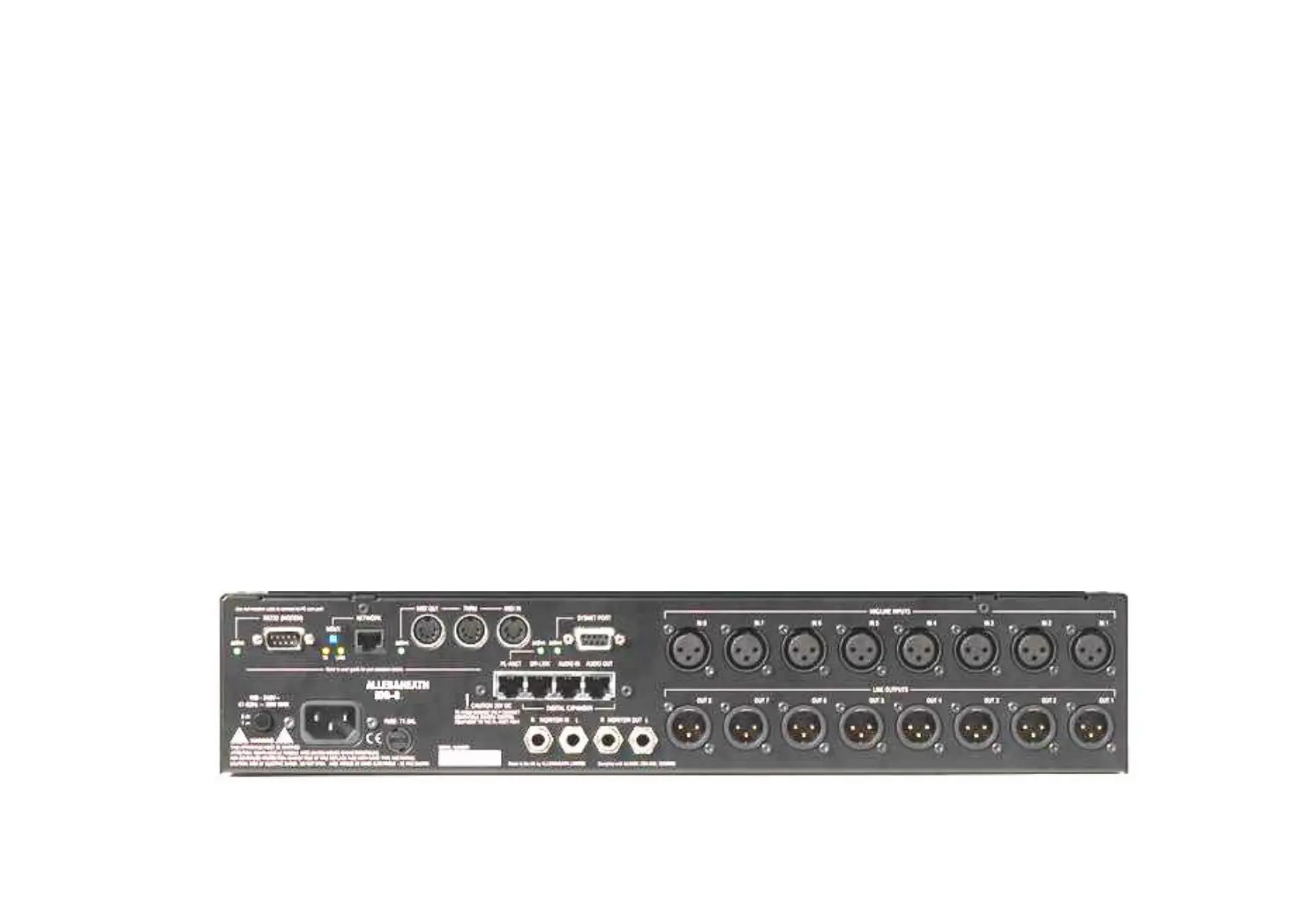

• Rear panel
: AC 100 – 240V ~
: RS232 (Modem)
: MDI/X switch. If Link LED does not light, operate this switch. It allows use of straight or
crossover cable.
: TX, Link LEDs
: Network port
: MIDI. This port needs to be activated from within the System manager software.
: Rear RS232 Sysnet port. Indicator LED. This port needs to be activated from within the
System manager software.
: PL-ANET. This port needs to be activated from within the System manager software.
: DR-LINK
: AUDIO IN
: AUDIO OUT
: Analog audio. 8x balanced XLR in/out 2x balanced ¼” jack in/out
Total i/o = 10 IN, 10 OUT

ALLEN & HEATH iDR Series Specifications

General

EQ Bands	4-band parametric EQ per channel
Word Length	24-bit
Dynamic Range	>110dB
THD+N	<0.005%
Control	Ethernet
Connectivity	Ethernet
Audio Processing	96kHz
Mounting	Rackmount
Faders	None (controlled via external surfaces)
Effects	Reverbs, Delays, Modulations
Sampling Rate	96 kHz
