PEQ (Channel, FX return and Mix)
The equaliser is 4-band fully parametric with
cut/boost, swept frequency and width controls per
band. The HF and LF bands may be switched as
shelving, bell or pass type filters. The WIDTH
control turns off if the band is set as shelving. GAIN
turns off if the band is set as a pass type. The

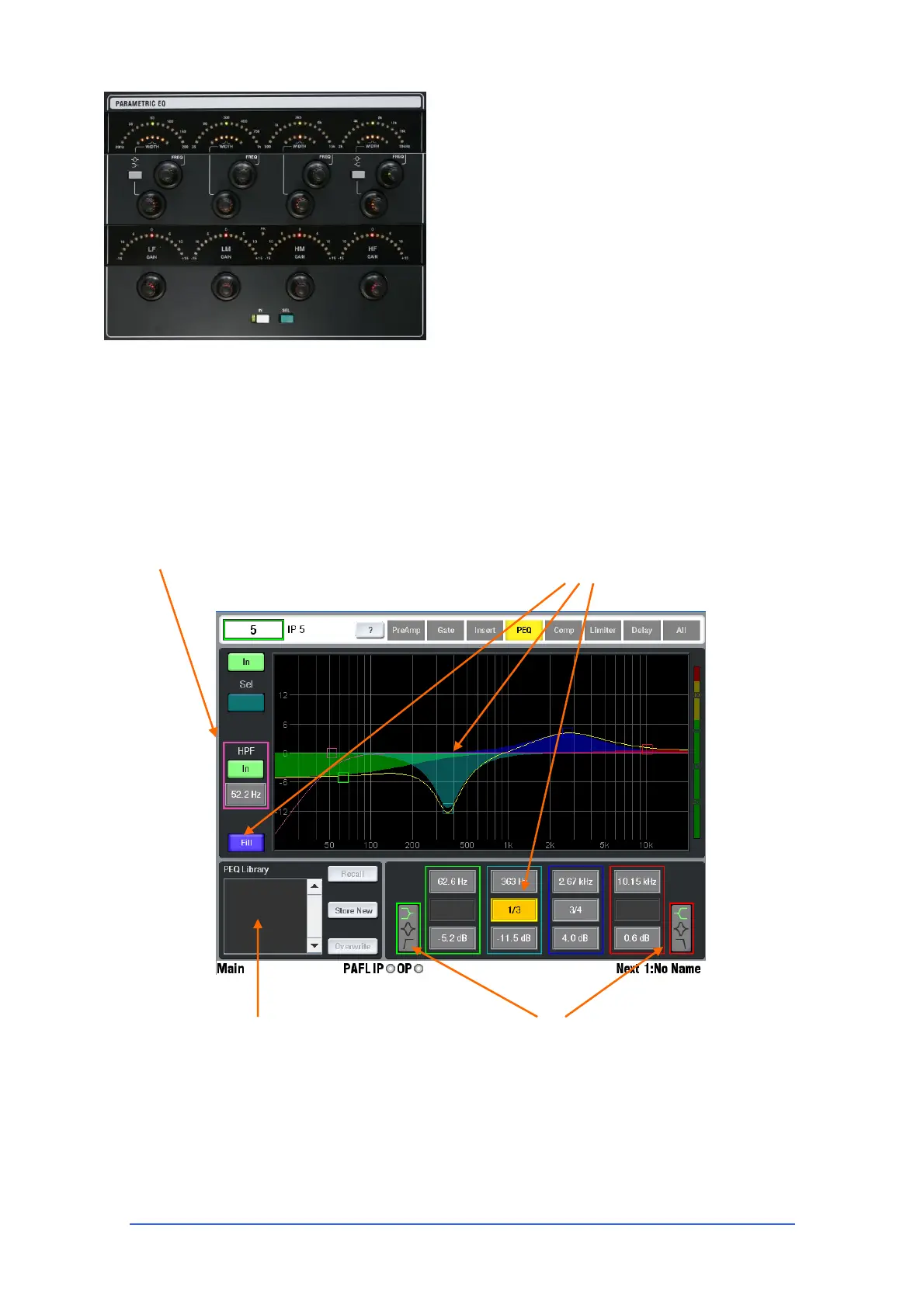

TouchScreen gives you a graphical view of the EQ
curve and alternative data entry using touch boxes
and encoder. The screen display also allows you to
change the style of graph and to see the High Pass
filter settings relative to the PEQ. The frequency
range of each band has been carefully chosen to
provide good resolution with appropriate overlaps
but if you prefer to have each band sweepable from
20Hz to 20KHz you can select this option in the
MIXRACK SETUP / Mixer Pref screen.
PEQ Library - As with most of the processing
blocks, you can store and name your settings as
User Libraries. Libraries are stored within the
Show memories but can be archived and
transferred to other iLive systems via USB key
LF and HF filter types - Touch to select one of
three filter types = shelving, bell or filter.
HPF control - The 12dB/octave high pass filter
can be switched in or out and its frequency swept
using either the PREAMP page or these controls
or the filter curve on the PEQ page. The
PEQ curve - Touch and drag the boxes on the
EQ curve, or touch a parameter box below and
use the TouchScreen rotary to adjust its value.
The Fill option shades the curve to show the effect
of each band of the EQ. The curve line displays
the net effect of the 4 EQ bands, with the HPF
curve overlaid on top. The EQ curve is coloured
yellow for EQ in and grey for EQ out.
