GEQ
(Mix only)
A third octave graphic equaliser is provided for
every mix output. This gives you up to 32 GEQs
depending on how many mixes you have
configured. The GEQ has 25 bands from 63Hz to
16kHz. To access the GEQ touch the GEQ tab or
the box in the mix master ALL screen. Touch the
screen slider to highlight a frequency band. Use a
stylus, finger or the screen encoder to adjust the
setting.
Press the screen GEQ Fader Flip button or press
the GEQ FADER FLIP key next to the faders while
the SEL key for the master is active to present the
GEQ across the fader banks. Using the faders you
can access the GEQ without having to open up its
TouchScreen page.
The faders become the cut/boost controls for the
frequency bands. The strip on the right becomes
the master for the mix so that you can adjust the
overall level while adjusting the frequencies. That
may present the master fader or a channel send
depending on which MIX was current when you
switched to GEQ fader mode.
The strip LCDs change colour to red and display
the frequency for each band. The strip SEL keys
reset individual bands to their centre ‘0’ position.
Their green LEDs turn on when the band is reset to
‘0’. The RTA is also displayed across the meters
while in GEQ faders mode. This follows the current
PAFL selection.
Press the screen or fader bay GEQ FADER FLIP key
again to toggle back to normal fader view (or to the
second or further GEQ layers on the smallest iLive
surface).
You can store your GEQ settings as user libraries,
and use the Surface edit keys to quickly copy and
reset settings.
MUTE
MIXMIX
PAFL

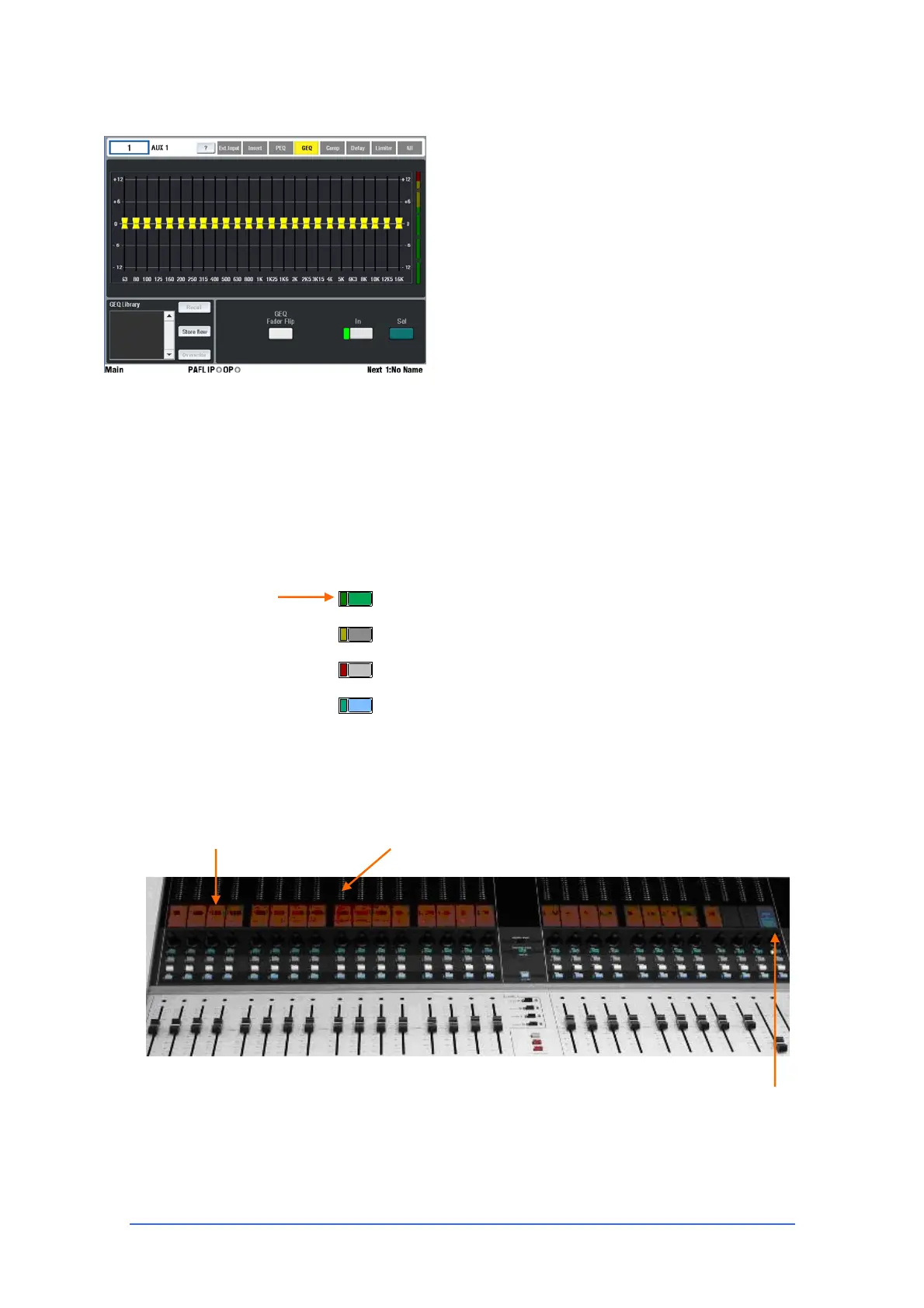

Frequency display RTA display across meters. Follows the currently selected PAFL.
Reset GEQ band
The right hand strip becomes the Mix master.
The fader is either the Mix master level or the
send from an input channel whose MIX key is
currently selected.
