iLive Reference Guide – Firmware Part 2 - 33 AP6526-2 iss.4

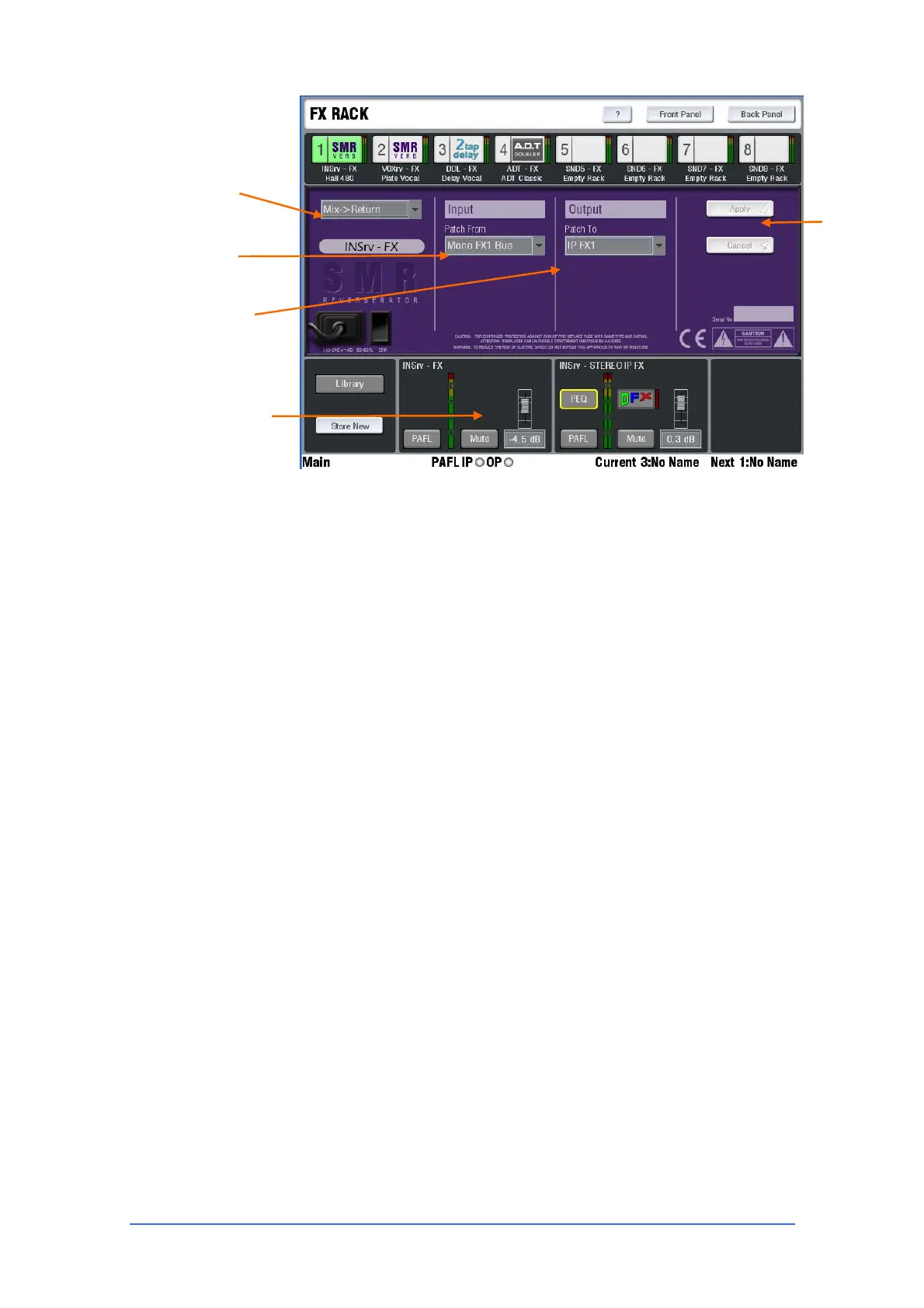

Back Panel view - Configure the FX routing
Touch the top right Back Panel button to open up the connections view. This
emulates patching up a typical outboard effects rack. Configure the FX device
as a send/return loop or inserted into a channel or mix signal path.
FX configuration Choose an option from the drop down menu:
Not Assigned The FX is not patched.
Insert The FX is inserted into a channel or mix signal path. Choose
type from the list in the drop down menu and number from the box.
The Dual Mono mode allows a stereo effects device such as a chorus
unit to be used on a stereo keyboard connected into two mono
channels as opposed to a stereo channel.
Touch Apply to confirm. The lower part of the screen provides the IN
(bypass) button, Dry / Wet balance control, and input / output meters
for the FX.
Mix>Return This configures the FX as a ‘system effect typical of the
aux send, channel return loop used in live mixing for reverb and delay
effects. Touch Apply to confirm. The lower part of the screen
provides the send and return master controls together with input and
output metering. Note that these controls are also available on the
fader control strips if assigned to them.
Patch from If configured as a Mix>Return FX then use this drop down
menu to choose which signal sends to the FX input:
Dedicated FX mix bus
Mono or Stereo Aux mix
Channel Direct Output
Note: The Direct Output selection follows its global setting
configured in the MIXRACK SETUP / Mixer Pref / Direct Output
page. As an FX source this would typically be set to Follow Fader
and Follow Mute.
Patch to If configured as a Mix>Return FX then use this drop down menu
to choose where the return from the FX routes to:
Dedicated stereo FX short return
Mono or stereo full IP channel
FX configuration
Send to the FX
(FX input)
Return from the FX
(FX output)
Apply the
change
Send/Return
masters or Wet/Dry
controls depending
on configuration
