6. Operational Overview
This section provides an overview of the Qu-16 layout and operation to help you get started quickly.
6.1 Fader Strips
The Qu-16 has a group of 16 fader strips. These provide access to
the input and master channel levels and processing.
The main channel levels, master levels and all sends to the effects
and mixes can be easily viewed and adjusted using the faders.
The faders can also be used to adjust the Graphic EQ while in
Fader Flip mode.
The faders are motorised and instantly move to show the current
settings when the layer or function is changed.
Layers – There are three Layers. These provide access to 32 strips identified by the labels alongside
the layer select keys. Indicators next to the keys show which layer is active.
Press the lower key to access the 16 mono channels.
Press the upper key to access the 3 stereo channels, FX returns, FX send and Mix masters.
Press both keys together to access the user assignable Custom layer.

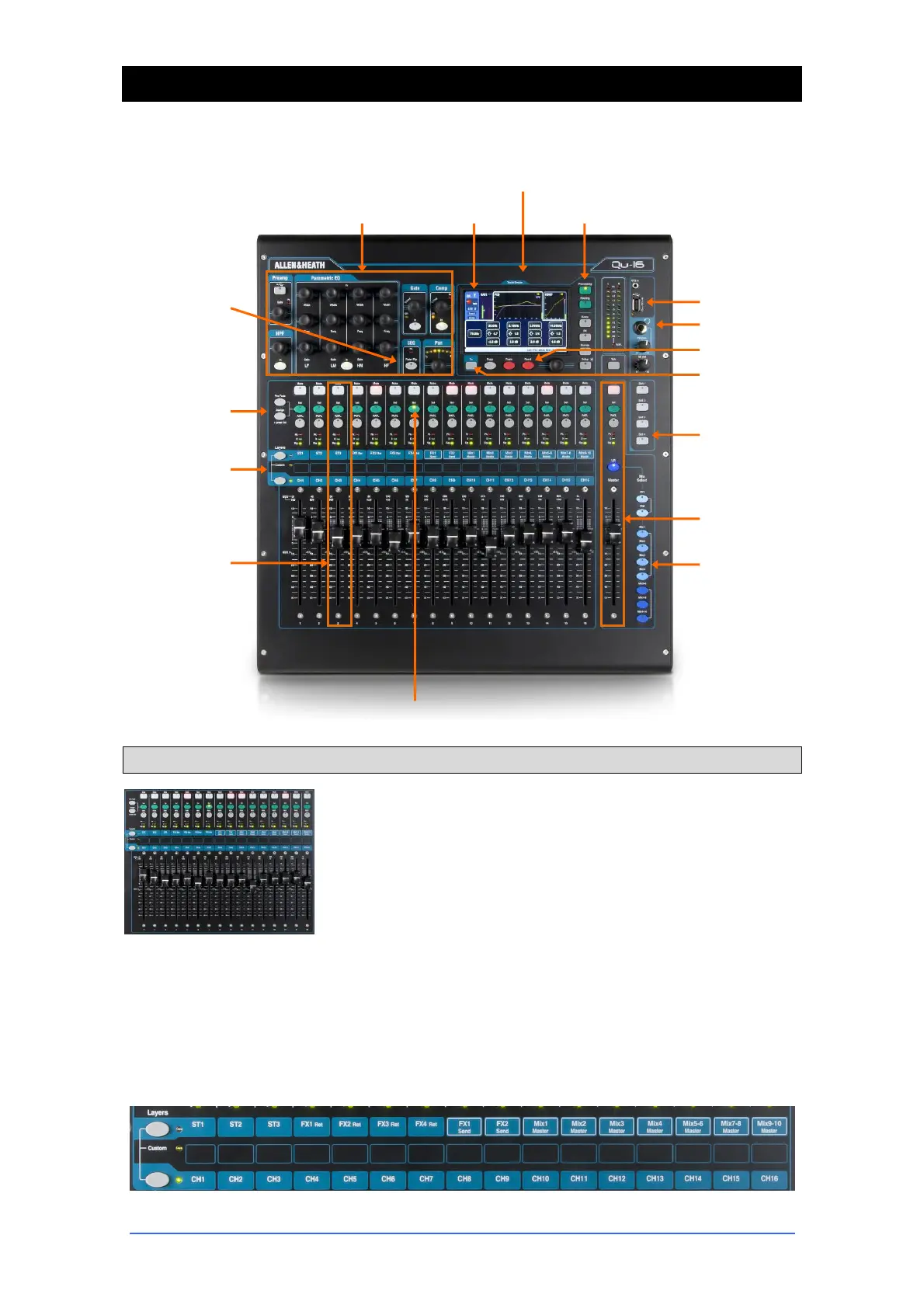

TouchChannel
Screen select
SuperStrip
Fader Strips
Touch Screen
Master Strip
Mix assign
SoftKeys
Layer select
Copy/Paste/reset
Mix select Mix key
Channel select Sel key
Engineer’s monitor
Qu-Drive
Function key
Fader Flip
To Next Page
