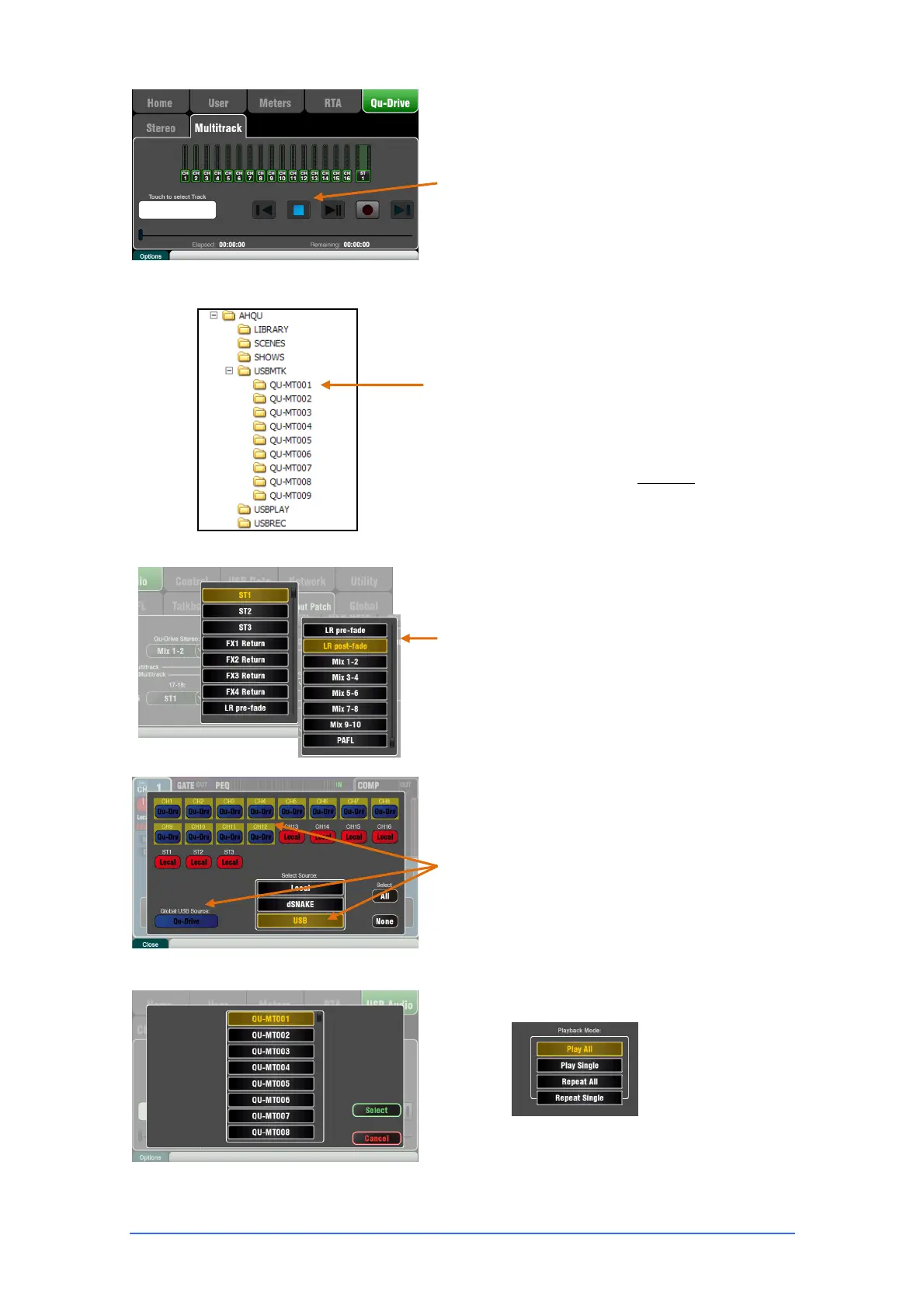

Qu-Drive Multitrack page – This screen
presents the controls for multitrack recording to and
playback from a USB hard drive plugged the top panel
Qu-Drive port.
The blue Stop button lights if the USB drive is
recognised by the mixer. The controls are disabled if
not plugged in or recognised.
Multitrack Record – You can record to a USB
hard drive plugged into Qu-Drive:
18 Tracks = CH1-16 and a patchable stereo pair
Record format = 48kHz, 24-bit, WAV file
Data rate = 144 KB/sec per track (max 4GB total)
Qu allocates a folder name ‘QU-MTnnn’ for each
recording where ‘nnn’ increments from 001 to 999
starting at the highest number +1 it finds on the
drive. The tracks are named ‘TRKnn’ within the
folder where ‘nn’ is 01 to 18.
Note – Use a USB hard drive, not a key, for all stereo
and multitrack recording.
Note - Use the USB hard drive for the Qu mixer only.
Do not use it for other applications.
Format the hard drive on the Qu mixer before starting
to record. Use the Setup / Utility / Qu-Drive screen.
This clears the drive and sets up the Qu directory
structure.
Patch the source to be recorded using the Setup /
Audio / Output Patch screen 17-18 option menu. The
default is the ST1 channel. Tracks 1-16 are mapped
from CH1-16 insert sends.
Arm the recording by touching the red circle Record
button. Touch the Play button to start the recording.
Multitrack Playback – You can play back your
multitrack recordings from the hard drive plugged into
the Qu-Drive port:
Patch the playback to the input channels using the
Processing / Preamp screen Fn key to open the
Preamp Source screen. Make sure Qu-Drive is
selected as the ‘Global USB Source’. Select USB as
the source for the channels you wish to play back.
Select the recording to play back by touching the
name box. You can choose a folder from the list.
Touch Select to confirm.
Press the Fn key for options to choose playback
mode:
Note – Choose to play back either Qu-Drive stereo or
multitrack. It is not possible to play back both stereo
and multitrack at the same time.
