ALLEN & HEATH SQ-6 User Manual

 3
MIDI Protocol – ISSUE 1
1. Introduction and setup
MIDI (Musical Instrument Digital Interface) is a standardised communication
protocol that enables digital devices to communicate and allows one piece of
equipment to control another.
The SQ sends and receives MIDI over USB (via the USB-B port) as well as
over ethernet (using MIDI over TCP/IP via the network port).
These can be broken down into two sets of bi-directional messages. Those
that are used with SQ mixing parameters (i.e. level control of SQ audio
channels), and those used to control external software or equipment (i.e. to
control a DAW).
1.1 Connection
When connected to a computer using the USB-B port, the SQ will appear as a
MIDI input and output device. This can be used with software directly or
through use of the DAW Control Driver for translation.
To connect a computer to the SQ over a network, the DAW Control Driver can
be used.
All other clients used for network communication should be configured to send
messages to the SQ’s IP address and use port 51325.

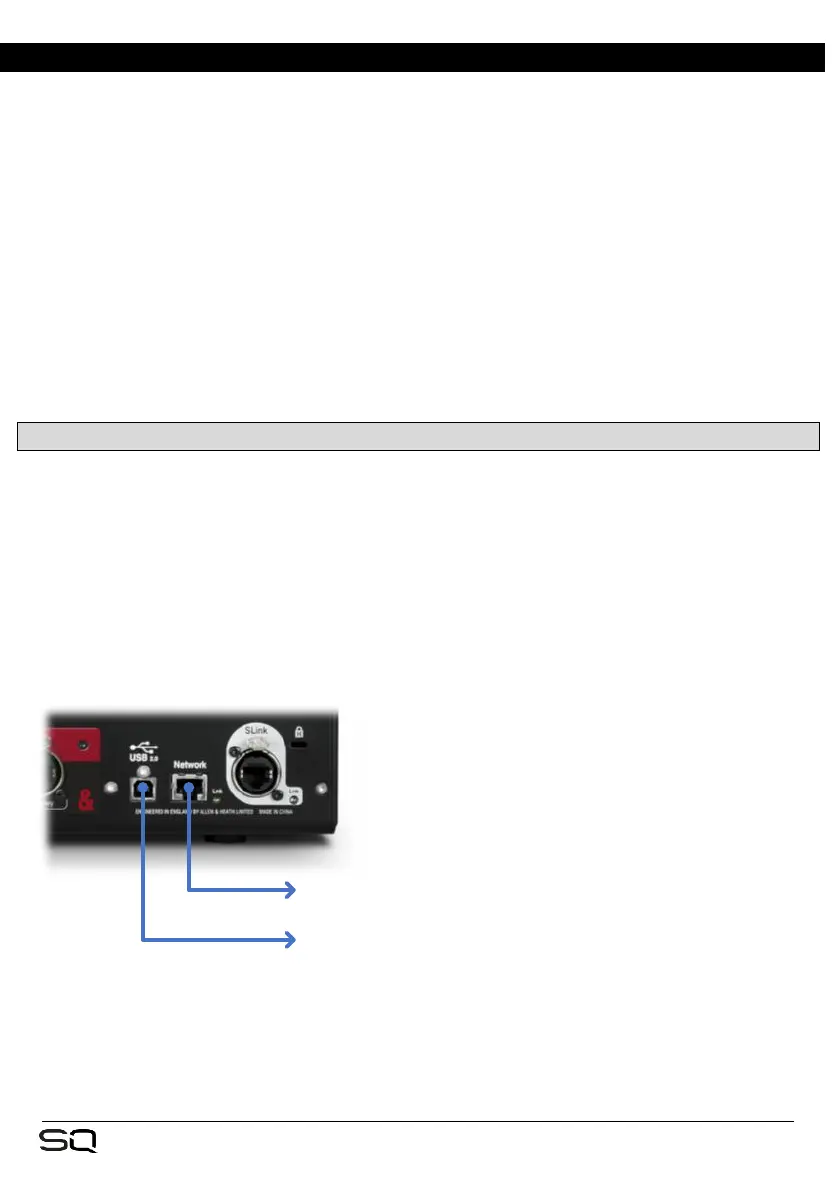

MIDI over TCP/IP (via network)
MIDI over USB (direct to computer)

ALLEN & HEATH SQ-6 Specifications

General

Channels quantity	48 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
DJ mixer	-
Product color	Black
Output impedance	75 Ω
MIDI out	Yes
RJ-45 ports quantity	1
Power consumption (typical)	- W

Weight and Dimensions

Depth	514.9 mm
Width	638 mm
Height	198 mm
Weight	14500 g
Package depth	680 mm
Package width	820 mm
Package height	360 mm
Package weight	17300 g
