ALLEN & HEATH Xone:PX5 Replacing

ALLEN&HEATH 5 AP10733_prt_XPX5 Replacing Faders
REPLACING THE FADERS continued
Step 1:
• Ensure power switch on the mixer’s rear panel is turned OFF.
• Disconnect the mains cable from AC mains supply and mixer’s IEC socket.
Step 2:
• Remove and retain 1 Torx screw securing, RECORD, RCA sockets to the rear panel [i].
• Remove and retain 2 Torx screws securing the rear panel MIC, XLR socket [ii].
• Remove and retain 4 Torx screws between LINE and PHONO RCA sockets on rear panel [iii].
• Remove and retain 4 circular nuts securing, EXT RTN / FX SEND, TRS (1/4” Jack) sockets [iv].
Step 3:
• Remove and retain 8 Torx screws securing top panel to the mixer chassis [v].
Step 4:

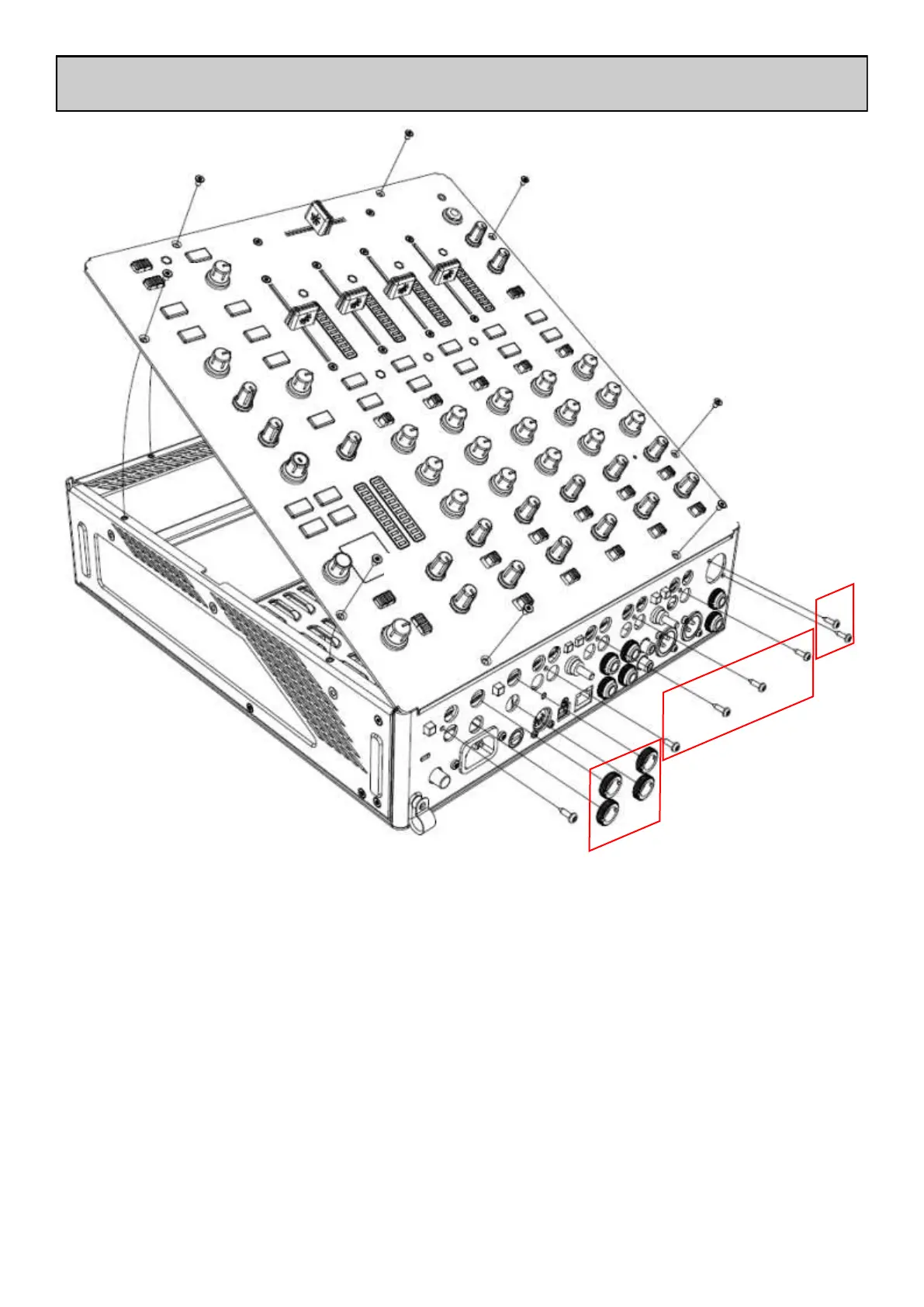

• Lift the front edge of the top panel up from the chassis, as illustrated above, to access and
disconnect the internal harnesses (see below).
NOTE: Do not yet attempt to completely separate the top panel and chassis.
[v]
[v]
[v]
[v]
[v]
[v]
[v]
[v]
[ii]
[i]
[iii]
[iv]
