ALLEN&HEATH 7 AP10733_prt_XPX5 Replacing Faders
REPLACING THE CROSS-FADER

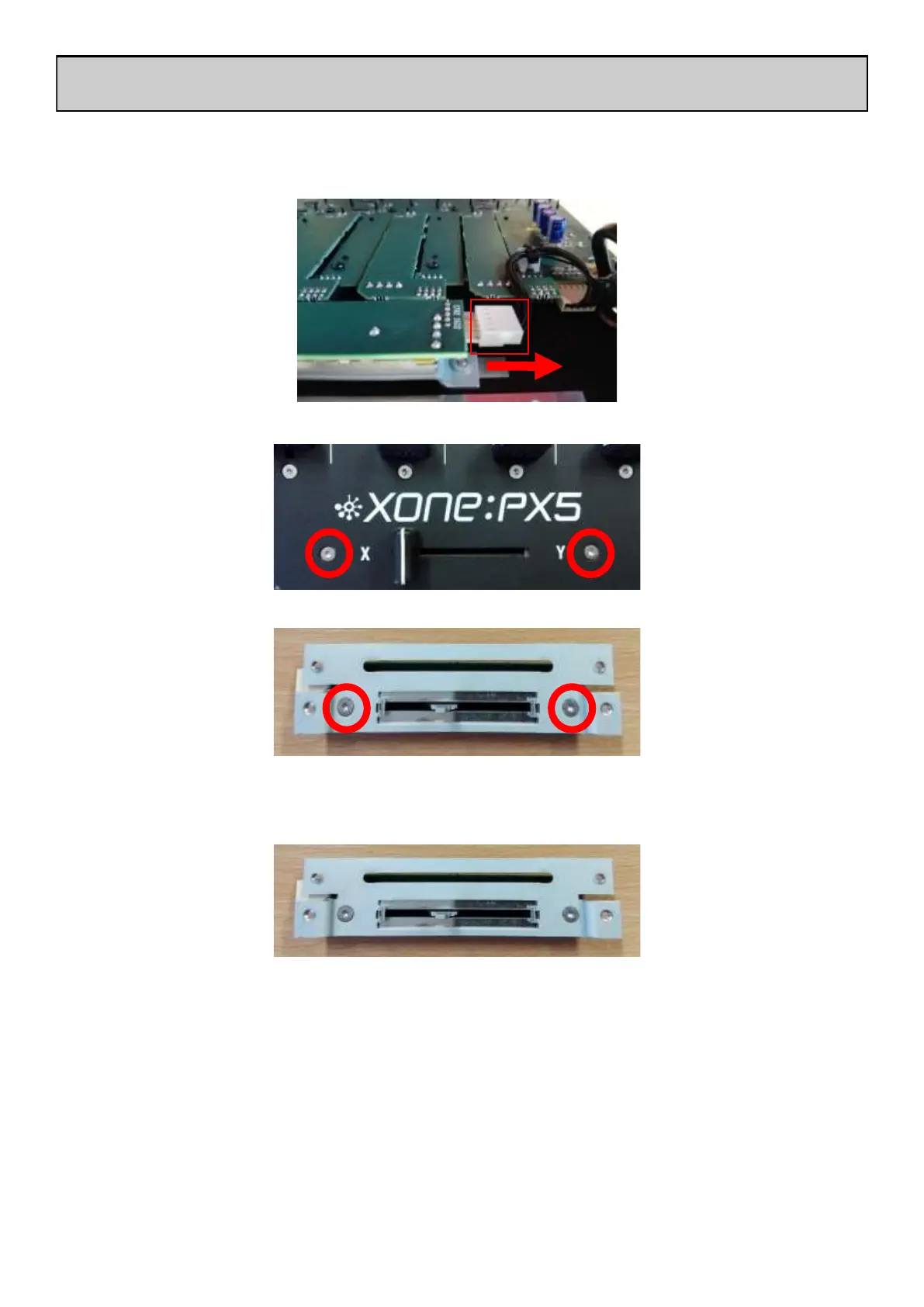

Step 6: To replace the cross-fader
• With care, disconnect the black wire-form connecting cross-fader to the main PCBA.
• Turn the top panel face up. Remove and retain 2 screws securing cross-fader tray to top panel
• Take the knob off the cross-fader shaft to remove the tray clear from the top panel
• Remove and retain 2 screws securing the cross-fader PCBA to the tray
• Fit the new replacement cross-fader PCBA to the bracket as shown below; slot [1].
The standard cross-fader must be fitted to slot [1] and not slot [2].
The longer slot [2] is for mounting the optional innoFADER Pro2 (not supplied).
• Screw the cross-fader plate back to the console.
• Replace the cross-fader knob.
• Re-connect the black wire-form from connecting cross-fader to the main PCBA.
• Reassembly of the mixer is the reverse of Steps 1 - 5, detailed above.
NOTE: when re-assembling the mixer, take great care to refit harnesses in correct positions
(shown in Step 5 above) and to ensure that connectors are fully fitted into their corresponding
sockets.
[1]
[2]
