Allen & Heath 19 ZED-10 User Guide

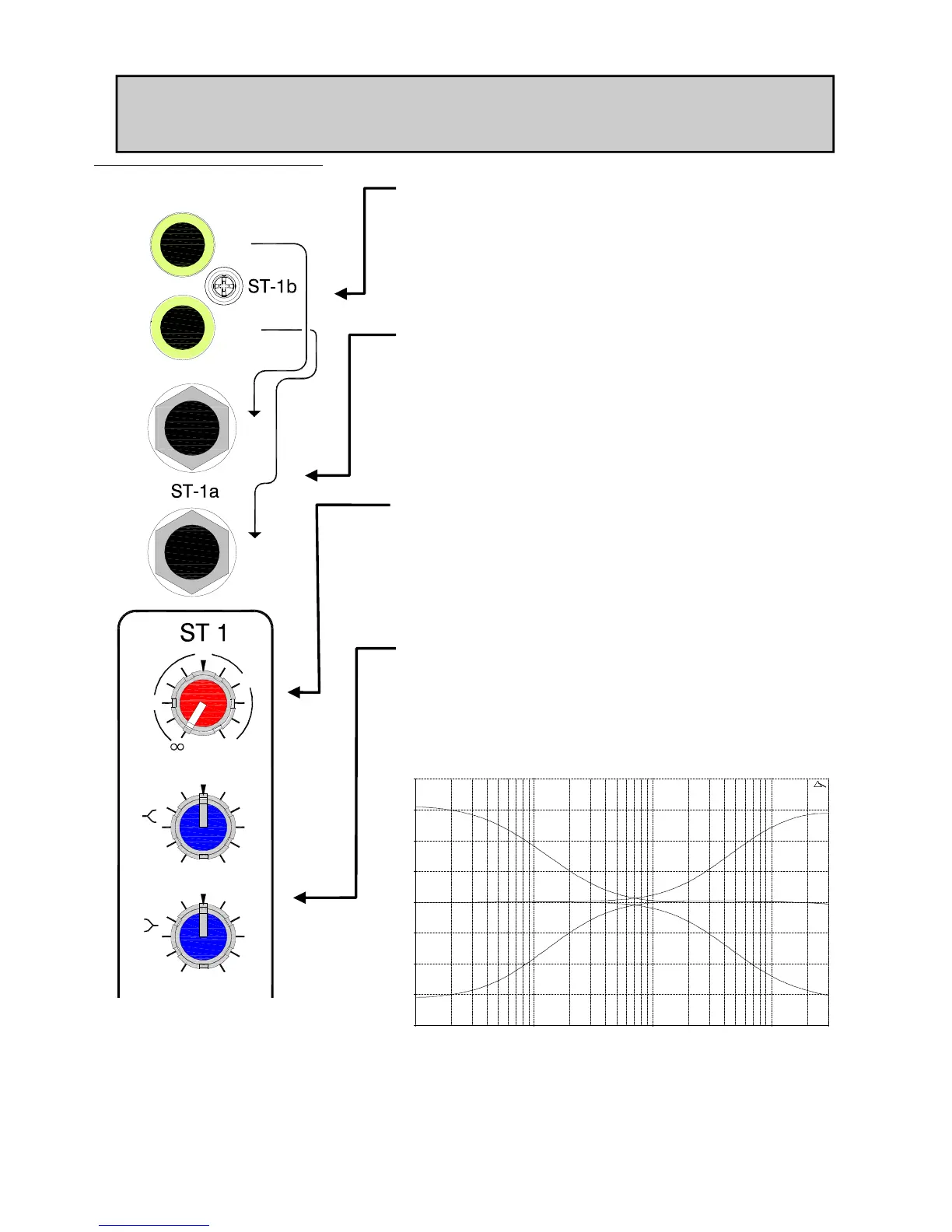

STEREO INPUT CHANNEL 1
ST-1b Inputs
Standard RCA Phono sockets for unbalanced line level
stereo signal sources from equipment such as CD
players, sound modules or MP3 players. If your MP3
player has a mini jack socket (most common) use a
stereo mini jack plug to 2 x RCA Phono lead.
ST-1a Inputs
Standard 1/4” jack sockets for line level stereo signals.
The ST1b inputs (RCA Phono) are connected through
the break contacts of these jack sockets so plugging
into ST1a will override the signals from ST1b.
Stereo channel EQ
Right
Left
Right
Left
-15
+15
-15
+15
+15
0
5
LF
HF
-15
ST-1 Gain
Adjusts the input level to the ST1 channel from off
(maximum attenuation) to +15dB gain. For low level
inputs from MP3 players, turn it fully clockwise.
10.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
Stereo EQ
High frequency and low frequency equaliser with cor-
ner frequencies of 12kHz for the HF and 80Hz for the
LF and maximum cut & boost of 15dB.
