Allen & Heath 22 ZED-10 User Guide

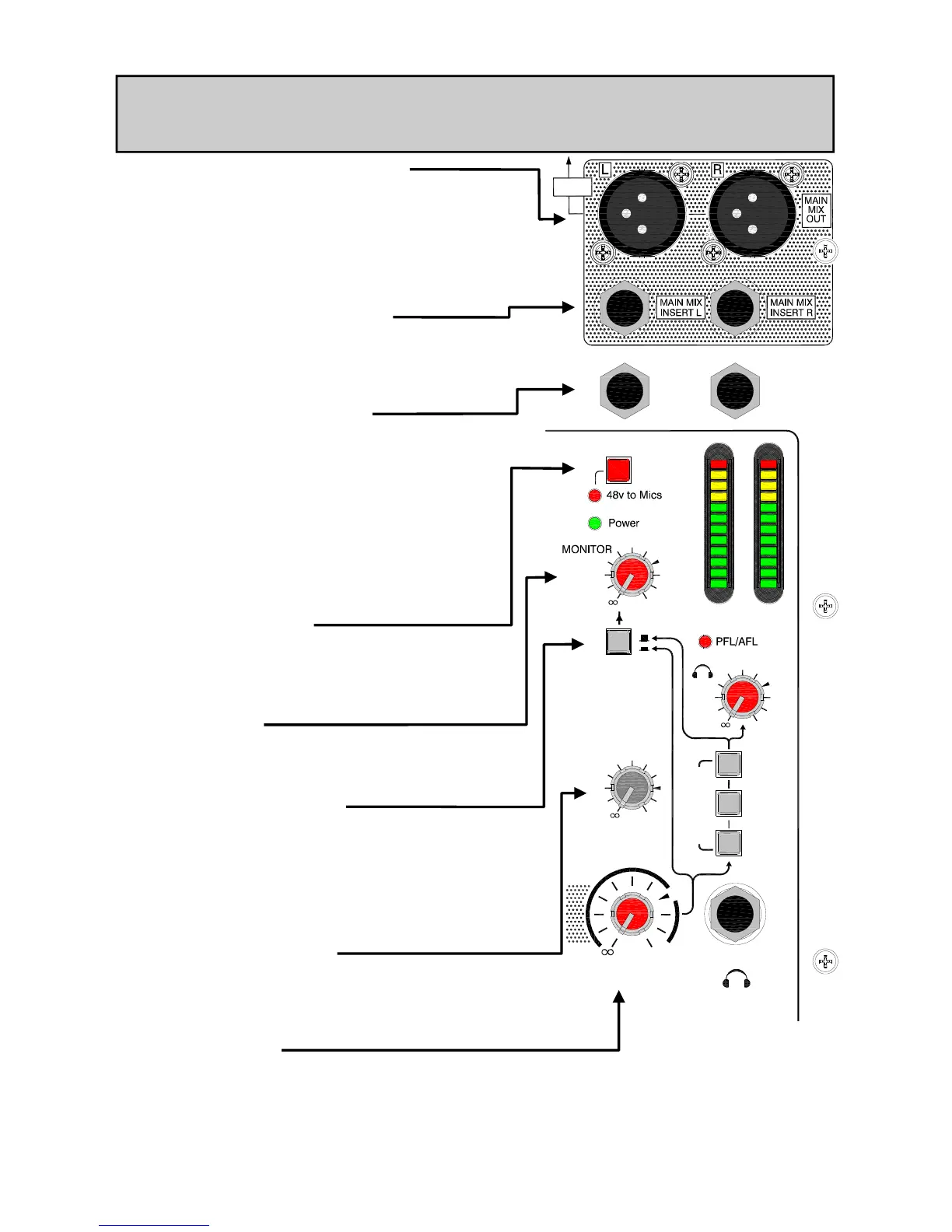

Main Mix Out XLR connectors
Standard XLR output connectors for the main ste-
reo mix. Impedance balanced to aid interference
rejection. A recessed switch on the rear panel re-
duces the level by 30dB if it is required to submix
these outputs into the XLR inputs of another mixer.
Main Mix Insert jack sockets
Standard 1/4” (6.25mm) jack sockets wired:
Tip = send, Ring = return, Sleeve = Chassis. Nominal
level is 0dBu.
Effects & Aux bus Outputs
Standard 1/4” (6.25mm) jack sockets wired:
Tip = hot, Ring = cold, Sleeve = Chassis. Nominal
level is 0dBu.
The FX out is the Effects bus output, and can be
used for connecting to external equipment such
as an effects processor.
The AUX out is taken from after the AUX MIX
master level control.
48v to Microphones
Switches industry standard 48v (phantom power)
to all 4 microphone inputs for use with con-
denser microphones.
Monitor Level
Controls the volume of the stereo monitor out-
puts from off (fully attenuated) to +10dB of gain.
Monitor Source switch
This allows the stereo monitor outputs (RCA
phonos) to be sourced either from the headphone
monitor selection, or from the main stereo mix.
Useful for splitting the functions of the stereo moni-
tor outputs from the headphones.
Aux Mix Level control
The master volume control for the Aux mix bus.
Adjusts the level from off (fully attenuated) to +6dB
gain.
Main Mix Level
This is the master volume control for the main ste-
reo mix. Range is from off (fully attenuated) to
+10dB of gain.
MASTER SECTION
LR
+16
-6
-9
-20
-30
-16
-12
-3
0
+3
+6
+9
Aux
+10
LEVEL
+10
+6
Source
Playback
Mix
Phones
MAIN MIX
OUT
AUX
OUT
FX
PHONES SELECT
0
0
LEVEL
AUX MIX
LEVEL
LEVEL
Record
+10
0
0
Monitor
Phones
O/P Level
Switch
