Allen-Bradley 1336 PLUS Troubleshoot Manual

Preface P–3
Publication 1336 IMPACT-6.2 – March 1998
Drive Nameplate Location
The drive nameplate is located on the face of the Main Control
Board Mounting Plate. The drive nameplate contains the drive’s
catalog number and other important drive information. Reference the
catalog number when ordering replacement parts.

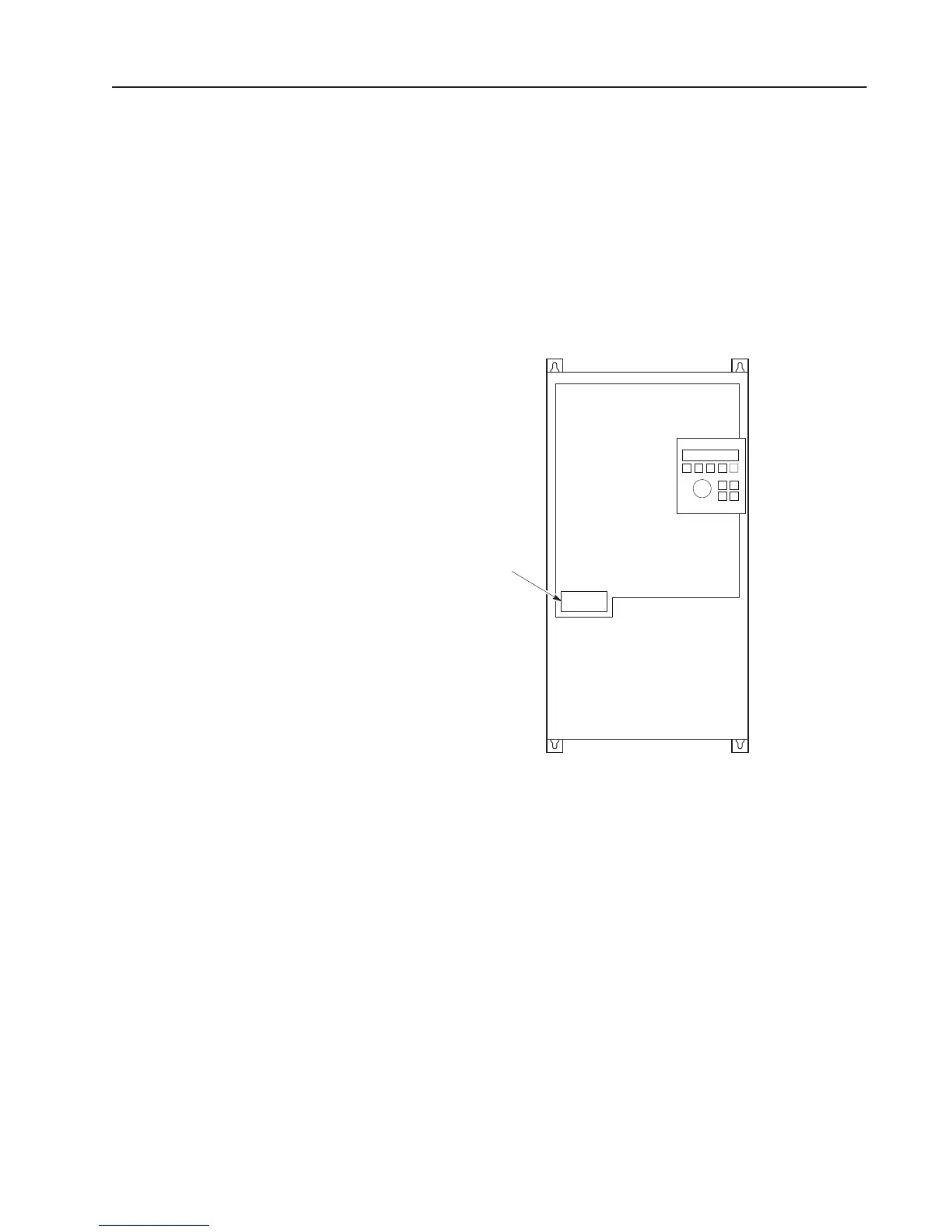

Figure P.1
Drive Nameplate Location
AB0334B
Nameplate located on tab
of Main Control Board
Mounting Plate
1336 IMPACT Product
Identification

Allen-Bradley 1336 PLUS Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Frequency	0-400 Hz
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Enclosure	NEMA 1
Output Current	Varies by model
Power Rating	Varies by model
Communication	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5 to 95% non-condensing
Control Method	Sensorless Vector
