Allen-Bradley 1336 PLUS Troubleshoot Manual

1–2 Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.2 – March 1998

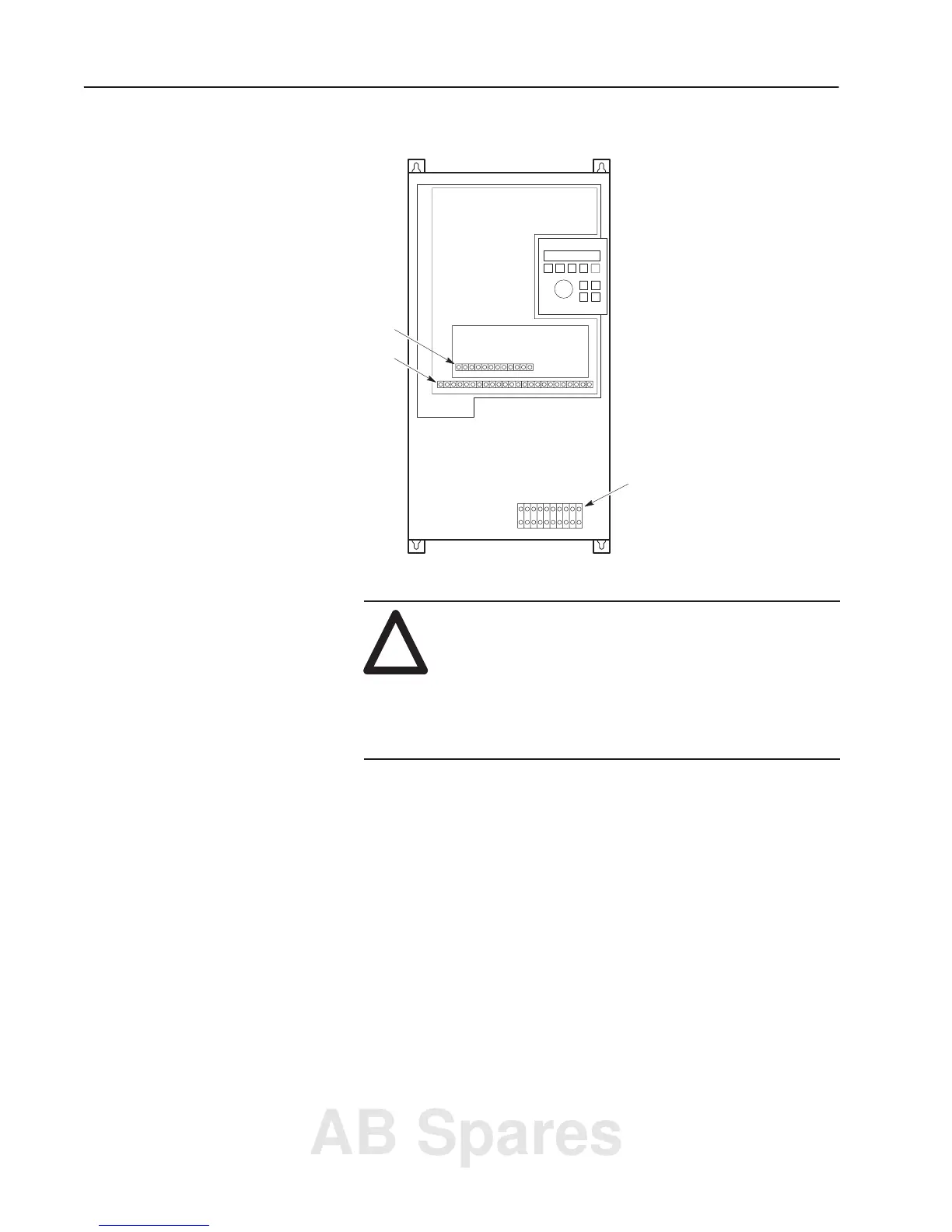

Figure 1.1
Terminal Block Locations
AB0335A
TB3
TB2
TB1
!
ATTENTION: The National Electrical Code (NEC)
and local codes outline provisions for safely installing
electrical equipment. Installation must comply with
specifications regarding wire types, conductor sizes,
branch circuit protection and disconnect devices.
Failure to do so may result in personal injury and/or
equipment damage.
The L Option Board provides a means of interfacing various signals
and commands to the 1336 IMPACT by using contact closures.
Six different versions of the L Option are available:
L4 Contact Closure Interface
1
L7E Contact Closure Interface with Encoder Feedback
1
L5 +24V AC/DC Interface
L8E +24V AC/DC Interface with Encoder Feedback
L6 115V AC Interface
L9E 115V AC Interface with Encoder Feedback
1
Uses internal +5V DC supply.
L Option Board
AB Spares

Allen-Bradley 1336 PLUS Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Frequency	0-400 Hz
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Enclosure	NEMA 1
Output Current	Varies by model
Power Rating	Varies by model
Communication	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5 to 95% non-condensing
Control Method	Sensorless Vector
