1–5Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.2 – March 1998
For local programming and control information, refer to the
1336 IMPACT User Manual.

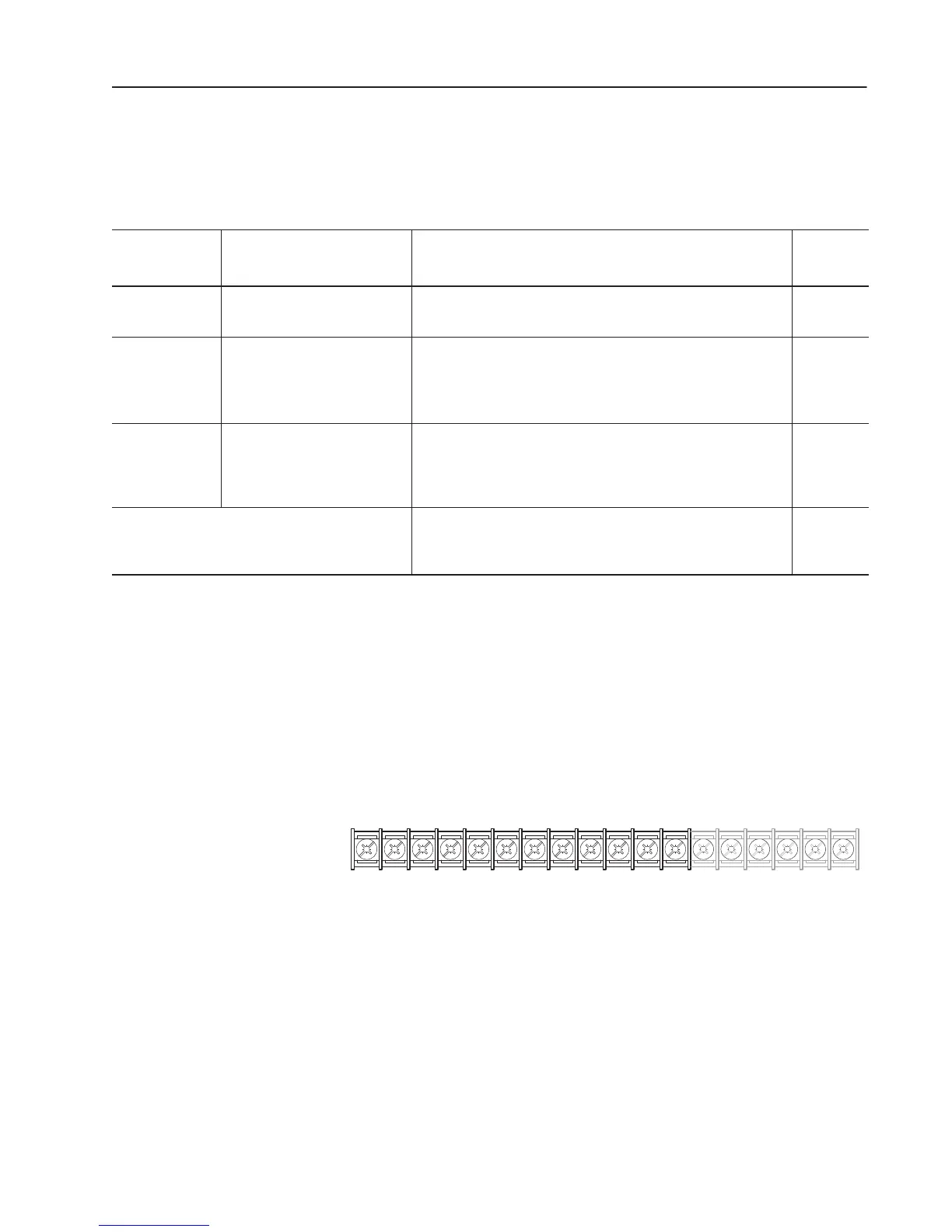

Table 1.A
L Option Mode Selection
Start/Stop
Type
Direction Control Communication Compatibility
Mode(s)
to Use
Stop & Enable
Only
None Control must be provided by HIM or Communication Option. 1
Momentary
Pushbutton
(3 Wire)
Maintained Switch
(Open-Forward,
Closed-Reverse)
Single-Source
Start/Stop – works like HIM and Communication Options. Direction
Control will not work in parallel with HIM or Communication Options.
User must select direction control from either HIM and
Communication Options or TB3 L Option.
2 – 6, 17,
18, and
27
Momentary
Pushbutton
(3 Wire)
Momentary Pushbuttons
(Forward and Reverse)
Multi-Source
Start/Stop – works in parallel with HIM and Communication Options.
Direction – works in parallel with HIM or Communication Options.
7 – 11,
19 – 22,
and 28,
29
Maintained switches for combined run and direction
control (2 wire, Run Forward, Run Reverse)
Start – works differently than three-wire control.
Direction – works differently than three-wire control.
Stop – always works.
12 – 16,
23 – 26,
and 30
Refer to two-, three-wire notes in the user manual.
Diodes 27 – 30 are available with versions 2.02 and later.
Figure 1.3 provides the terminal designations for TB3. The
maximum and minimum wire sizes accepted by TB3 is 2.1 and
0.30 mm
2
(14 and 22 AWG). Maximum torque for all terminals is
1.36 N-m (12 lb-in.). Use copper wire only.
Figure 1.3
TB3 Terminal Designations
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
Input 1
Input 2 (Stop)
Common
Input 3
Input 4
Input 5
Common
Input 6
Input 7
Input 8
Common
Enable
Encoder B
Encoder NOT A
Encoder NOT B
Encoder A
+12V (200mA max.)
Encoder Common
AB0293B
Included on L7E, L8E, & L9E Only
