Publication 1734-UM014A-EN-P - November 2010
Adapter Web Dialogs 93
1. Click Network from the tab at the top of the page or panel on the left.

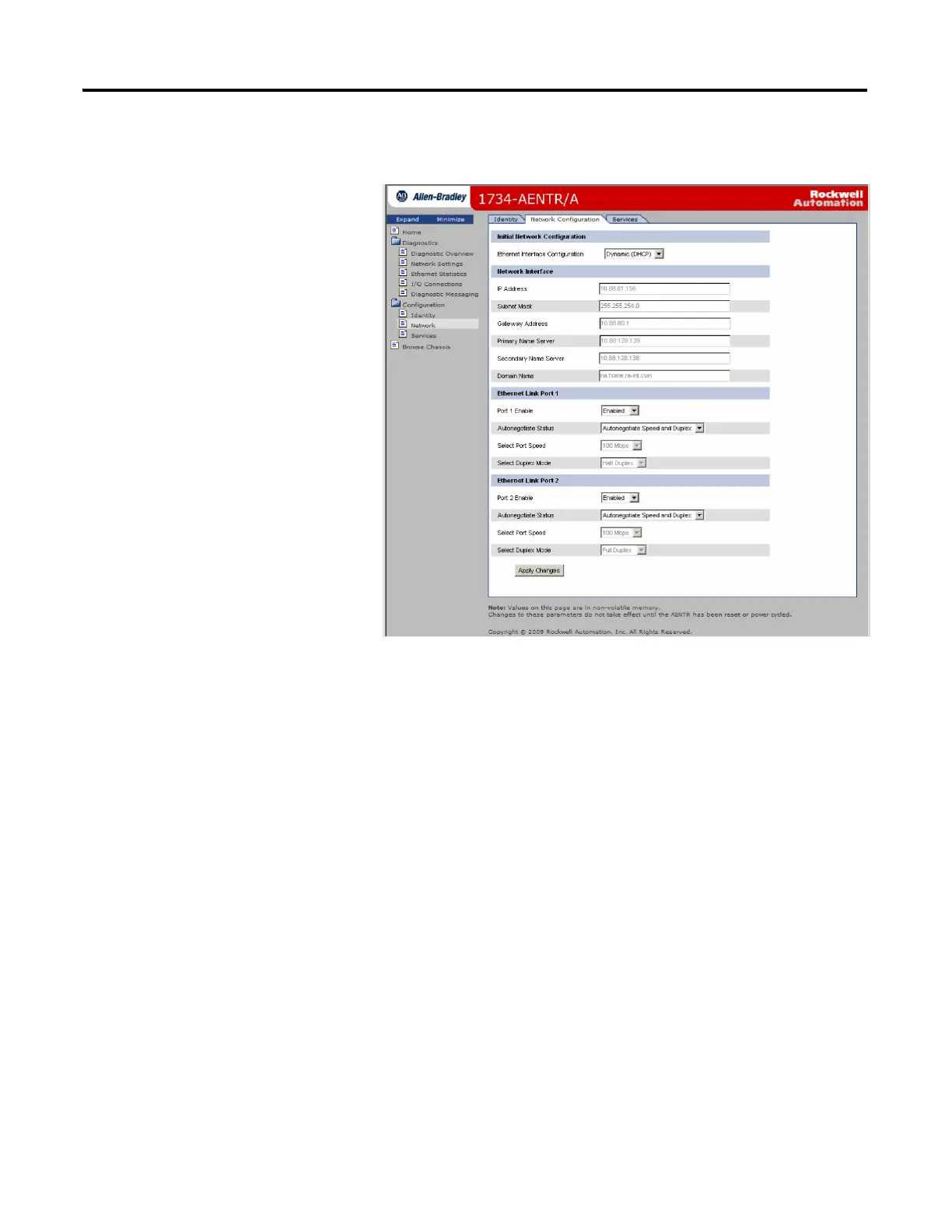

The Network Configuration page opens.
2. From the Network Configuration page, complete these entries, noting
that values for Network Interface are disabled when DHCP is
Dynamic DHCP and port speed and duplex mode are disabled when
Autonegotiate Speed and Duplex is selected.
• For Initial Network Configuration:
– Ethernet Interface Configuration
- Static
- Dynamic DHCP
• For Network Interface, select from these choices:
– IP Address
– Subnet Mask
– Gateway Address
– Primary Name Server
– Secondary Name Server
– Domain Name
• For Ethernet Link, select from these choices:
– Autonegotiate Status
- Autonegotiate Speed and Duplex
- Force Speed and Duplex
– Select Port Speed - 10 megabits, 100 megabits
– Select Duplex Mode - Half Duplex, Full Duplex
