Configure the Adapter for Direct Connection in RSLogix 5000 Software 45

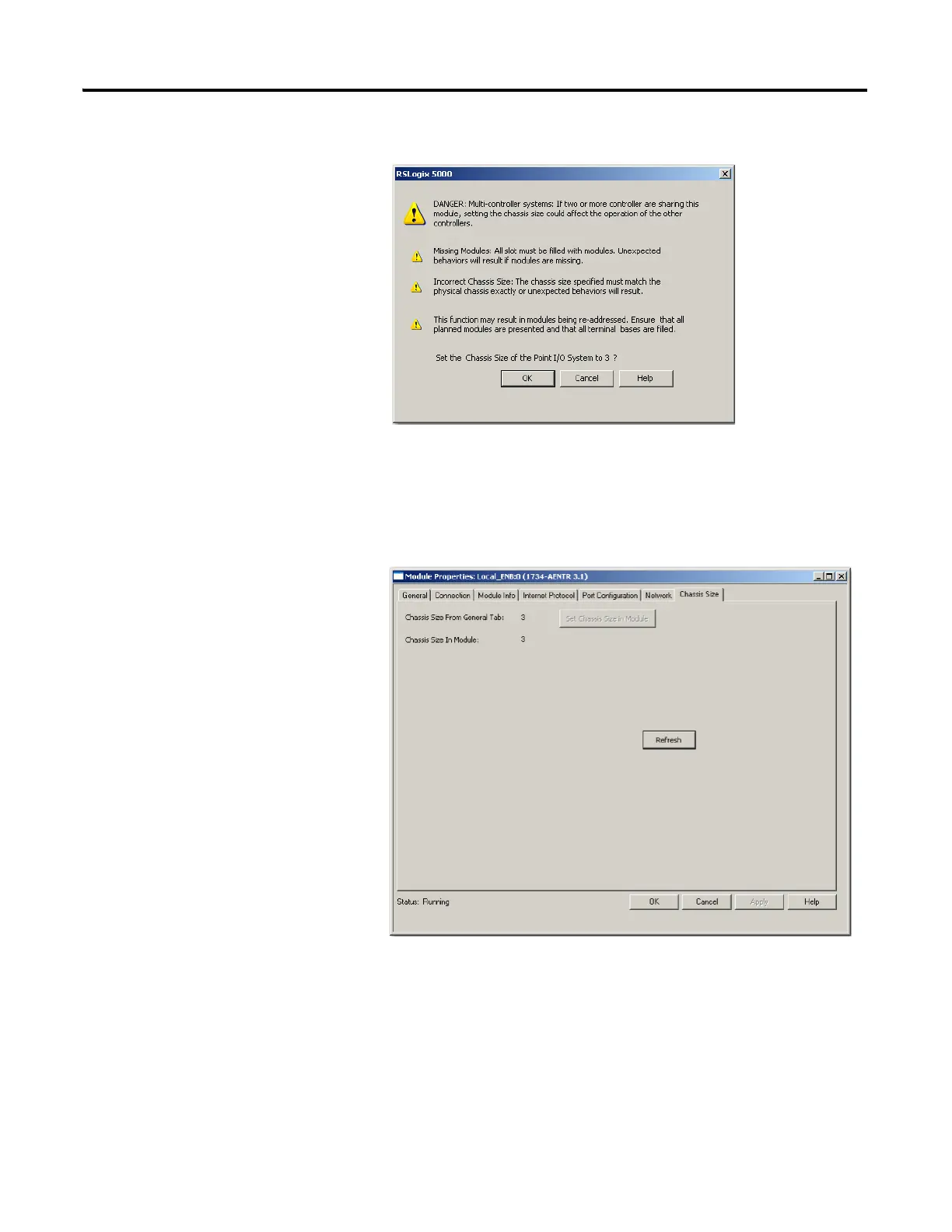

7. Read and acknowledge the warning dialog.
8. Click OK to continue.
Notice the chassis size stored in the module has been changed to 3.
At this point, your POINTBus status LED should be solid green. All
the yellow triangles in your I/O configuration should be gone.
9. Click OK.
Configure the Adapter with
Fixed IP Address
To configure the adapter with a fixed IP address to prevent the adapter from
ceasing to communicate with the ControlLogix controller:
1. All controllers with I/O connections to the AENTR and/or the
modules in its backplane need to be in program mode.
