Allen-Bradley 1734-AENTR - Verify the Module Chassis Size

Publication 1734-UM014A-EN-P - November 2010
44 Configure the Adapter for Direct Connection in RSLogix 5000 Software

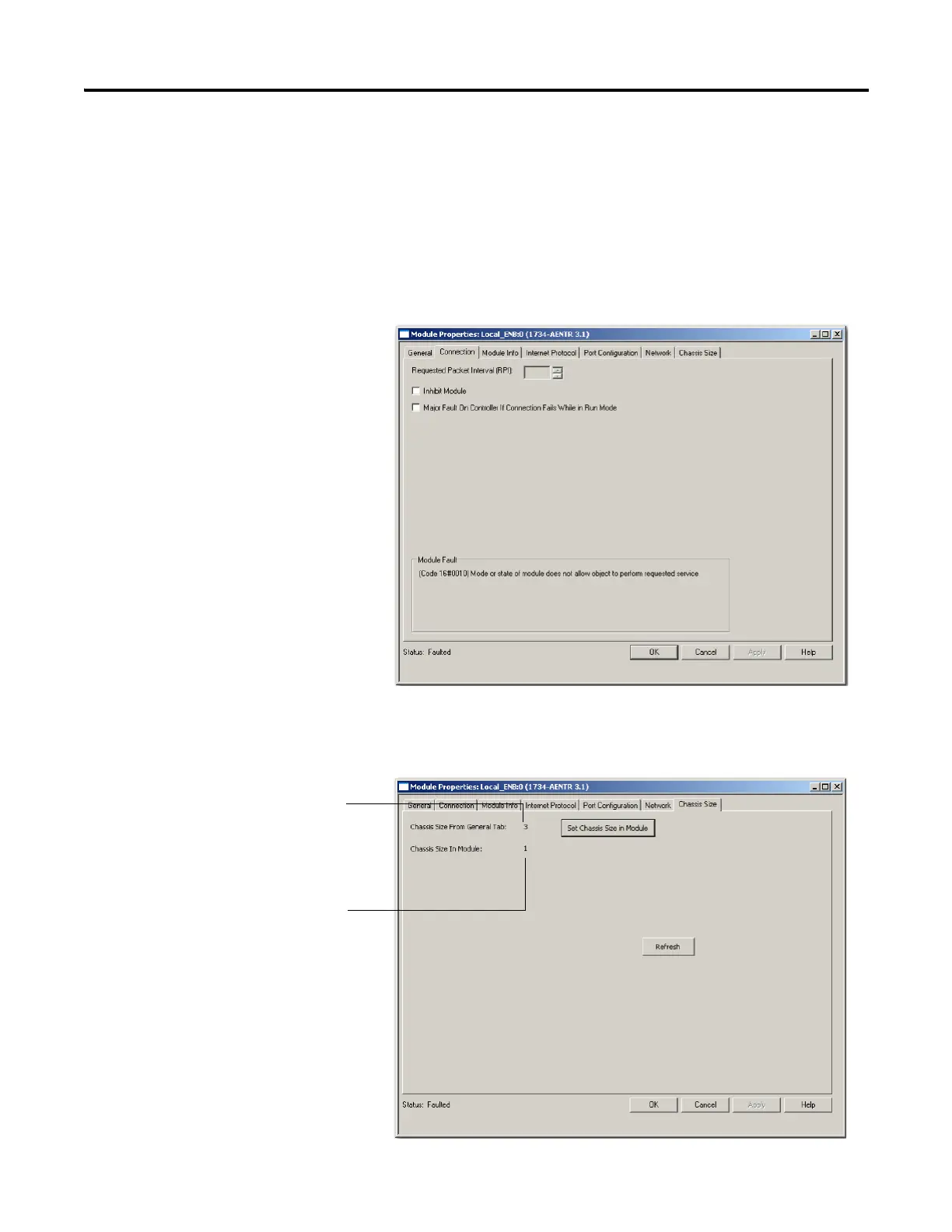

1. Verify that the RSLogix 5000 software is online.
2. In the Project dialog, right-click the 1734-AENTR adapter under I/O
Configuration.
3. Select Properties.
4. Click the Connection tab.
The Module Fault error code displays.
5. Click the Chassis Size tab.
6. Click Set Chassis Size in Module.
Value from
Module Properties
General Tab
Value currently
stored in
1734-AENTR
adapter
