Allen-Bradley 1734-AENTR User Manual

Publication 1734-UM014A-EN-P - November 2010
40 Configure the Adapter for Direct Connection in RSLogix 5000 Software

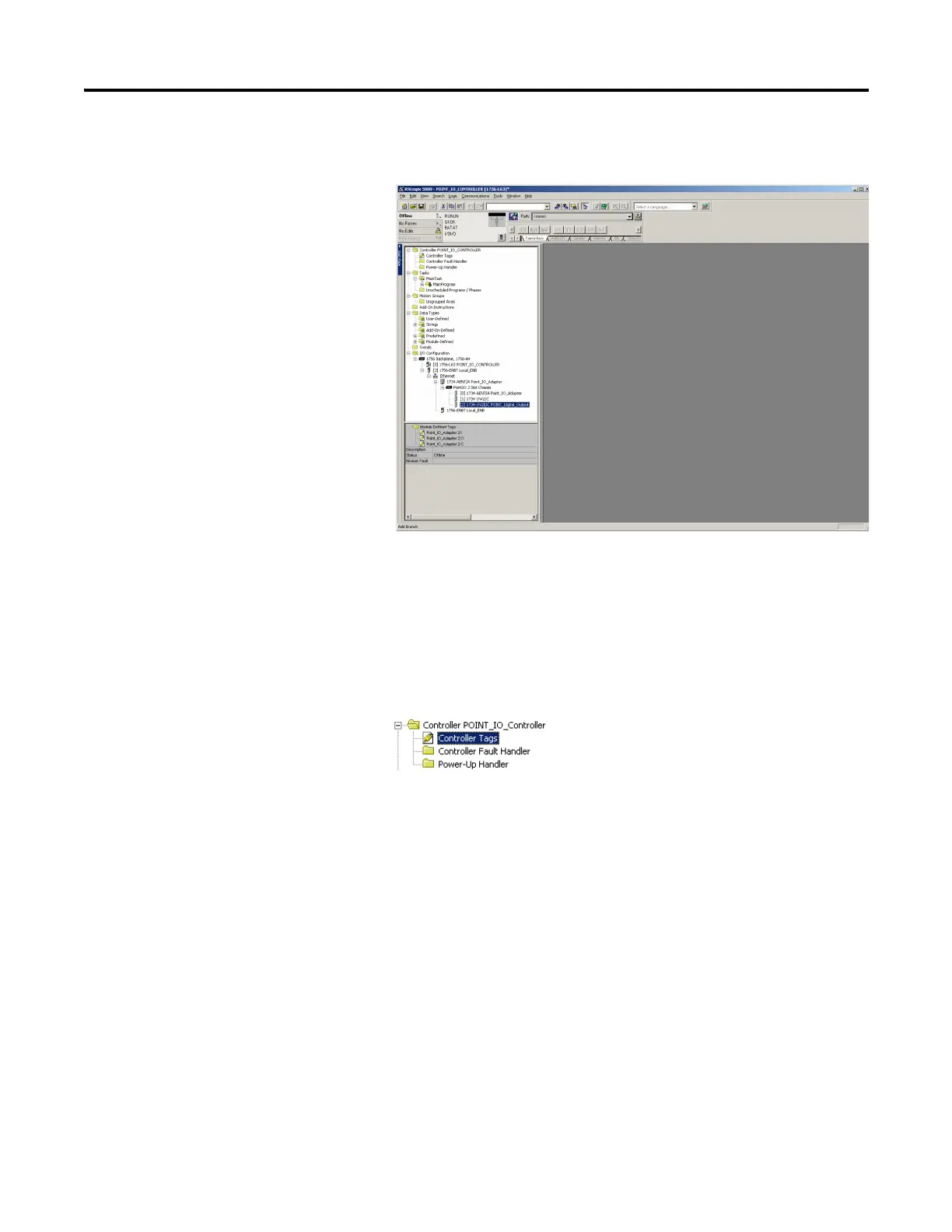

The I/O Configuration in the Project dialog should look similar to the
following
Edit the Controller Tags
When you add modules to the I/O configuration the system creates tags for
those modules to use in the application program.
For the example application you need to add one more controller tag.
1. Double-click the Controller Tags folder in the project dialog.
