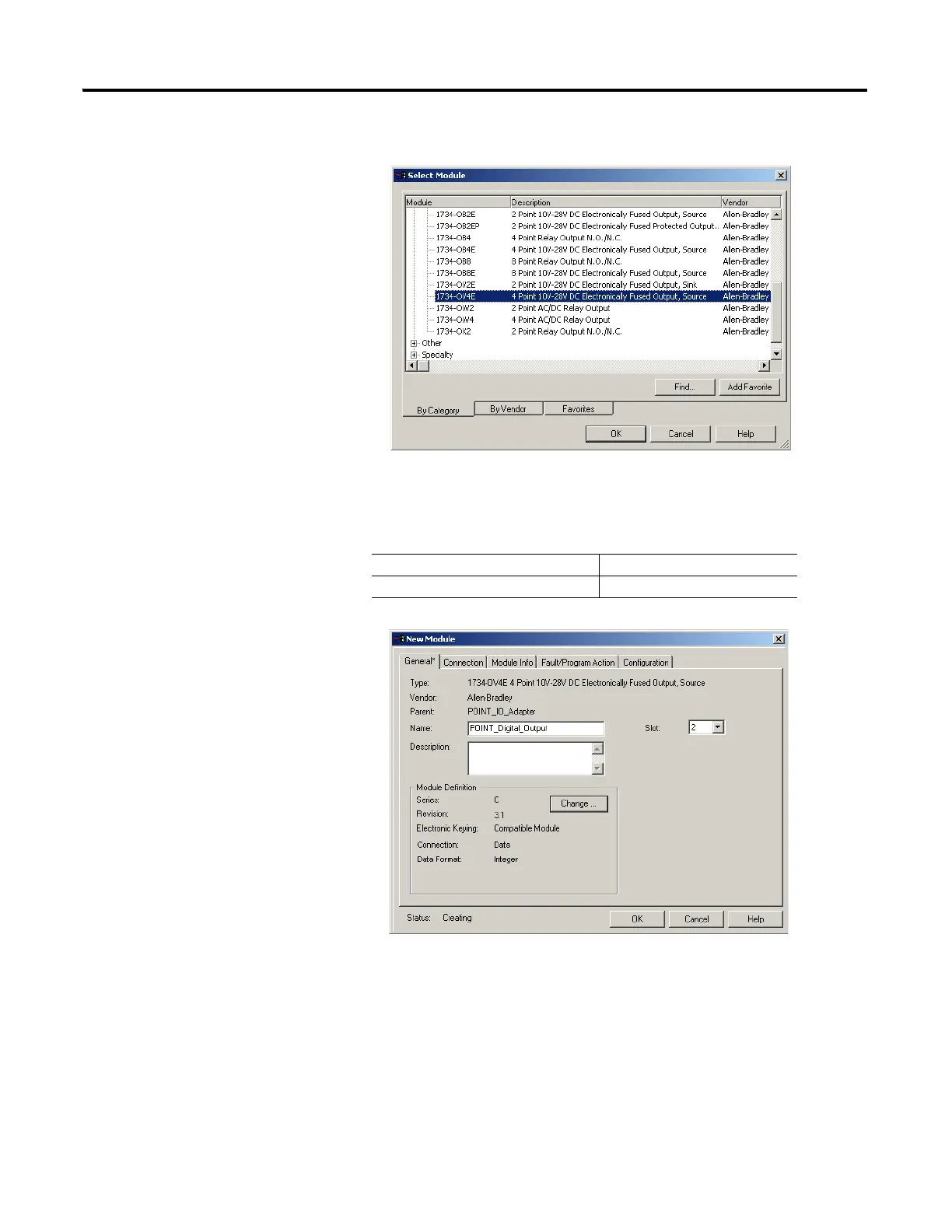

Configure the Adapter for Direct Connection in RSLogix 5000 Software 39
2. Select the 1734-OV4E digital output module from the list.
3. Click OK.
The New Module dialog opens.
Enter values for Name and Slot, noting we used the following.
4. On the Connection tab, enter 10 ms as the RPI for the 1734-OV4E
module.
5. Click OK.
Name POINT_Digital_Output
Slot 2
