Adapter Web Dialogs 89
• Lost/Slot that shows the number of lost packets and the slot number
for the connection, with a slot value of 0 indicating that this is a
rack-optimized connection
• Size of data in bytes
Use the Diagnostic Messaging Page
To use the Diagnostic Messaging page to execute explicit, unconnected
message services, use this procedure.
1. Click Diagnostic Messaging from the tab at the top of the page or panel
on the left.

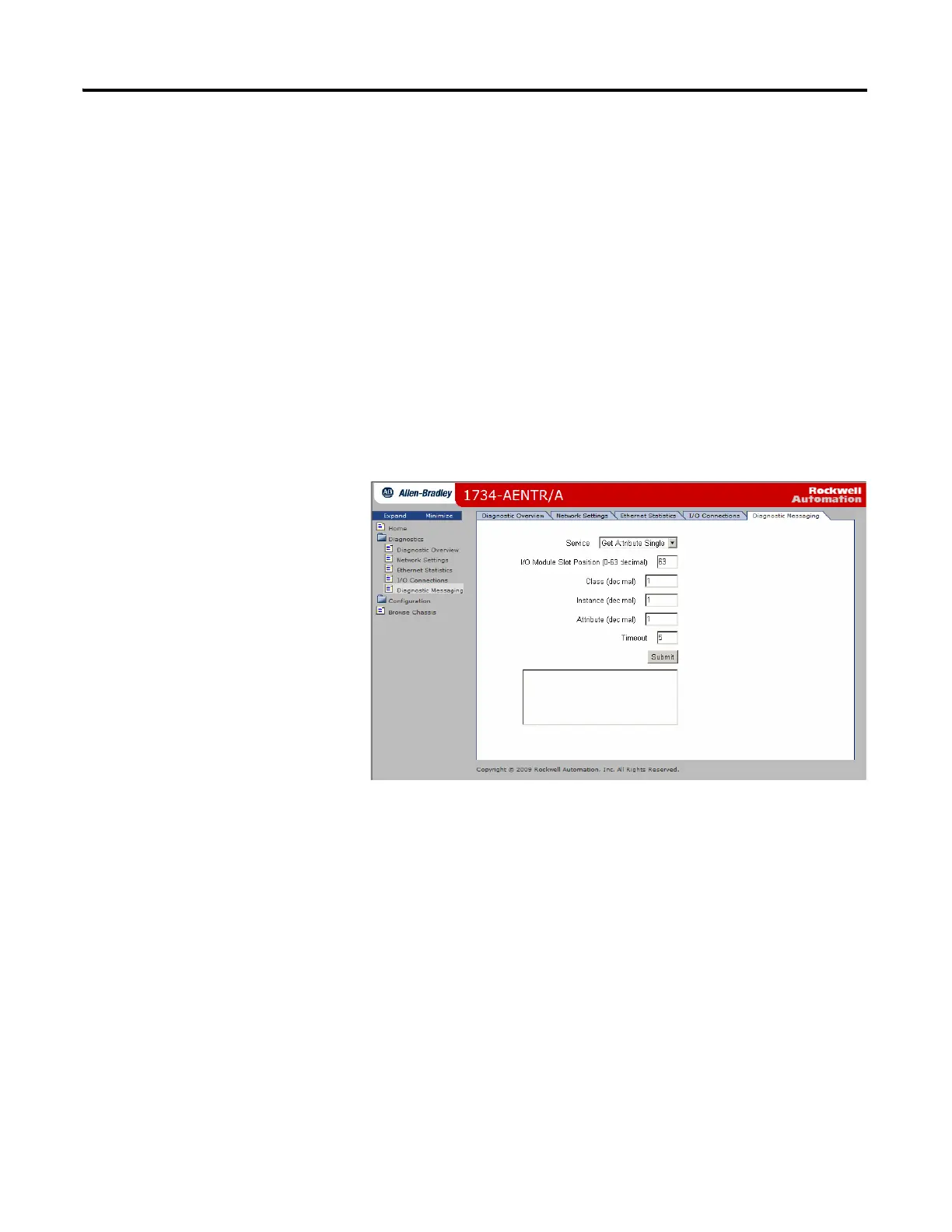

The Diagnostic Messaging page opens.
2. From the Diagnostic Messaging page, enter the following:
• Service – choose either Get Attribute Single or Get Attributes All
• I/O Module Slot Position (0 to 63 decimal)
• Class (decimal)
• Instance (decimal)
• Attribute (decimal)
•Timeout
