Publication 1734-UM014A-EN-P - November 2010
62 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software
5. For Connection, select Data.
This configures the controller to make a Direct I/O Connection to the
module.
6. Click OK.

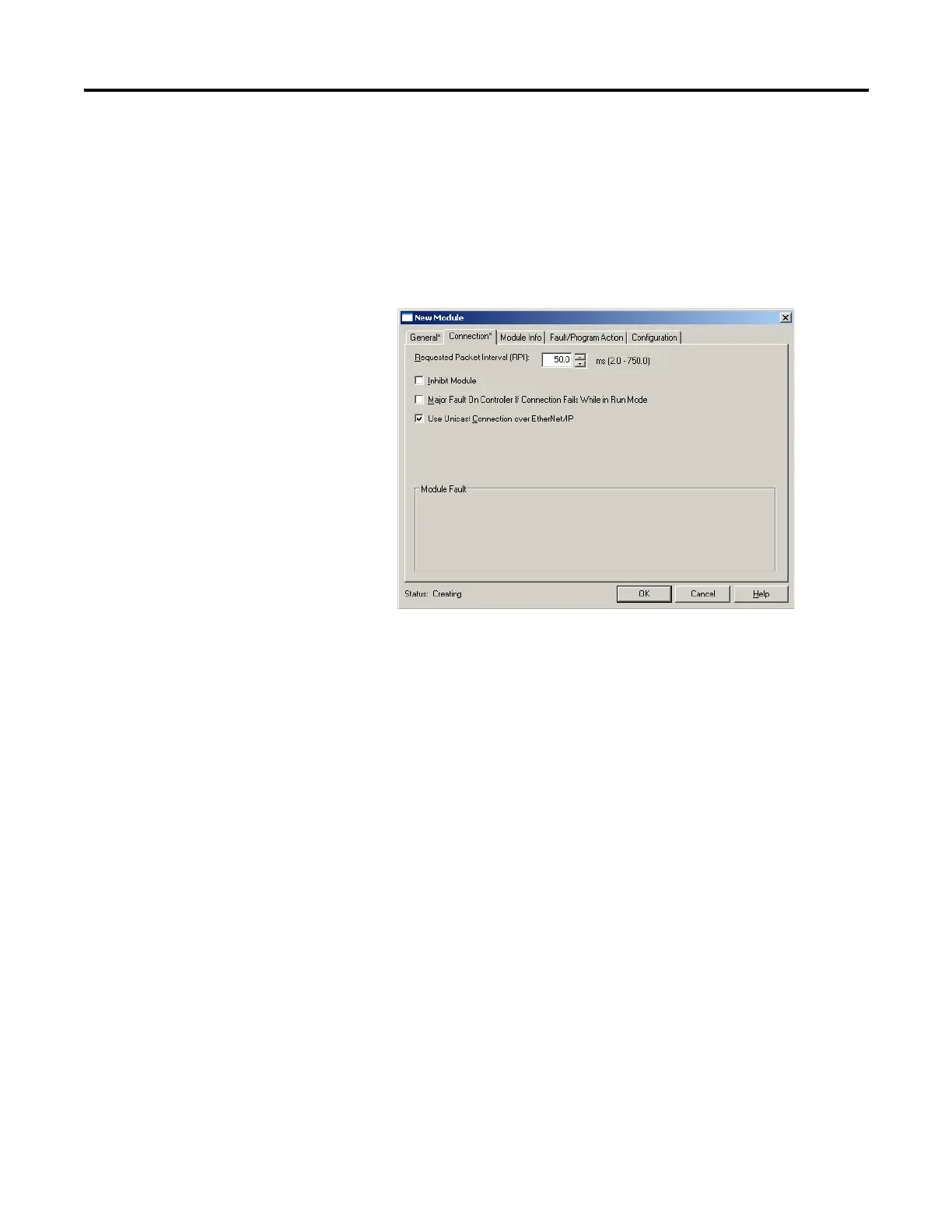

7. From the New Module dialog, click the Connection tab.
The New Module dialog opens.
8. From the New Module dialog, enter 50 for the Requested Packet
Interval (RPI).
9. Keep the following unchecked.
a. Inhibit Module
b. Major Fault on Controller If Connection fails While in Run Mode
10. Click OK.
11. Choose File → Save and enter the name and location of the file.
Download the Program to
the Controller
Follow this procedure to download the program we just saved to the
ControlLogix controller.
1. From the main menu, choose Communications>Who Active.
