Allen-Bradley 1734-AENTR User Manual

Publication 1734-UM014A-EN-P - November 2010

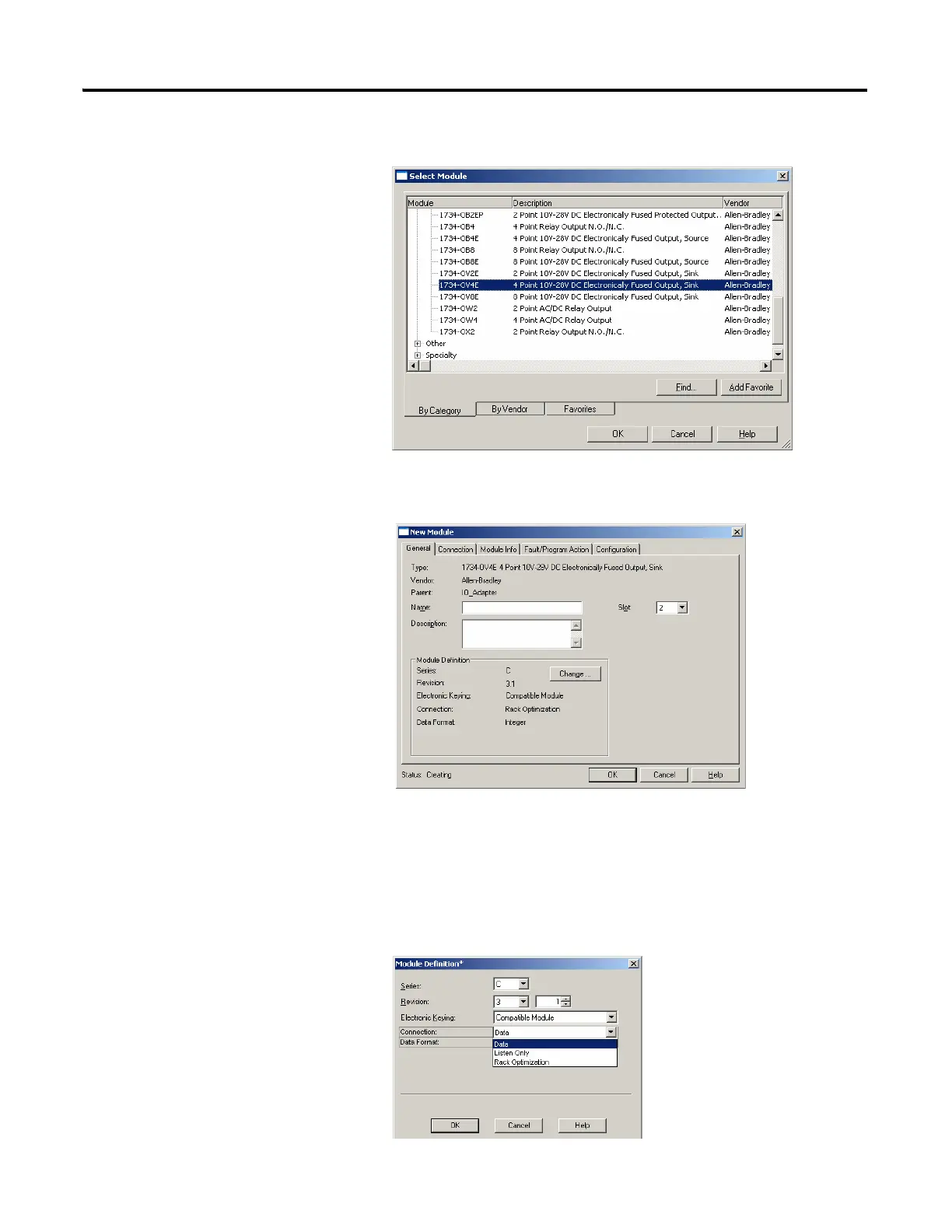

Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software 61
2. Expand the Digital tree.
3. Choose the 1734-OV4E/C module and click OK.
The New Module dialog opens.
.
4. From the New Module dialog, complete the following:
– Enter a value for Name.
– Enter a value for Slot.
– Click Change to modify the module definition values.
The Module Definition dialog opens.
