Publication 1734-UM014A-EN-P - November 2010
28 Configure the Adapter for Direct Connection in RSLogix 5000 Software

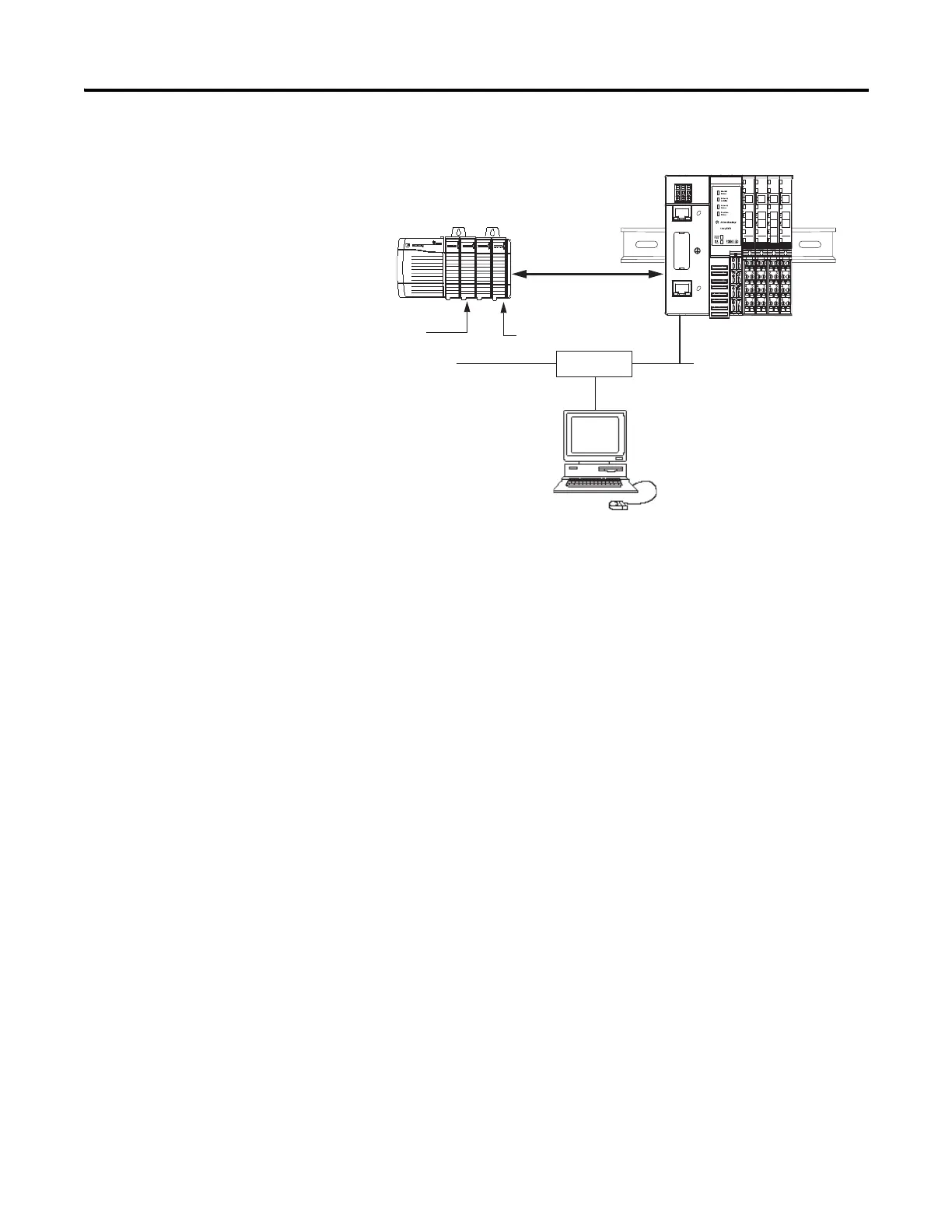

To work along with this example, set up your system as shown in the figure.
• In the example application, we assume that the L63 controller and
1756-ENBT module (firmware revision 2.3, or later) are in the slots
shown in the figure.
• Verify the IP addresses for your programming terminal, 1756-ENBT
module, and adapter.
• Verify the position (slot) of the I/O modules on the DIN rail.
• Verify that you connected all wiring and cabling properly.
• Be sure you configured your communication driver (for example,
AB_ETH-1 or AB-ETHIP-1) in RSLinx software, as described in
Appendix C of this manual.
Local
chassis
POINT I/O
L63
controller (slot 1)
1756-ENBT
10.88.70.4 (slot 3)
Data
Switch
10.88.70.26
Programming
terminal
Slot 0 1 2 3
1734-AENTR
10.88.70.2
Slot 0 1 2 3 4
Link 1
Activity/
Status
Link 2
Activity/
Status
To Next Page
