Allen-Bradley 1734-AENTR User Manual

Publication 1734-UM014A-EN-P - November 2010
Configure the Adapter for Direct Connection in RSLogix 5000 Software 31

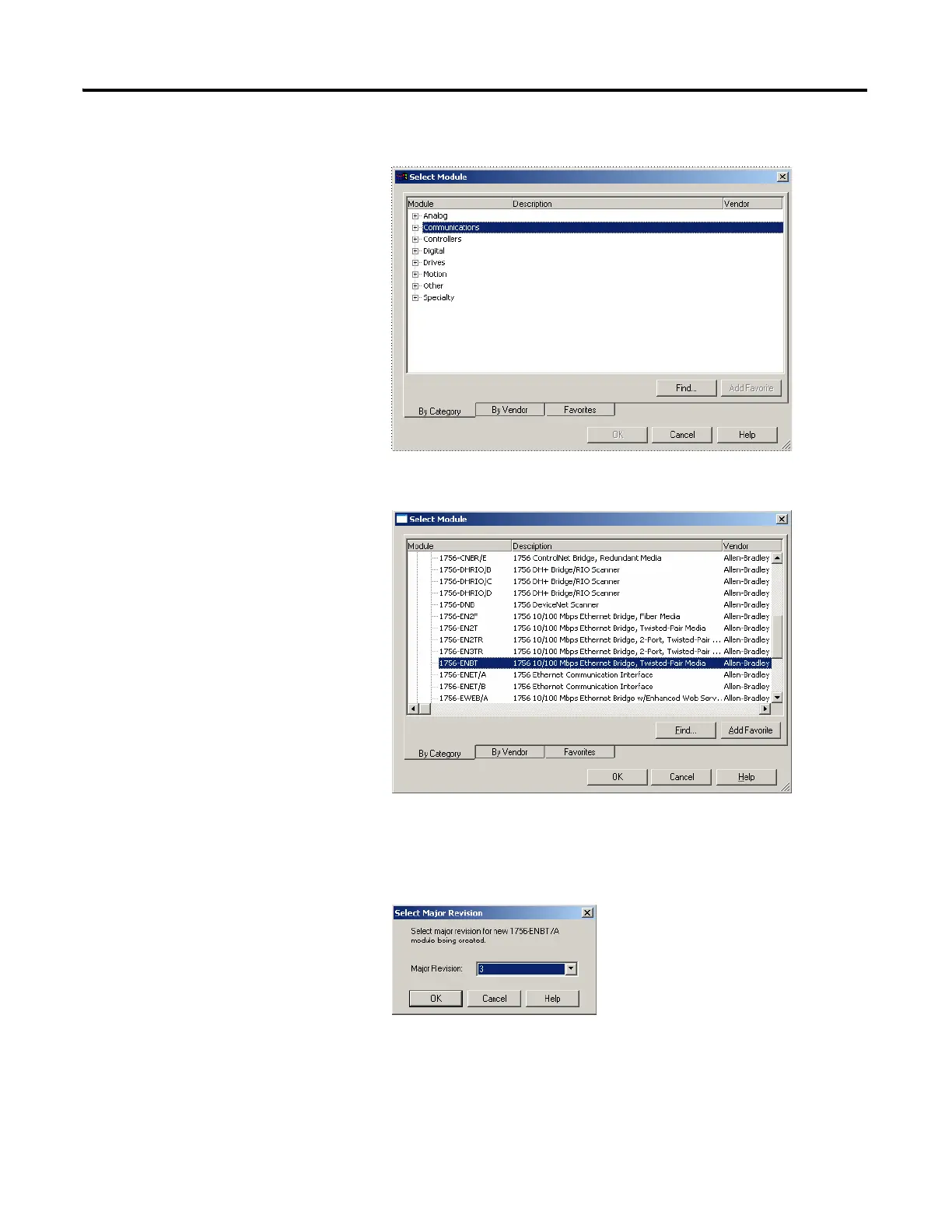

The Select Module dialog opens.
3. Expand the Communications tree as in the following dialog.
4. Select the 1756-ENBT EtherNet/IP Bridge and click OK.
The Select Major Revision dialog opens.
5. Select the number for Major Revision and click OK.
