Configure the Adapter for Direct Connection in RSLogix 5000 Software 37

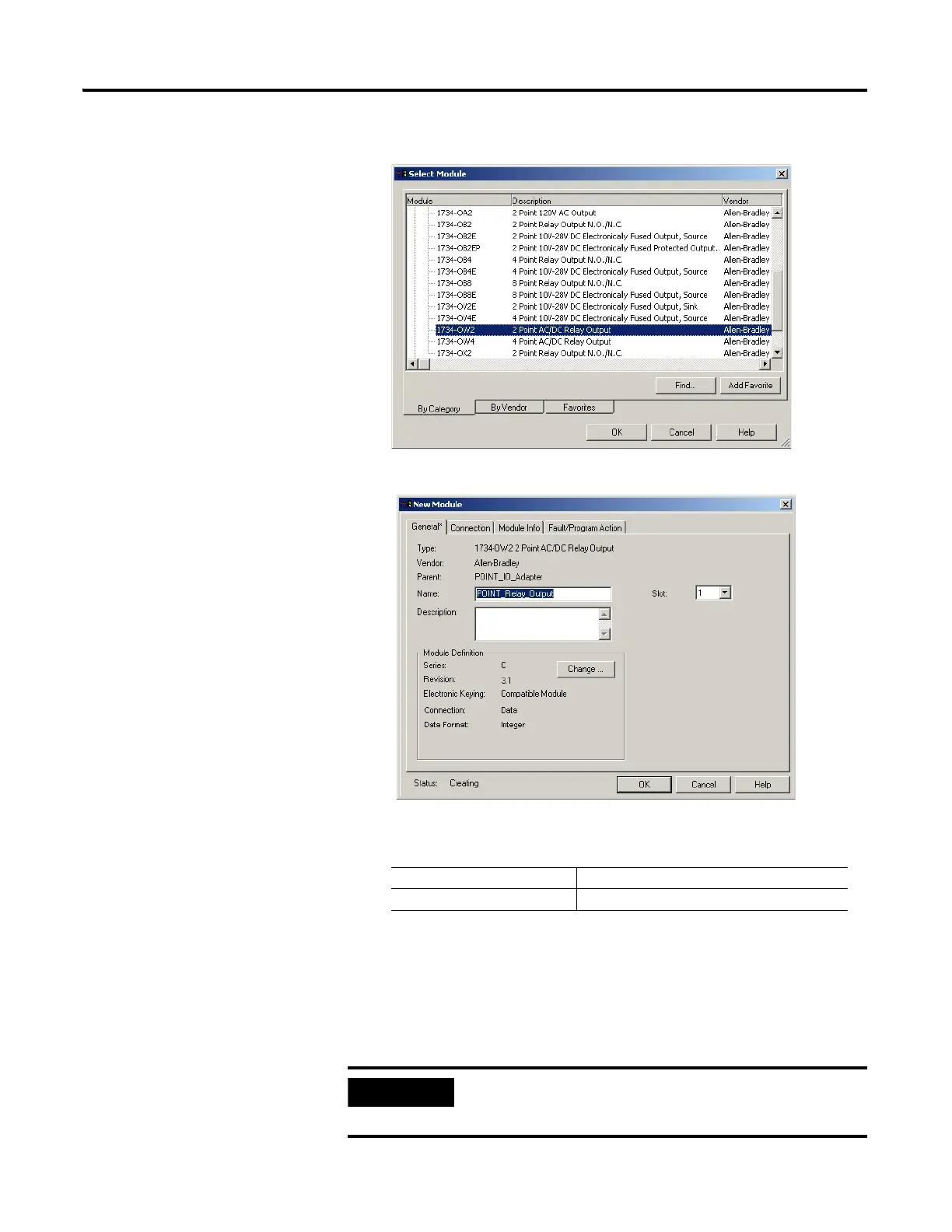

3. Select the 1734-OW2 relay output module from the list and click OK.
The New Module dialog opens.
4. Enter values for Name and Slot, noting that we used the following
values.
5. Choose Connection.
The RPI is selectable since it is a direct connection.
6. Enter 50 for requested packet interval (RPI) to set how often you
exchange data with the I/O adapters.
Name POINT_Relay_Output
Slot 1
To avoid overloading the I/O adapters, we recommend that RPI be no
less than 10 ms for rack connections and 50 ms for direct
connections.
