Allen-Bradley 1734-IE2C User Manual

POINT I/O 2 Current and 2 Voltage Input Analog Modules 15
Publication 1734-IN027C-EN-E - October 2016
Interpret Status Indicators

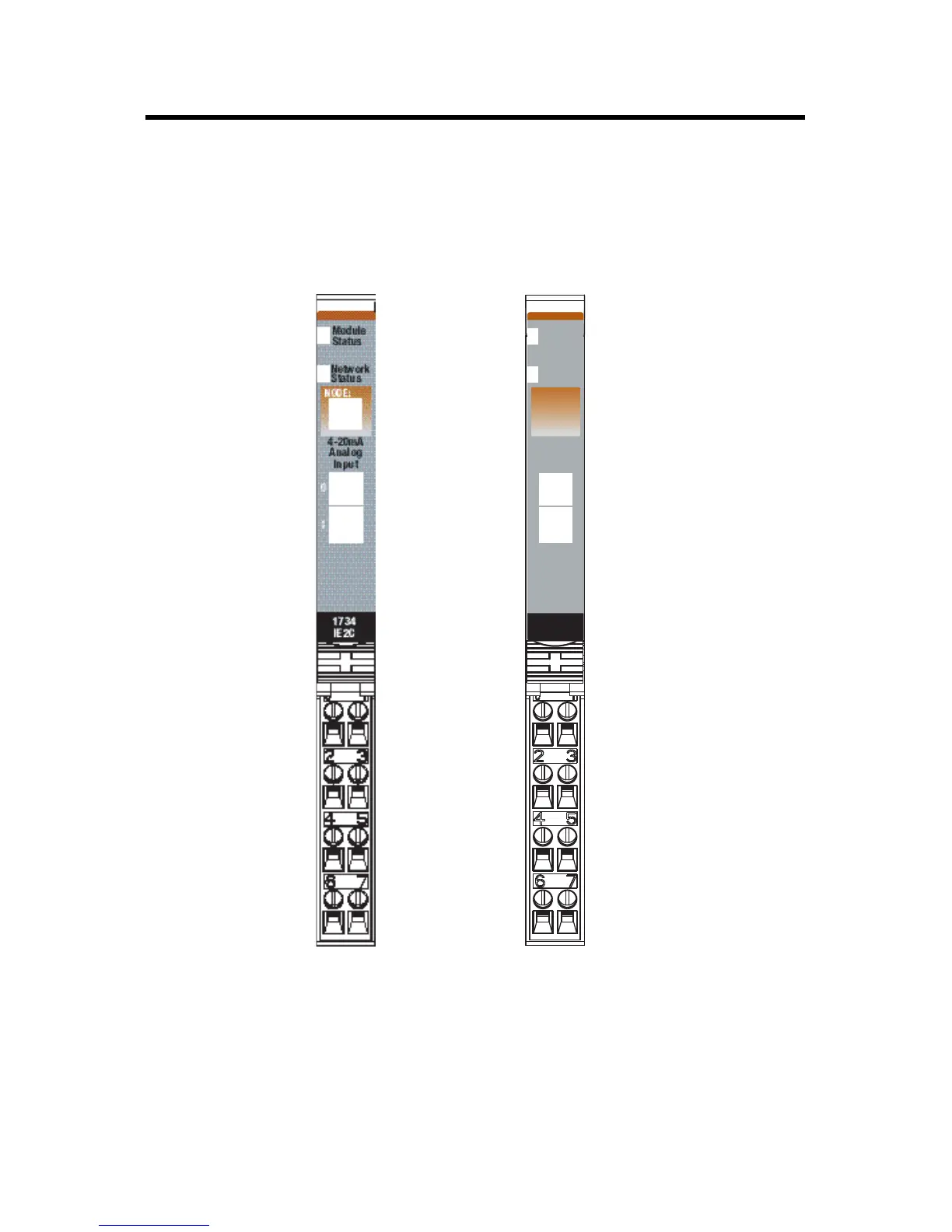

Refer to the following diagram and table for information on how to interpret the
status indicators.
Module status
Network status
Status of input 0
Status of input 1
41974
Analog
Voltage
Input
Module
Status
Network
Status
1734
IE2V
NODE:
0
1
1734-IE2C 1734-IE2V
